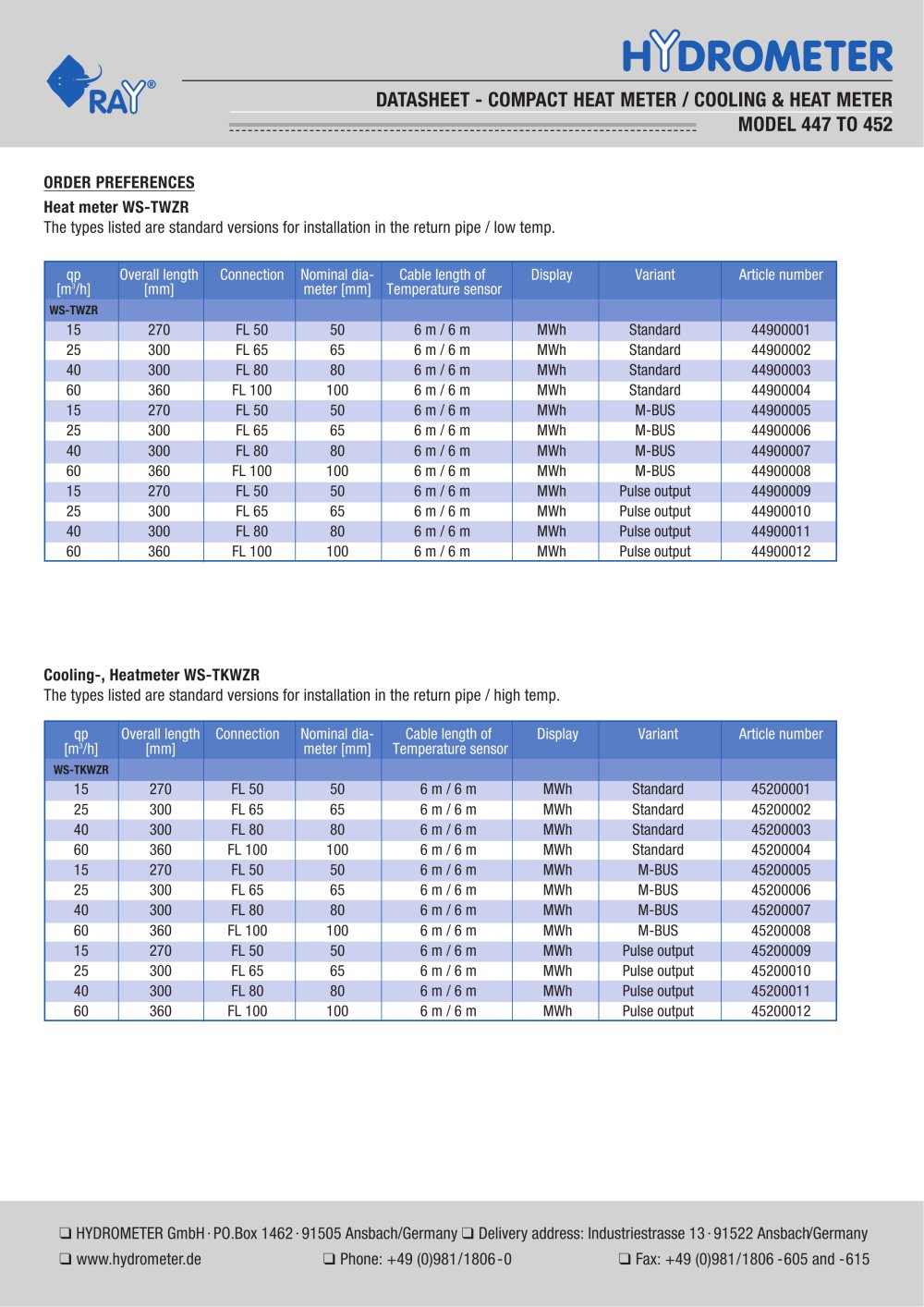

ORDER PREFERENCES Heat meter WS-TWZR The types listed are standard versions for installation in the return pipe / low temp. Cooling-, Heatmeter WS-TKWZR The types listed are standard versions for installation in the return pipe / high temp. DATASHEET - COMPACT HEAT METER / COOLING & HEAT METER MODEL 447 TO 452 qp Overall length Connection Nominal dia- Cable length of Display Variant Article number [m3/h] [mm] meter [mm] Temperature sensor WS-TWZR 15 270 FL 50 50 6 m / 6 m MWh Standard 44900001 25 300 FL 65 65 6 m / 6 m MWh Standard 44900002 40 300 FL 80 80 6 m / 6 m MWh Standard 44900003 60 360 FL 100 100 6 m / 6 m MWh Standard 44900004 15 270 FL 50 50 6 m / 6 m MWh M-BUS 44900005 25 300 FL 65 65 6 m / 6 m MWh M-BUS 44900006 40 300 FL 80 80 6 m / 6 m MWh M-BUS 44900007 60 360 FL 100 100 6 m / 6 m MWh M-BUS 44900008 15 270 FL 50 50 6 m / 6 m MWh Pulse output 44900009 25 300 FL 65 65 6 m / 6 m MWh Pulse output 44900010 40 300 FL 80 80 6 m / 6 m MWh Pulse output 44900011 60 360 FL 100 100 6 m / 6 m MWh Pulse output 44900012 qp Overall length Connection Nominal dia- Cable length of Display Variant Article number [m3/h] [mm] meter [mm] Temperature sensor WS-TKWZR 15 270 FL 50 50 6 m / 6 m MWh Standard 45200001 25 300 FL 65 65 6 m / 6 m MWh Standard 45200002 40 300 FL 80 80 6 m / 6 m MWh Standard 45200003 60 360 FL 100 100 6 m / 6 m MWh Standard 45200004 15 270 FL 50 50 6 m / 6 m MWh M-BUS 45200005 25 300 FL 65 65 6 m / 6 m MWh M-BUS 45200006 40 300 FL 80 80 6 m / 6 m MWh M-BUS 45200007 60 360 FL 100 100 6 m / 6 m MWh M-BUS 45200008 15 270 FL 50 50 6 m / 6 m MWh Pulse output 45200009 25 300 FL 65 65 6 m / 6 m MWh Pulse output 45200010 40 300 FL 80 80 6 m / 6 m MWh Pulse output 45200011 60 360 FL 100 100 6 m / 6 m MWh Pulse output 45200012 q HYDROMETER GmbH · PO.Box 1462 · 91505 Ansbach/Germany q Delivery address: Industriestrasse 13 · 91522 Ansbach/Germany q www.hydrometer.de q Phone: +49 (0)981/1806-0 q Fax: +49 (0)981/1806 -605 and -615
