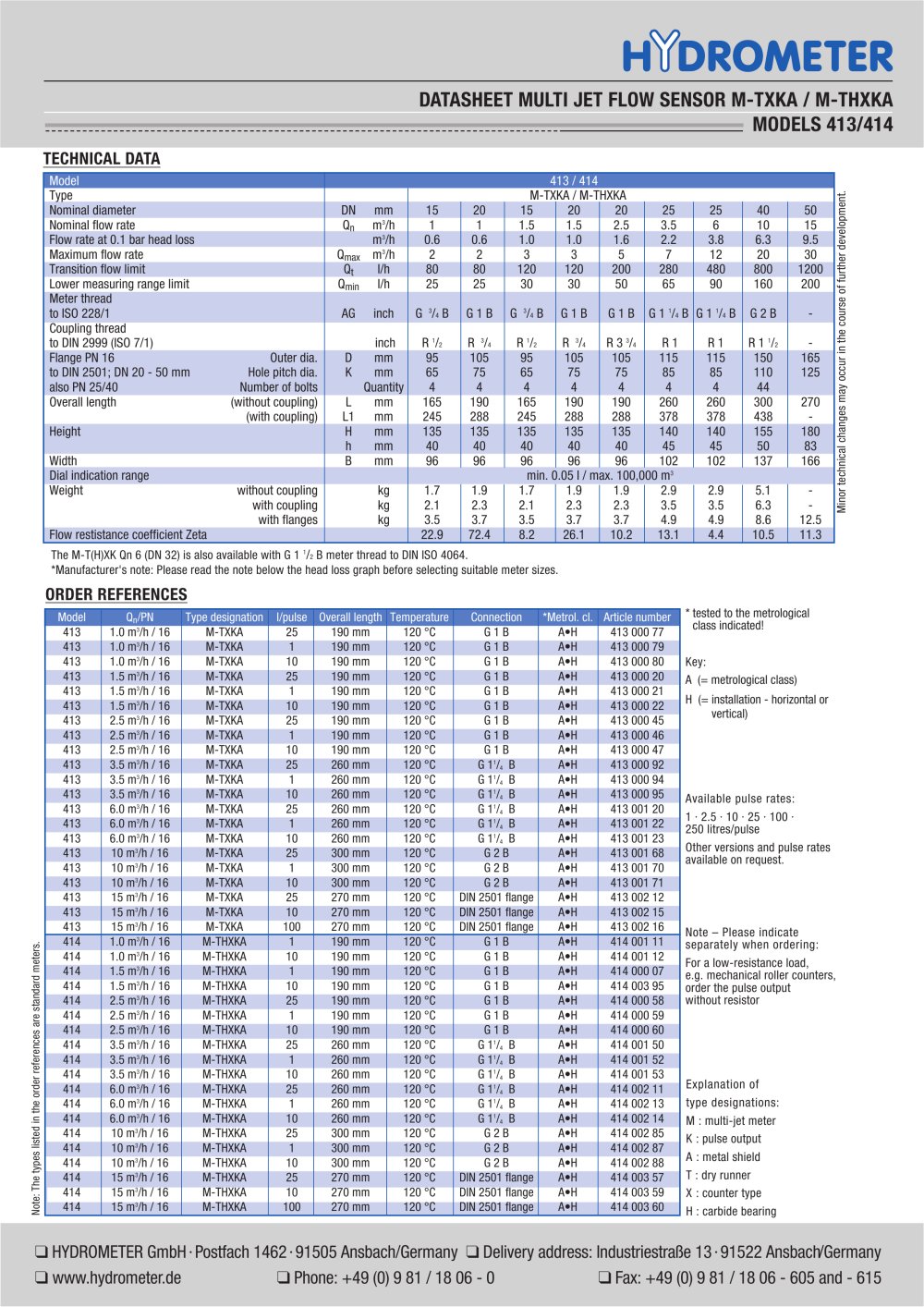

DATASHEET MULTI JET FLOW SENSOR M-TXKA / M-THXKA MODELS 413/414 q HYDROMETER GmbH·Postfach 1462·91505 Ansbach/Germany q Delivery address: Industriestraße 13·91522 Ansbach/Germany q www.hydrometer.de q Phone: +49 (0) 9 81 / 18 06 - 0 q Fax: +49 (0) 9 81 / 18 06 - 605 and - 615 TECHNICAL DATA Model 413 / 414 Type M-TXKA / M-THXKA Nominal diameter DN mm 15 20 15 20 20 25 25 40 50 Nominal flow rate Qn m3/h 1 1 1.5 1.5 2.5 3.5 6 10 15 Flow rate at 0.1 bar head loss m3/h 0.6 0.6 1.0 1.0 1.6 2.2 3.8 6.3 9.5 Maximum flow rate Qmax m3/h 2 2 3 3 5 7 12 20 30 Transition flow limit Qt l/h 80 80 120 120 200 280 480 800 1200 Lower measuring range limit Qmin l/h 25 25 30 30 50 65 90 160 200 Meter thread to ISO 228/1 AG inch G 3/4 B G 1 B G 3/4 B G 1 B G 1 B G 1 1/4 B G 1 1/4 B G 2 B - Coupling thread to DIN 2999 (ISO 7/1) inch R 1/2 R 3/4 R 1/2 R 3/4 R 3 3/4 R 1 R 1 R 1 1/2 - Flange PN 16 Outer dia. D mm 95 105 95 105 105 115 115 150 165 to DIN 2501; DN 20 - 50 mm Hole pitch dia. K mm 65 75 65 75 75 85 85 110 125 also PN 25/40 Number of bolts Quantity 4 4 4 4 4 4 4 44 Overall length (without coupling) L mm 165 190 165 190 190 260 260 300 270 (with coupling) L1 mm 245 288 245 288 288 378 378 438 - Height H mm 135 135 135 135 135 140 140 155 180 h mm 40 40 40 40 40 45 45 50 83 Width B mm 96 96 96 96 96 102 102 137 166 Dial indication range min. 0.05 l / max. 100,000 m3 Weight without coupling kg 1.7 1.9 1.7 1.9 1.9 2.9 2.9 5.1 - with coupling kg 2.1 2.3 2.1 2.3 2.3 3.5 3.5 6.3 - with flanges kg 3.5 3.7 3.5 3.7 3.7 4.9 4.9 8.6 12.5 Flow restistance coefficient Zeta 22.9 72.4 8.2 26.1 10.2 13.1 4.4 10.5 11.3 ORDER REFERENCES Available pulse rates: 1 · 2.5 · 10 · 25 · 100 · 250 litres/pulse Other versions and pulse rates available on request. Note – Please indicate separately when ordering: For a low-resistance load, e.g. mechanical roller counters, order the pulse output without resistor Minor technical changes may occur in the course of further development. The M-T(H)XK Qn 6 (DN 32) is also available with G 1 1/2 B meter thread to DIN ISO 4064. *Manufacturer's note: Please read the note below the head loss graph before selecting suitable meter sizes. * tested to the metrological class indicated! Key: A (= metrological class) H (= installation - horizontal or vertical) Explanation of type designations: M : multi-jet meter K : pulse output A : metal shield T : dry runner X : counter type H : carbide bearing Note: The types listed in the order references are standard meters. Model Qn/PN Type designation l/pulse Overall length Temperature Connection *Metrol. cl. Article number 413 1.0 m3/h / 16 M-TXKA 25 190 mm 120 °C G 1 B A•H 413 000 77 413 1.0 m3/h / 16 M-TXKA 1 190 mm 120 °C G 1 B A•H 413 000 79 413 1.0 m3/h / 16 M-TXKA 10 190 mm 120 °C G 1 B A•H 413 000 80 413 1.5 m3/h / 16 M-TXKA 25 190 mm 120 °C G 1 B A•H 413 000 20 413 1.5 m3/h / 16 M-TXKA 1 190 mm 120 °C G 1 B A•H 413 000 21 413 1.5 m3/h / 16 M-TXKA 10 190 mm 120 °C G 1 B A•H 413 000 22 413 2.5 m3/h / 16 M-TXKA 25 190 mm 120 °C G 1 B A•H 413 000 45 413 2.5 m3/h / 16 M-TXKA 1 190 mm 120 °C G 1 B A•H 413 000 46 413 2.5 m3/h / 16 M-TXKA 10 190 mm 120 °C G 1 B A•H 413 000 47 413 3.5 m3/h / 16 M-TXKA 25 260 mm 120 °C G 11/4 B A•H 413 000 92 413 3.5 m3/h / 16 M-TXKA 1 260 mm 120 °C G 11/4 B A•H 413 000 94 413 3.5 m3/h / 16 M-TXKA 10 260 mm 120 °C G 11/4 B A•H 413 000 95 413 6.0 m3/h / 16 M-TXKA 25 260 mm 120 °C G 11/4 B A•H 413 001 20 413 6.0 m3/h / 16 M-TXKA 1 260 mm 120 °C G 11/4 B A•H 413 001 22 413 6.0 m3/h / 16 M-TXKA 10 260 mm 120 °C G 11/4 B A•H 413 001 23 413 10 m3/h / 16 M-TXKA 25 300 mm 120 °C G 2 B A•H 413 001 68 413 10 m3/h / 16 M-TXKA 1 300 mm 120 °C G 2 B A•H 413 001 70 413 10 m3/h / 16 M-TXKA 10 300 mm 120 °C G 2 B A•H 413 001 71 413 15 m3/h / 16 M-TXKA 25 270 mm 120 °C DIN 2501 flange A•H 413 002 12 413 15 m3/h / 16 M-TXKA 10 270 mm 120 °C DIN 2501 flange A•H 413 002 15 413 15 m3/h / 16 M-TXKA 100 270 mm 120 °C DIN 2501 flange A•H 413 002 16 414 1.0 m3/h / 16 M-THXKA 1 190 mm 120 °C G 1 B A•H 414 001 11 414 1.0 m3/h / 16 M-THXKA 10 190 mm 120 °C G 1 B A•H 414 001 12 414 1.5 m3/h / 16 M-THXKA 1 190 mm 120 °C G 1 B A•H 414 000 07 414 1.5 m3/h / 16 M-THXKA 10 190 mm 120 °C G 1 B A•H 414 003 95 414 2.5 m3/h / 16 M-THXKA 25 190 mm 120 °C G 1 B A•H 414 000 58 414 2.5 m3/h / 16 M-THXKA 1 190 mm 120 °C G 1 B A•H 414 000 59 414 2.5 m3/h / 16 M-THXKA 10 190 mm 120 °C G 1 B A•H 414 000 60 414 3.5 m3/h / 16 M-THXKA 25 260 mm 120 °C G 11/4 B A•H 414 001 50 414 3.5 m3/h / 16 M-THXKA 1 260 mm 120 °C G 11/4 B A•H 414 001 52 414 3.5 m3/h / 16 M-THXKA 10 260 mm 120 °C G 11/4 B A•H 414 001 53 414 6.0 m3/h / 16 M-THXKA 25 260 mm 120 °C G 11/4 B A•H 414 002 11 414 6.0 m3/h / 16 M-THXKA 1 260 mm 120 °C G 11/4 B A•H 414 002 13 414 6.0 m3/h / 16 M-THXKA 10 260 mm 120 °C G 11/4 B A•H 414 002 14 414 10 m3/h / 16 M-THXKA 25 300 mm 120 °C G 2 B A•H 414 002 85 414 10 m3/h / 16 M-THXKA 1 300 mm 120 °C G 2 B A•H 414 002 87 414 10 m3/h / 16 M-THXKA 10 300 mm 120 °C G 2 B A•H 414 002 88 414 15 m3/h / 16 M-THXKA 25 270 mm 120 °C DIN 2501 flange A•H 414 003 57 414 15 m3/h / 16 M-THXKA 10 270 mm 120 °C DIN 2501 flange A•H 414 003 59 414 15 m3/h / 16 M-THXKA 100 270 mm 120 °C DIN 2501 flange A•H 414 003 60
