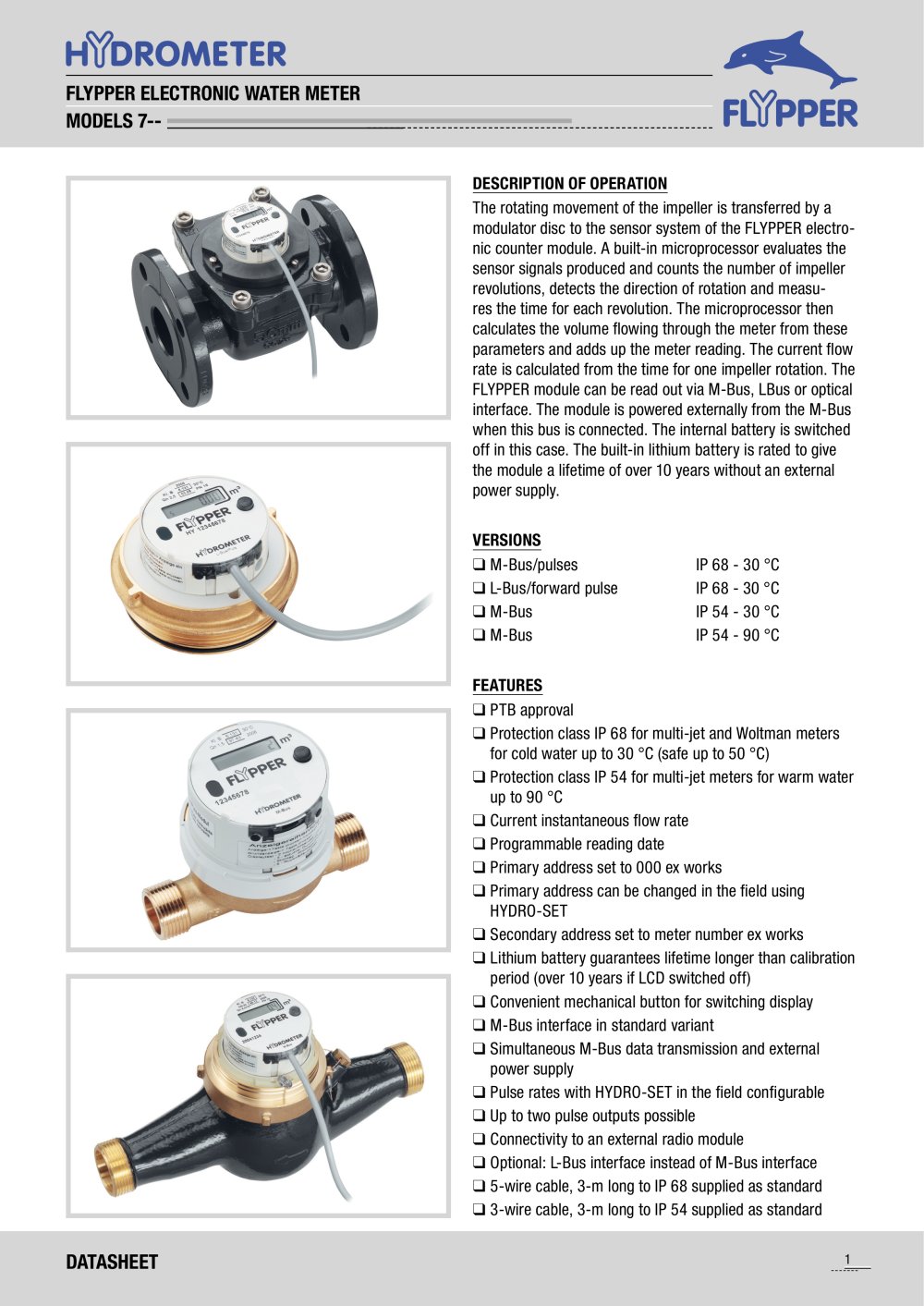

FLYPPER ELECTRONIC WATER METER MODELS 7-- DATASHEET 1 DESCRIPTION OF OPERATION The rotating movement of the impeller is transferred by a modulator disc to the sensor system of the FLYPPER electronic counter module. A built-in microprocessor evaluates the sensor signals produced and counts the number of impeller revolutions, detects the direction of rotation and measures the time for each revolution. The microprocessor then calculates the volume flowing through the meter from these parameters and adds up the meter reading. The current flow rate is calculated from the time for one impeller rotation. The FLYPPER module can be read out via M-Bus, LBus or optical interface. The module is powered externally from the M-Bus when this bus is connected. The internal battery is switched off in this case. The built-in lithium battery is rated to give the module a lifetime of over 10 years without an external power supply. VERSIONS ƒá M-Bus/pulses IP 68 - 30 °C ƒá L-Bus/forward pulse IP 68 - 30 °C ƒá M-Bus IP 54 - 30 °C ƒá M-Bus IP 54 - 90 °C FEATURES ƒá PTB approval ƒá Protection class IP 68 for multi-jet and Woltman meters for cold water up to 30 °C (safe up to 50 °C) ƒá Protection class IP 54 for multi-jet meters for warm water up to 90 °C ƒá Current instantaneous flow rate ƒá Programmable reading date ƒá Primary address set to 000 ex works ƒá Primary address can be changed in the field using HYDRO-SET ƒá Secondary address set to meter number ex works ƒá Lithium battery guarantees lifetime longer than calibration period (over 10 years if LCD switched off) ƒá Convenient mechanical button for switching display ƒá M-Bus interface in standard variant ƒá Simultaneous M-Bus data transmission and external power supply ƒá Pulse rates with HYDRO-SET in the field configurable ƒá Up to two pulse outputs possible ƒá Connectivity to an external radio module ƒá Optional: L-Bus interface instead of M-Bus interface ƒá 5-wire cable, 3-m long to IP 68 supplied as standard ƒá 3-wire cable, 3-m long to IP 54 supplied as standard
