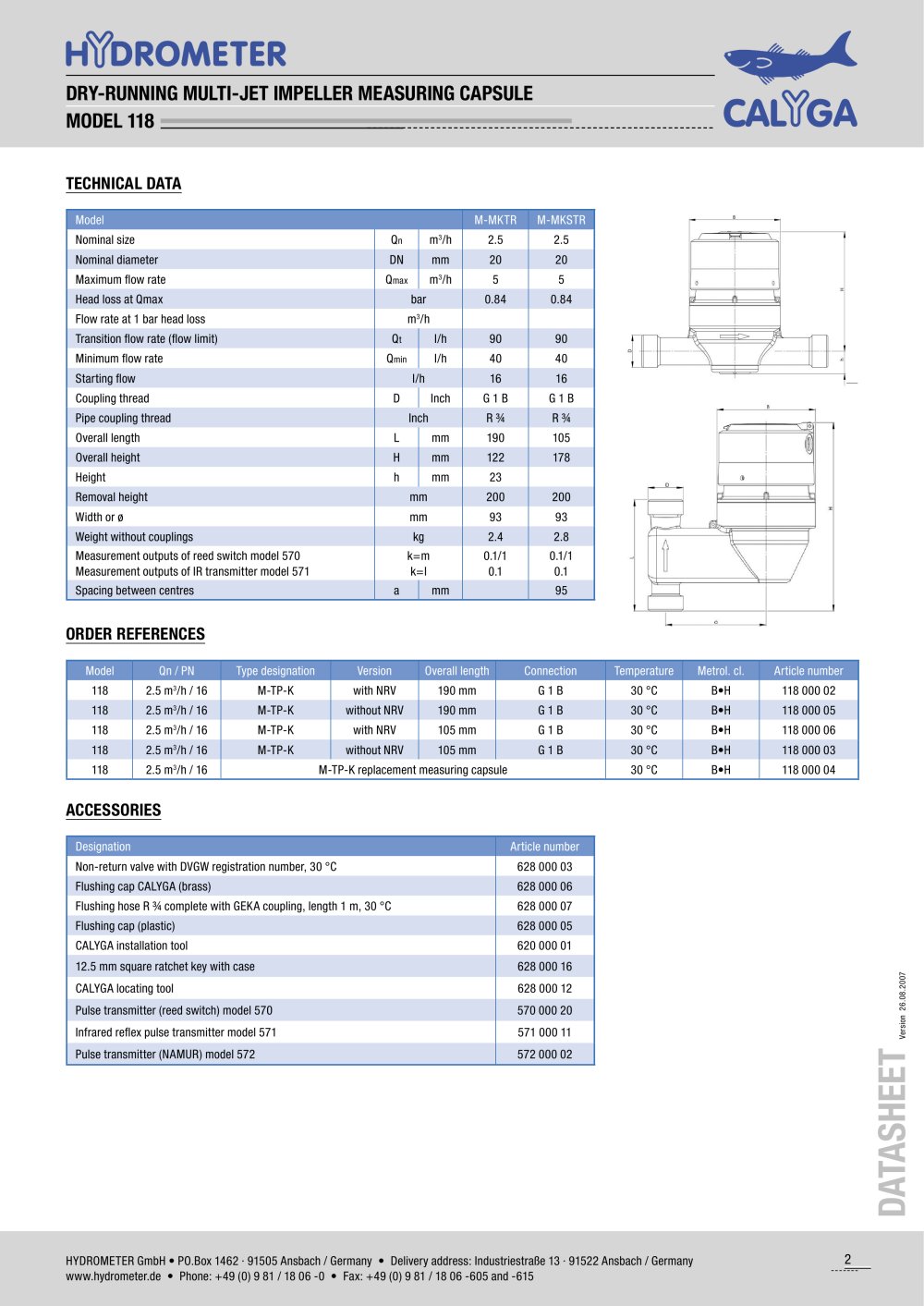

| | | HYDROMETER | | |
| | | |
| | | | | | | | | | DRY-RUNNING MULTI-JET IMPELLER MEASURING CAPSULE | | | | | MODEL 118- | CALuGA | | | | | | | | | |
| | | |
| | | TECHNICAL DATA | | |
| | | |
| | | | | | | | | | | | | | | | | M-MKSTR | | | | Nominal size | On | m3/h | 2.5 | 2.5 | | | | Nominal diameter | DN | mm | 20 | 20 | | | | Maximum flow rate | Qmax | m3/h | LO | LO | | | | Head loss at Qmax | bar | 0.84 | 0.84 | | | | Flow rate at 1 bar head loss | mVh | | | | | | Transition flow rate (flow limit) | Qt | l/h | 90 | 90 | | | | Minimum flow rate | Qmin | l/h | 40 | 40 | | | | Starting flow | l/h | 16 | 16 | | | | Coupling thread | D | Inch | G1 B | G1 B | | | | Pipe coupling thread | Inch | R% | R% | | | | Overall length | L | mm | 190 | 105 | | | | Overall height | H | mm | 122 | 178 | | | | Height | h | mm | 23 | | | | | Removal height | mm | 200 | 200 | | | | Width or 0 | mm | 93 | 93 | | | | Weight without couplings | kg | 2.4 | 2.8 | | | | Measurement outputs of reed switch model 570 | k=m | 0.1/1 | 0.1/1 | | | | Measurement outputs of IR transmitter model 571 | k=l | 0.1 | 0.1 | | | | Spacing between centres | a | mm | | 95 | | | | | | | | | | | | |
| | | |
| | | ORDER REFERENCES | | |
| | | |
| | | | | | | | | | | | | | | | | | | 118 | 2.5m3/h/16 | M-TP-K | | with NRV | 190 mm | | G1 B | 30°C | B»H | 118 000 02 | | | | 118 | 2.5m3/h/16 | M-TP-K | | withoutNRV | 190 mm | | G1 B | 30°C | B»H | 118 000 05 | | | | 118 | 2.5m3/h/16 | M-TP-K | | with NRV | 105 mm | | G1 B | 30°C | B»H | 118 000 06 | | | | 118 | 2.5m3/h/16 | M-TP-K | | withoutNRV | 105 mm | | G1 B | 30°C | B»H | 118 000 03 | | | | 118 | 2.5m3/h/16 | | M-TP-K replacement measuring capsule | | 30°C | B»H | 118 000 04 | | | | | | | | | | | | | | | | | | |
| | | |
| | | ACCESSORIES | | |
| | | |
| | | | | | | | | | Designation | | | | | Non-return valve with DVGW registration number, 30 °C | 628 000 03 | | | | Flushing cap CALYGA (brass) | 628 000 06 | | | | Flushing hose R % complete with GEKA coupling, length 1 m, 30 °C | 628 000 07 | | | | Flushing cap (plastic) | 628 000 05 | | | | CALYGA installation tool | 620 000 01 | | | | 12.5 mm square ratchet key with case | 628 00016 | | | | CALYGA locating tool | 628 00012 | | | | Pulse transmitter (reed switch) model 570 | 570 000 20 | | | | Infrared reflex pulse transmitter model 571 | 571 00011 | | | | Pulse transmitter (NAMUR) model 572 | 572 000 02 | | | | | | | | | |
| | | |
| | | 2 | | |
| | | HYDROMETER GmbH • PO.Box 1462 • 91505 Ansbach / Germany • Delivery address: Industriestraße 13 • 91522 Ansbach / Germany www.hydrometer.de • Phone:+49(0)9 81 /18 06-0 • Fax:+49(0)9 81 /18 06-605and-615 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | |
