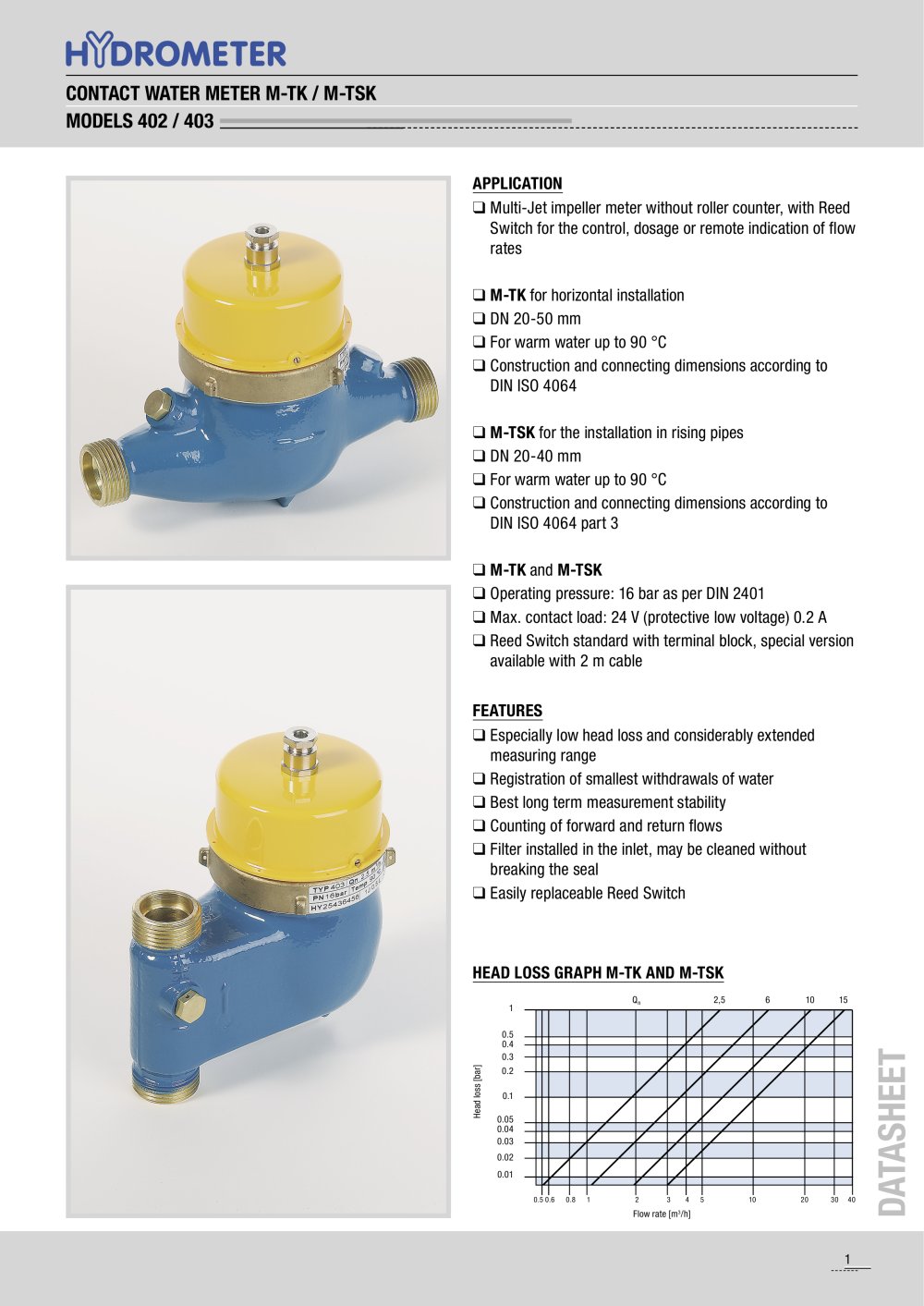

CONTACT WATER METER M-TK/M-TSK MODELS 402 / 403 -
|
||||
|
|
||||
 |
APPLICATION
□ Multi-Jet impeller meter without roller counter, with Reed Switch for the control, dosage or remote indication of flow rates
□ M-TK for horizontal installation
□ DN 20-50 mm
□ For warm water up to 90 °C
□ Construction and Connecting dimensions according to DIN ISO 4064
□ M-TSK for the installation in rising pipes
□ DN 20-40 mm
□ For warm water up to 90 °C
□ Construction and Connecting dimensions according to DIN ISO 4064 part 3
□ M-TK and M-TSK
□ Operating pressure: 16 bar as per DIN 2401
□ Max. contact load: 24 V (protective low voltage) 0.2 A
□ Reed Switch standard with terminal block, spécial version available with 2 m cable
|
|||
 |
||||
|
|
||||
 |
FEATURES
□ Especially low head loss and considerably extended measuring range
□ Registration of smallest withdrawals of water
□ Best long term measurement stability
□ Counting of forward and return flows
□ Filter installed in the inlet, may be cleaned without breaking the seal
□ Easily replaceable Reed Switch
|
|||
 |
HEAD LOSS GRAPH M-TKAND M-TSK
Qn 2,5 6 10 15
|
|||
|
0.5 0.4 0.3 0.2
0.1
0.05 0.04 0.03 0.02 0.01
|
 |
|||
|
|
||||
|
0.5 0.6 0.8 1 2 3 4 5 10 20 30 40
Flow rate [m3/h]
|
||||
|
|
||||
|
1
|
||||
|
|
||||
