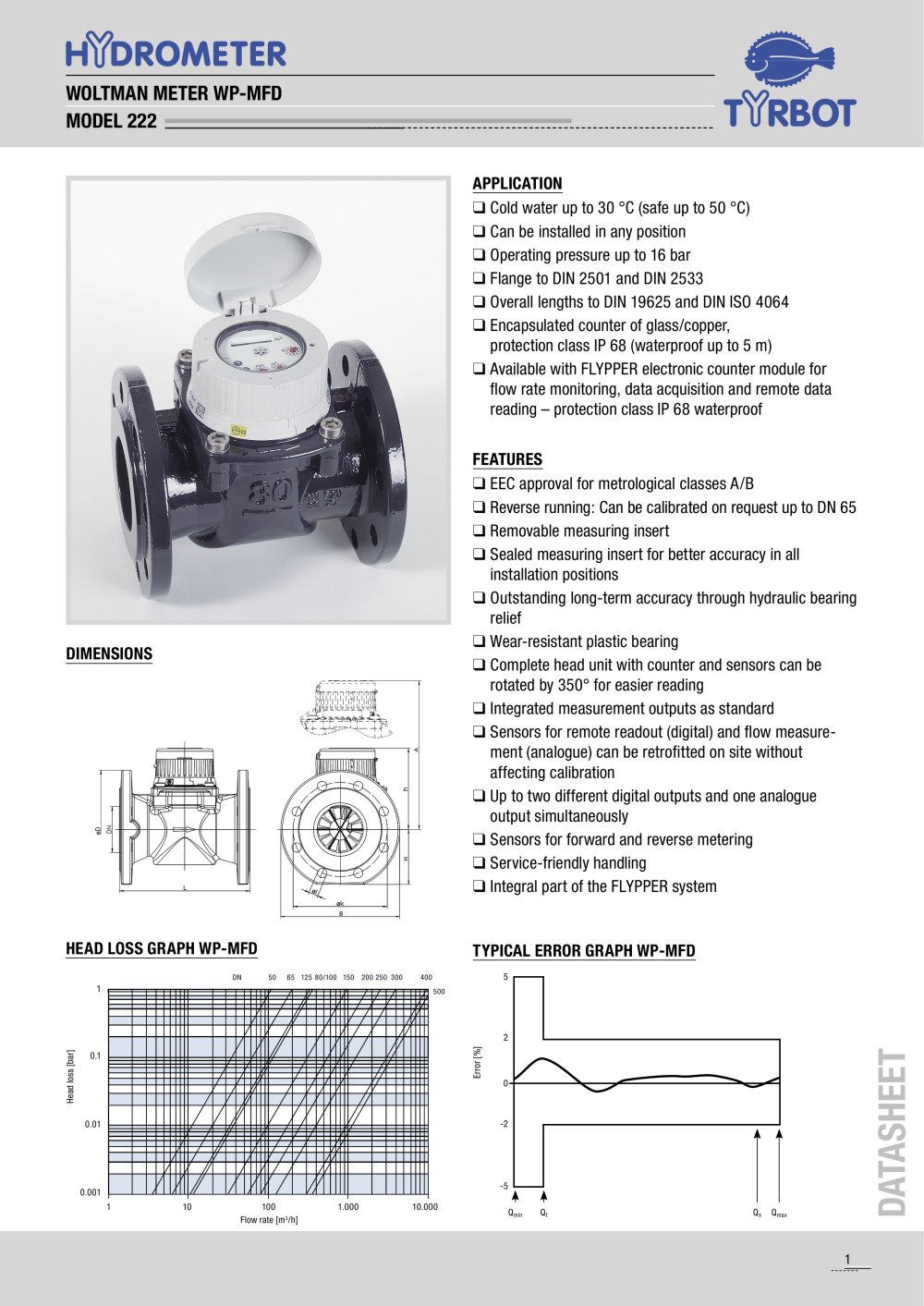

hYdrometer
|
 |
|||||||||||||||||||||||
|
|
||||||||||||||||||||||||
|
||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
 |
APPLICATION
□ Cold water up to 30 °C (safe up to 50 °C)
□ Can be installed in any position
□ Operating pressure upto16 bar
□ Range to DIN 2501 and DIN 2533
□ Overall lengthsto DIN 19625 and DIN ISO 4064
□ Encapsulated counter of glass/copper, protection class IP 68 (waterproof up to 5 m)
□ Available with FLYPPER electronic counter module for flow rate monitoring, data acquisition and remote data reading - protection class IP 68 waterproof
FEATURES
□ EEC approval for metrological classes A/B
□ Reverse running: Can be calibrated on request up to DN 65
□ Removable measuring insert
□ Sealed measuring insert for better accuracy in ail installation positions
□ Outstanding long-term accuracy through hydraulic bearing relief
□ Wear-resistant plastic bearing
□ Complète head unit with counter and sensors can be rotated by 350° for easier reading
□ Integrated measurement outputs as standard
□ Sensors for remote readout (digital) and flow measurement (analogue) can be retrofitted on site without affecting calibration
□ Up to two différent digital outputs and one analogue output simultaneously
□ Sensors for forward and reverse metering
□ Service-friendly handling
□ Intégral part ofthe FLYPPER System
|
|||||||||||||||||||||||
|
DIMENSIONS
|
||||||||||||||||||||||||
 |
||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
|
HEAD LOSS GRAPH WP-MFD
|
TYPICAL ERROR GRAPH WP-MFD
|
|||||||||||||||||||||||
|
|
||||||||||||||||||||||||
|
DN 50 65 125 80/100 150 200 250 300 400
|
5
|
|||||||||||||||||||||||
|
|
||||||||||||||||||||||||
|
0.1
|
 |
500
|
2
|
|||||||||||||||||||||
|
0
|
 |
|||||||||||||||||||||||
|
0.01
|
||||||||||||||||||||||||
|
-2
|
||||||||||||||||||||||||
|
0.001
|
-5L
|
|||||||||||||||||||||||
|
|
||||||||||||||||||||||||
|
10
|
100 1.000 10.000
Flow rate [m3/h]
|
Qmm Ql
|
Qn Qm,x
|
|||||||||||||||||||||
|
|
||||||||||||||||||||||||
|
1
|
||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
