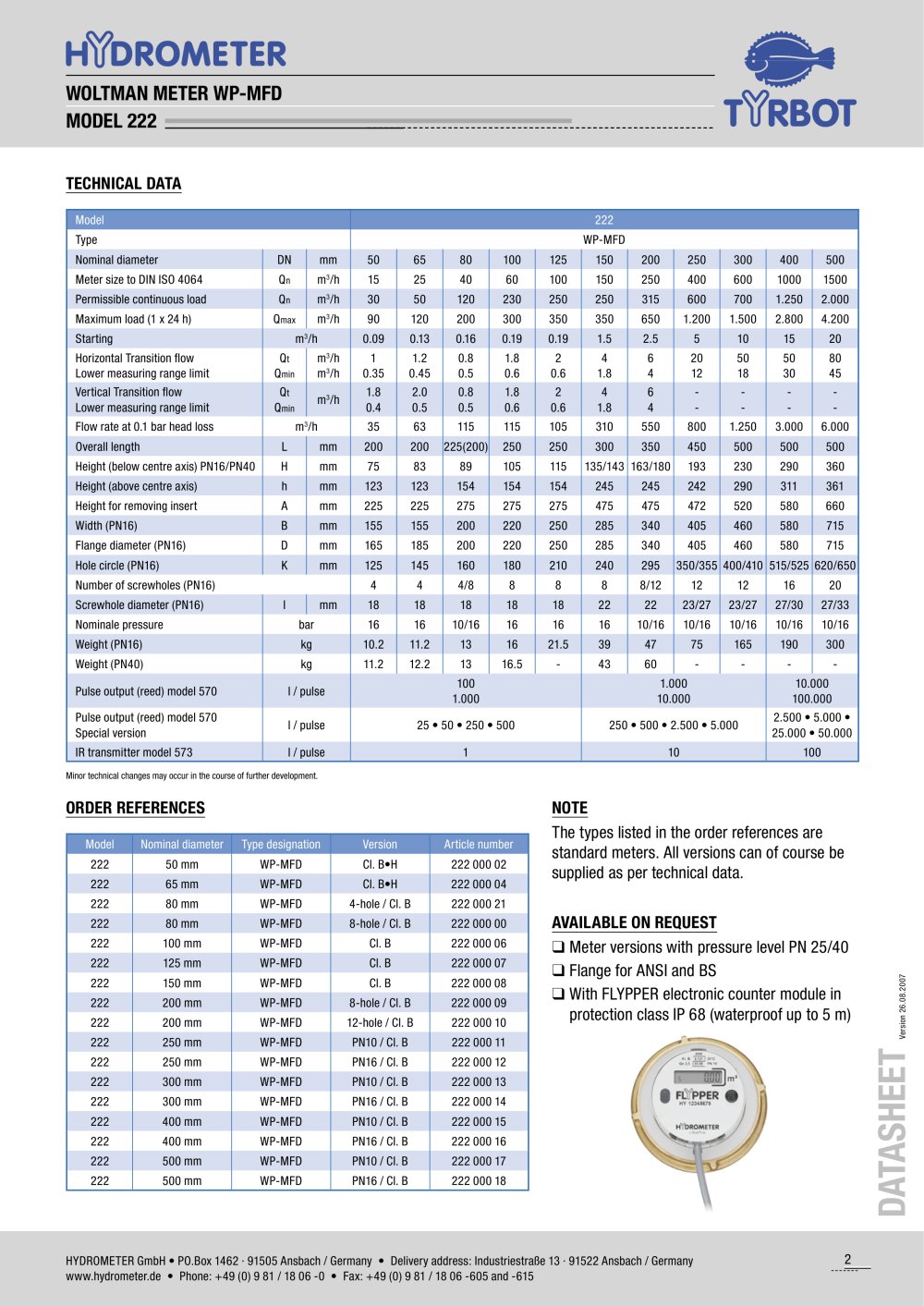

TECHNICAL DATA



Type			^^^^^^^^^^^^^^^^^^^^^^					WP-MFD
Nominal diameter	DN	mm	50	65	80	100	125	150	200	250	300	400	500
Meter sizetoDIN ISO 4064	Qn	m³/h	15	25	40	60	100	150	250	400	600	1000	1500
Permissible continuous load	Qn	m³/h	30	50	120	230	250	250	315	600	700	1.250	2.000
Maximum load (1 x 24 h)	Qmax	m³/h	90	120	200	300	350	350	650	1.200	1.500	2.800	4.200
Starting	m³/h		0.09	0.13	0.16	0.19	0.19	1.5	2.5	5	10	15	20
Horizontal Transition flow	Qt	m³/h	1	1.2	0.8	1.8	2	4	6	20	50	50	80
Lower measuring range limit	Qmin	m³/h	0.35	0.45	0.5	0.6	0.6	1.8	4	12	18	30	45
Vertical Transition flow	Qt	m³/h	1.8	2.0	0.8	1.8	2	4	6	-	-	-	-
Lower measuring range limit	Qmin	m³/h	0.4	0.5	0.5	0.6	0.6	1.8	4	-	-	-	-
Flow rate at 0.1 bar head loss	m³/h		35	63	115	115	105	310	550	800	1.250	3.000	6.000
Overall length	L	mm	200	200	225(200)	250	250	300	350	450	500	500	500
Height (below centre axis) PN16/PN40	H	mm	75	83	89	105	115	135/143	163/180	193	230	290	360
Height (above centre axis)	h	mm	123	123	154	154	154	245	245	242	290	311	361
Height for removing insert	A	mm	225	225	275	275	275	475	475	472	520	580	660
Width (PN16)	B	mm	155	155	200	220	250	285	340	405	460	580	715
Flange diameter(PN16)	D	mm	165	185	200	220	250	285	340	405	460	580	715
Holecircle (PN16)	K	mm	125	145	160	180	210	240	295	350/355	400/410	515/525	620/650
Number of screwholes (PN16)			4	4	4/8	8	8	8	8/12	12	12	16	20
Screwhole diameter (PN16)	I	mm	18	18	18	18	18	22	22	23/27	23/27	27/30	27/33
Nominale pressure	bar		16	16	10/16	16	16	16	10/16	10/16	10/16	10/16	10/16
Weight (PN16)	kg		10.2	11.2	13	16	21.5	39	47	75	165	190	300
Weight (PN40)	kg		11.2	12.2	13	16.5	-	43	60	-	-	-	-
Puise output (reed) model 570	I / puise				100 1.000				1.000 10.000			10.000 100.000
Puise output (reed) model 570 Spécial version	I / puise			25»50» 250 • 500				250 • 500 • 2.500 • 5.000				2.500 • 5.000 • 25.000 • 50.000
IR transmitter model 573	I / puise				1				10			100

Minor technical changes may occur in the course of further development.

ORDER REFERENCES

NOTE

The types listed in the order références are standard meters. Ail versions can of course be supplied as per technical data.

AVAILABLE ON REQUEST

□ Meter versions with pressure level PN 25/40

□ Flange for ANSI and BS

□ With FLYPPER electronic counter module in protection class IP 68 (waterproof up to 5 m)


Model
222	50 mm	WP-MFD	CI.B'H	222 000 02
222	65 mm	WP-MFD	CI.B'H	222 000 04
222	80 mm	WP-MFD	4-hole/CI.B	222 000 21
222	80 mm	WP-MFD	8-hole/CI.B	222 000 00
222	100 mm	WP-MFD	CI.B	222 000 06
222	125 mm	WP-MFD	CI.B	222 000 07
222	150 mm	WP-MFD	CI.B	222 000 08
222	200 mm	WP-MFD	8-hole/CI.B	222 000 09
222	200 mm	WP-MFD	12-hole/CI.B	222 00010
222	250 mm	WP-MFD	PN10/CI.B	222 00011
222	250 mm	WP-MFD	PN16/CI.B	222 000 12
222	300 mm	WP-MFD	PN10/CI.B	222 00013
222	300 mm	WP-MFD	PN16/CI.B	222 00014
222	400 mm	WP-MFD	PN10/CI.B	222 00015
222	400 mm	WP-MFD	PN16/CI.B	222 00016
222	500 mm	WP-MFD	PN10/CI.B	222 00017
222	500 mm	WP-MFD	PN16/CI.B	222 00018

HYDR0METER GmbH • PO.Box 1462 • 91505 Ansbach / Germany • Delivery address: Industriestralîe 13 • 91522 Ansbach / Germany www.hydrometer.de • Phone:+49(0)9 81 /18 06-0 • Fax:+49(0)9 81 /18 06-605and-615
