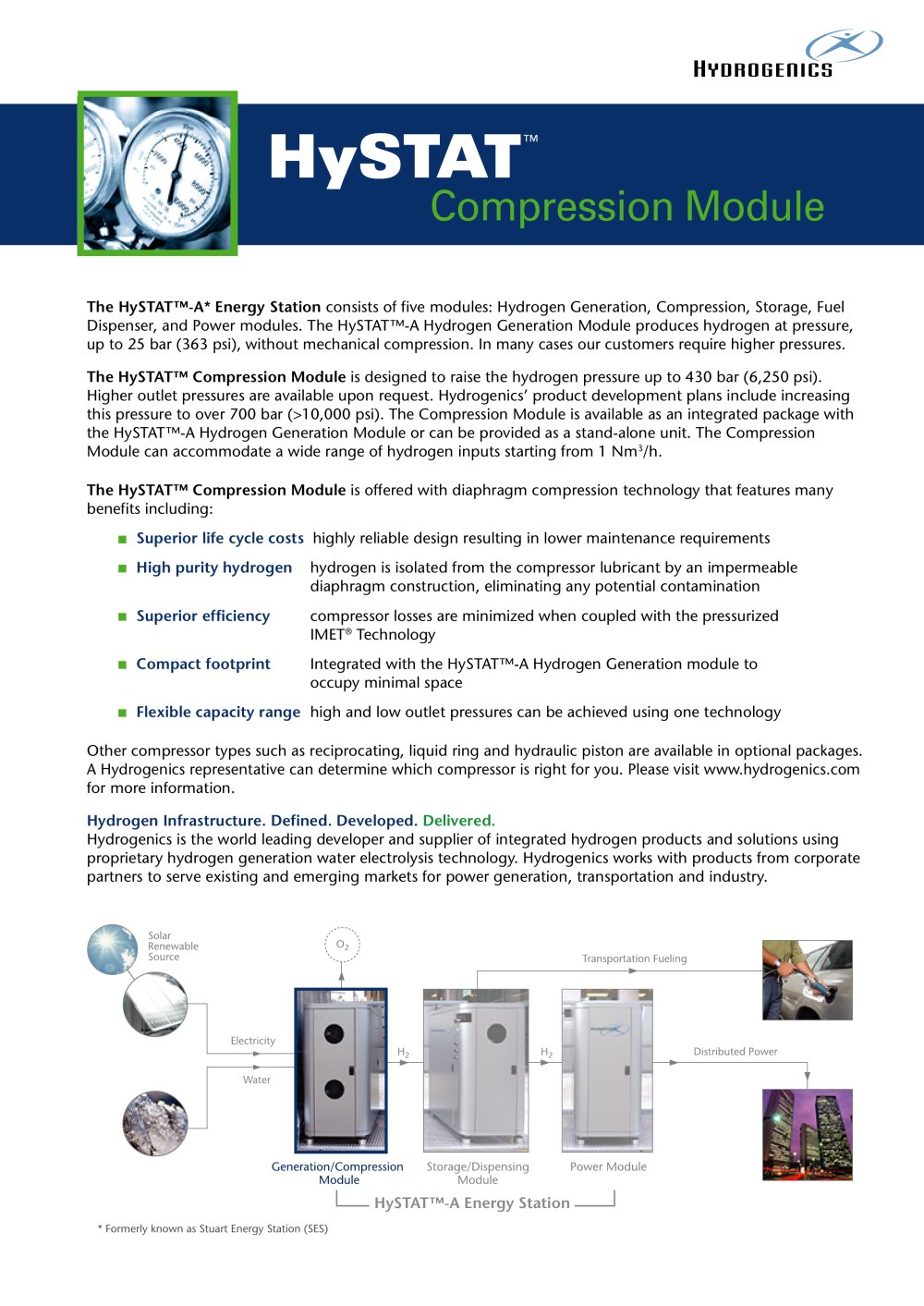

HySTAT Compression Module - Hydrogen Systems - #1

Compression Module

The HySTAT™-A* Energy Station consists of five modules: Hydrogen Generation, Compression, Storage, Fuel Dispenser, and Power modules. The HySTAT™-A Hydrogen Generation Module produces hydrogen at pressure, up to 25 bar (363 psi), without mechanical compression. In many cases our customers require higher pressures.

The HySTAT™ Compression Module is designed to raise the hydrogen pressure up to 430 bar (6,250 psi). Higher outlet pressures are available upon request. Hydrogenics' product development plans include increasing this pressure to over 700 bar (>10,000 psi). The Compression Module is available as an integrated package with the HySTAT™-A Hydrogen Generation Module or can be provided as a stand-alone unit. The Compression Module can accommodate a wide range of hydrogen inputs starting from 1 Nm³/h.

The HySTAT™ Compression Module is offered with diaphragm compression technology that features many benefits including:

■ Superior life cycle costs highly reliable design resulting in lower maintenance requirements

■ High purity hydrogen hydrogen is isolated from the compressor lubricant by an impermeable

diaphragm construction, eliminating any potential contamination

■ Superior efficiency compressor losses are minimized when coupled with the pressurized

IMET® Technology

■ Compact footprint Integrated with the HySTAT™-A Hydrogen Generation module to

occupy minimal space

■ Flexible capacity range high and low outlet pressures can be achieved using one technology

Other compressor types such as reciprocating, liquid ring and hydraulic piston are available in optional packages. A Hydrogenics representative can determine which compressor is right for you. Please visit www.hydrogenics.com for more information.

Hydrogen Infrastructure. Defined. Developed. Delivered.

Hydrogenics is the world leading developer and supplier of integrated hydrogen products and solutions using proprietary hydrogen generation water electrolysis technology. Hydrogenics works with products from corporate partners to serve existing and emerging markets for power generation, transportation and industry.
