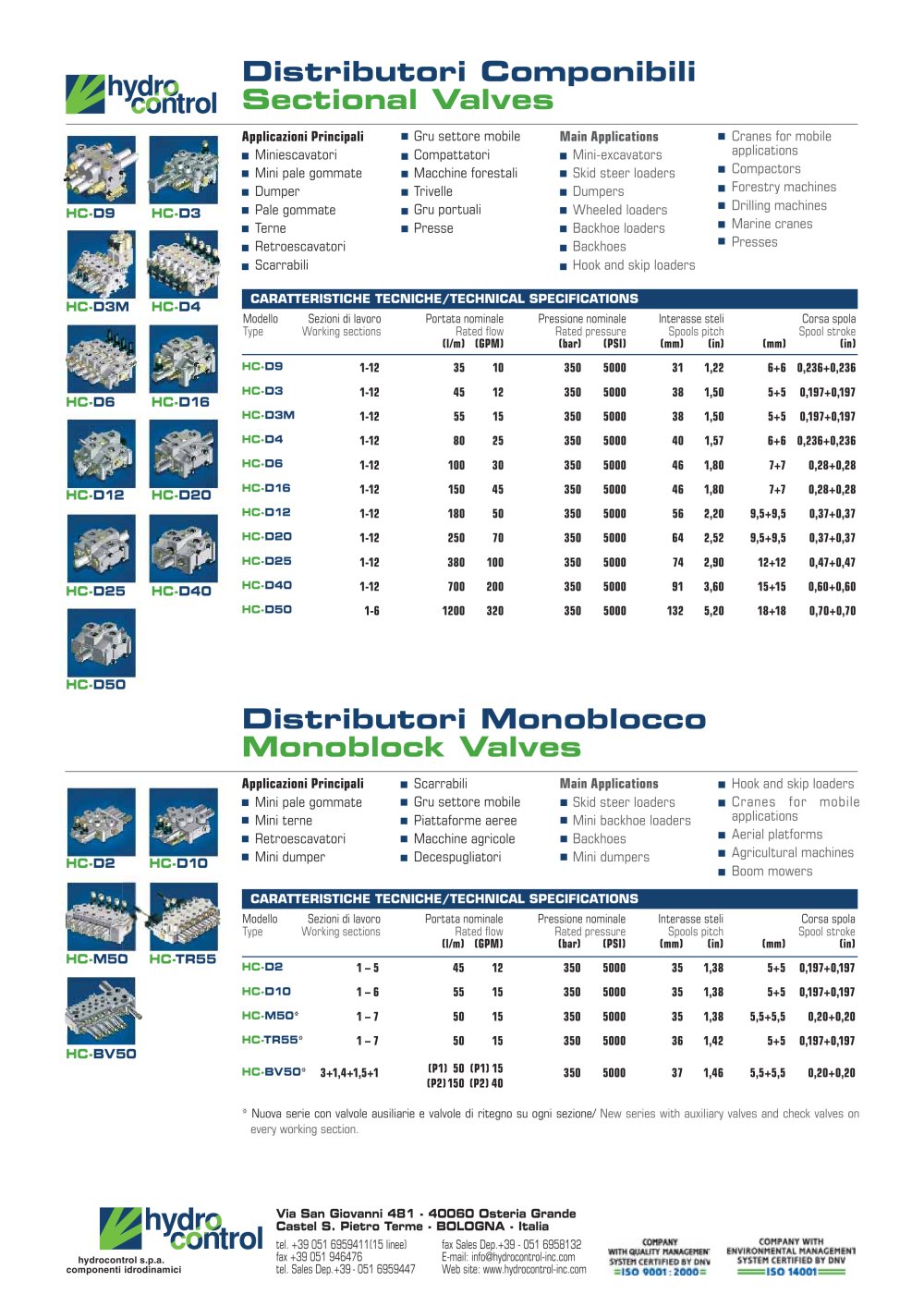

Maquetación 1 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:17.00pt "Arial", sans-serif; } .font6 { font:18.00pt "Arial Black", sans-serif; } .font7 { font:5.00pt "Impact", sans-serif; } .font8 { font:6.00pt "Lucida Sans Unicode", sans-serif; } .font9 { font:7.00pt "Lucida Sans Unicode", sans-serif; } wr.h H Distributori Componibili Sectional Valves Applicazioni Principali ■ Miniescavatori ■ Mini pale gommate ■ Dumper ■ Pale gommate ■ Terne ■ Retroescavatori ■ Scarrabili Gru settore mobile Compattatori Macchine forestali Trivelle Gru portuali Presse Main Applications ■ Mini-excavators ■ Skid steer loaders ■ Dumpers ■ Wheeled loaders ■ Backhoe loaders ■ Backhoes ■ Hook and skip loaders Cranes for mobile applications Compactors Forestry machines Drilling machines Marine cranes Presses CARATTERISTICHE TECNICHE/TECHNICAL SPECIFICATIONS Modello Type Sezioni di lavoro Portata nominale Rated flow (l/m) (GPM) Pressione nominale Rated pressure (bar) (PSI) Interasse steli Spools pitch (mm) (in) (mm) Corsa spola Spool stroke (in) HC-D9 1-12 35 10 350 5000 31 1,22 6+6 0,236+0,236 HC-D3 1-12 45 12 350 5000 38 1,50 5+5 0,197+0,197 HC-D3M 1-12 55 15 350 5000 38 1,50 5+5 0,197+0,197 HC-D4 1-12 80 25 350 5000 40 1,57 6+6 0,236+0,236 HC-D6 1-12 100 30 350 5000 46 1,80 7+7 0,28+0,28 HC-D16 1-12 150 45 350 5000 46 1,80 7+7 0,28+0,28 HC-D12 1-12 180 50 350 5000 56 2,20 9,5+9,5 0,37+0,37 HC-D20 1-12 250 70 350 5000 64 2,52 9,5+9,5 0,37+0,37 HC-D25 1-12 380 100 350 5000 74 2,90 12+12 0,47+0,47 HC-D40 1-12 700 200 350 5000 91 3,60 15+15 0,60+0,60 HC-D50 1-6 1200 320 350 5000 132 5,20 18+18 0,70+0,70 HC-D50 Distributori Monoblocco Monoblock V Applicazioni Principali ■ Mini pale gommate ■ Mini terne ■ Retroescavatori ■ Mini dumper Scarrabili Gru settore mobile Piattaforme aeree Macchine agricole Decespugliatori Main Applications Skid steer loaders Mini backhoe loaders Backhoes Mini dumpers Hook and skip loaders Cranes for mobile applications Aerial platforms Agricultural machines Boom mowers CARATTERISTICHE TECNICHE/TECHNICAL SPECIFICATIONS Modello Sezioni di lavoro Type Working sections Portata nominale Rated flow (l/m) (GPM) Pressione nominale Rated pressure (bar) (PSI) Interasse steli Spools pitch (mm) (in) (mm) Corsa spola Spool stroke (in) HC-D2 1 - 5 45 12 350 5000 35 1,38 5+5 0,197+0,197 HC-D10 1 - 6 55 15 350 5000 35 1,38 5+5 0,197+0,197 HC-M50* 1 - 7 50 15 350 5000 35 1,38 5,5+5,5 0,20+0,20 HC-TR55» 1 - 7 50 15 350 5000 36 1,42 5+5 0,197+0,197 HC-BV50* 3+1,4+1,5+1 (P1) 50 (P1) 15 (P2)150 (P2)40 350 5000 37 1,46 5,5+5,5 0,20+0,20 HC-BV50 * Nuova serie con valvole ausiliarie e valvole di ritegno su ogni sezione/ New series with auxiliary valves and check valves on every working section. ^hX>ontrol Via San Giovanni 481 - 40060 Osteria Grande Castel S. Pietro Terme - BOLOGNA - Italia tel. +39 051 6959411(15 linee) fax Sales Dep.+39 - 051 6958132 fax +39 051 946476 E-mail: info@hydrocontrol-inc.com tel. Sales Dep.+39 - 051 6959447 Web site: www.hydrocontrol-inc.com ISO 4091 .100.D : COHPAHT YVITH S tJVHiOU H tu r « L rtAPrWÉUtNl srsitn itRïmin Ht DMV =^IJO 14001- hydrocontrol s.p.a. componenti idrodinamici
