257
MARBILD

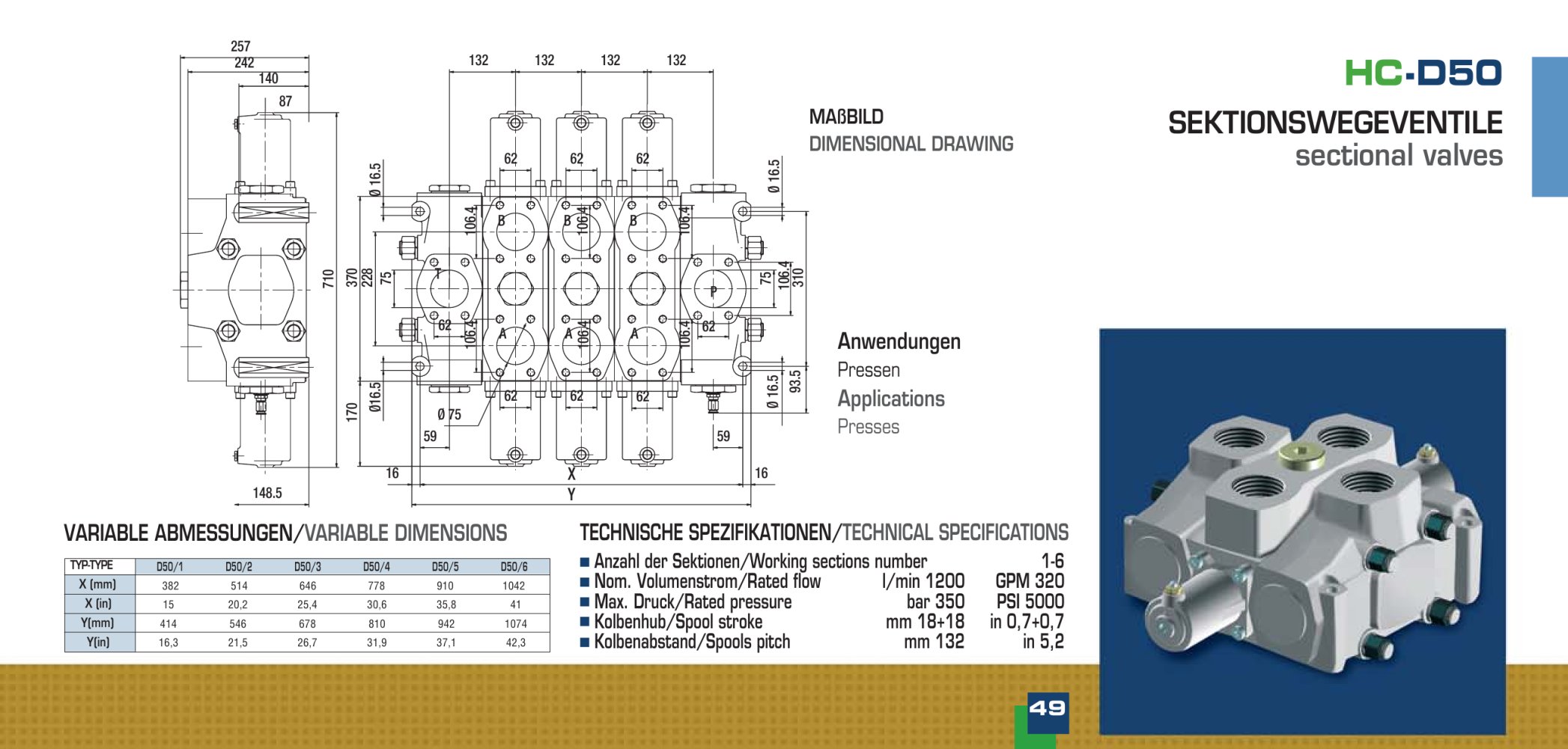

DIMENSIONAL DRAWING
HC-D50
SEKTIONSWEGEVENTILE sectional valves
Anwendungen
Pressen Applications
Presses
VARIABLE ABMESSUNGEN/VARIABLE DIMENSIONS
TECHNISCHE SPEZIFIKATIONEN/TECHNICAL SPECIFICATIONS
Anzahl der Sektionen/Working sections number 1-6
L
TYPTYPE
D50/1
D50/2
D50/3
D50/4
D50/5
D50/6
X (mm)
382
514
646
778
910
1042
X (in)
15
20,2
25,4
30,6
35,8
41
Y(mm)
414
546
678
810
942
1074
Y(in)
16,3
21,5
26,7
31,9
37,1
42,3
■ Nom. Volumenstrom/Rated flow
■ Max. Druck/Rated pressure
■ Kolbenhub/Spool stroke
■ Kolbenabstand/Spools pitch
l/min 1200 GPM 320
bar 350 PSI 5000
mm 18+18 in 0,7+0,7
mm 132 in 5,2
* ))
