164.8

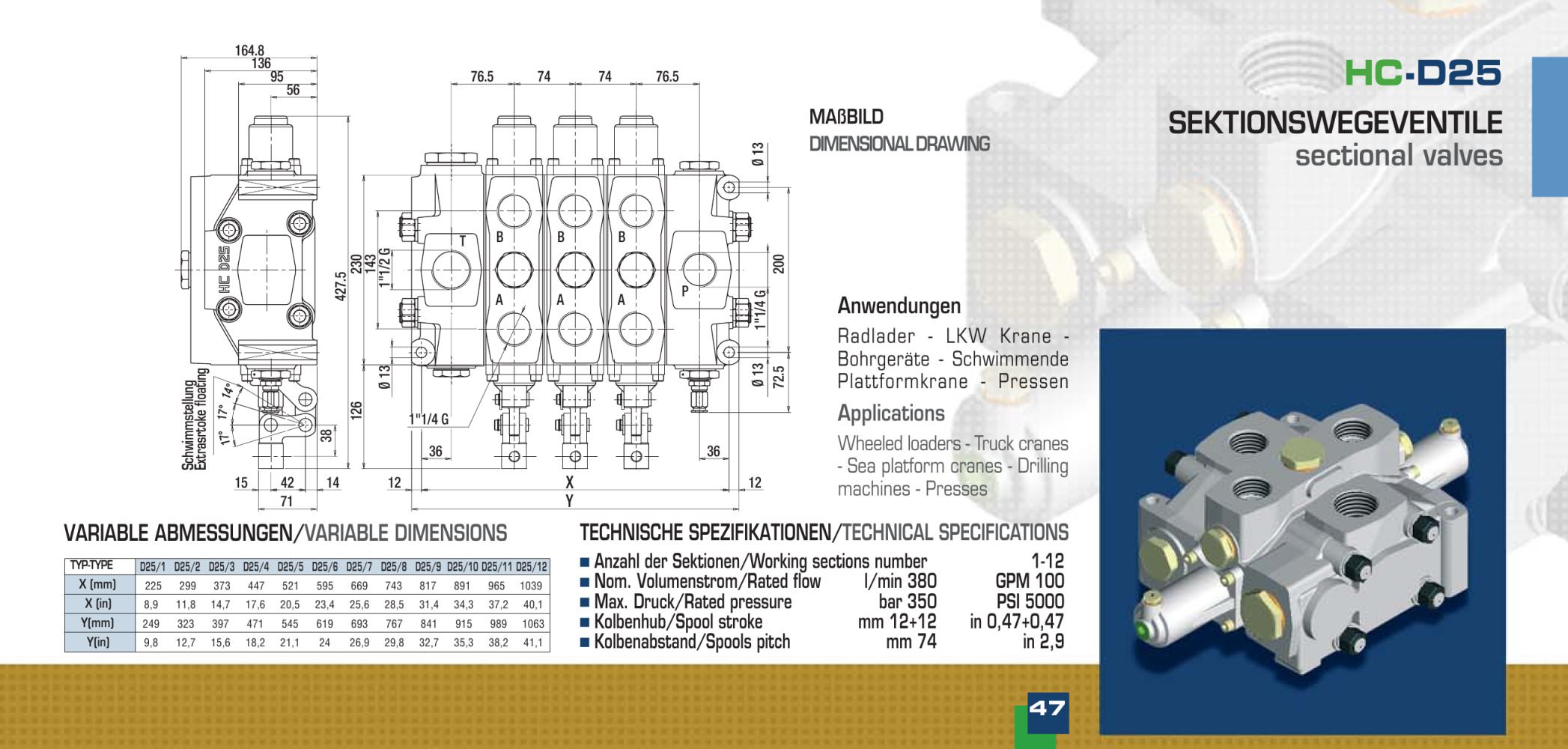

HC-D25
MARBILD
DIMENSIONAL DRAWING
SEKTIONSWEGEVENTILE sectional valves
Anwendungen
Radlader - LKW Krane -Bohrgerâte - Schwimmende Plattformkrane - Pressen
Applications
Wheeled loaders - Truck cranes - Sea platform cranes - Drilling
machines - Presses
VARIABLE ABMESSUNGEN/VARIABLE DIMENSIONS
TECHNISCHE SPEZIFIKATIONEN/TECHNICAL SPECIFICATIONS
■ Anzahl der Sektionen/Working sections number 1-12
■ Nom. Volumenstrom/Rated flow l/min 380 GPM 100
■ Max. Druck/Rated pressure bar 350 PSI 5000
■ Kolbenhub/Spool stroke mm 12+12 in 0,47+0,47
■ Kolbenabstand/Spools pitch mm 74 in 2,9
TYP-TYPE
D25/1
D25/2
D25/3
D25/4
D25/5
D25/6
D25/7
D25/8
D25/9 D25/10 D25/11 D25/12
X (mm)
225
299
373
447
521
595
669
743
817 891 965 1039
X (in)
8,9
11,8
14,7
17,6
20,5
23,4
25,6
28,5
31,4 34,3 37,2 40,1
Y(mm)
249
323
397
471
545
619
693
767
841 915 989 1063
Y(in)
9,8
12,7
15,6
18,2
21,1
24
26,9
29,8
32,7 35,3 38,2 41,1
