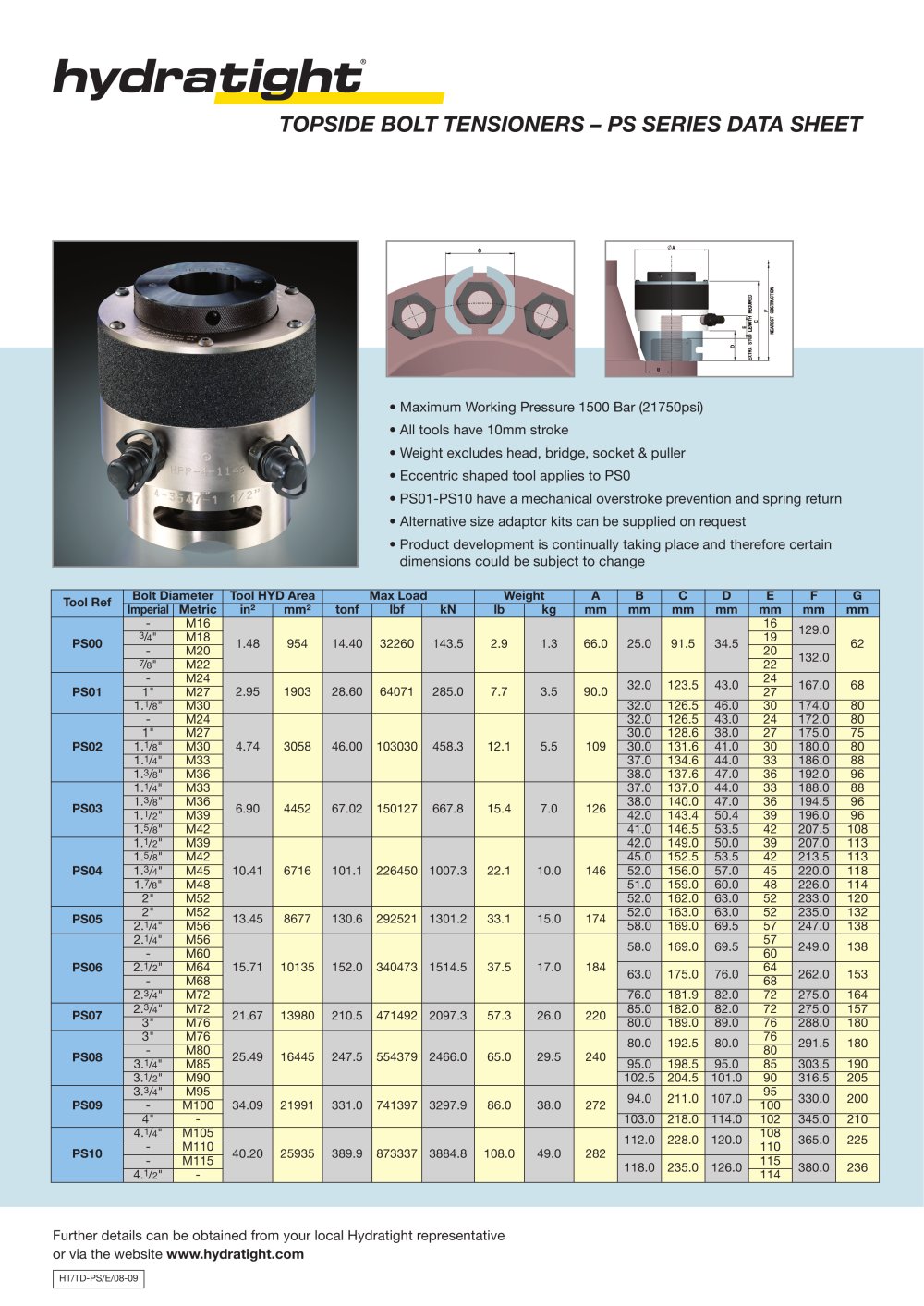

PS Tensioner - Hydratight - #1

Text version of the page

Tool Ref Bolt Diameter Tool HYD Area Max Load Weight A B C D E F G Imperial Metric in² mm² tonf lbf kN lb kg mm mm mm mm mm mm mm PS00 - M16 1.48 954 14.40 32260 143.5 2.9 1.3 66.0 25.0 91.5 34.5 16 129.0 62 3/4" M18 19 - M20 20 132.0 7/8" M22 22 PS01 - M24 2.95 1903 28.60 64071 285.0 7.7 3.5 90.0 32.0 123.5 43.0 24 1" M27 27 167.0 68 1.1/8" M30 32.0 126.5 46.0 30 174.0 80 PS02 - M24 4.74 3058 46.00 103030 458.3 12.1 5.5 109 32.0 126.5 43.0 24 172.0 80 1" M27 30.0 128.6 38.0 27 175.0 75 1.1/8" M30 30.0 131.6 41.0 30 180.0 80 1.1/4" M33 37.0 134.6 44.0 33 186.0 88 1.3/8" M36 38.0 137.6 47.0 36 192.0 96 PS03 1.1/4" M33 6.90 4452 67.02 150127 667.8 15.4 7.0 126 37.0 137.0 44.0 33 188.0 88 1.3/8" M36 38.0 140.0 47.0 36 194.5 96 1.1/2" M39 42.0 143.4 50.4 39 196.0 96 1.5/8" M42 41.0 146.5 53.5 42 207.5 108 PS04 1.1/2" M39 10.41 6716 101.1 226450 1007.3 22.1 10.0 146 42.0 149.0 50.0 39 207.0 113 1.5/8" M42 45.0 152.5 53.5 42 213.5 113 1.3/4" M45 52.0 156.0 57.0 45 220.0 118 1.7/8" M48 51.0 159.0 60.0 48 226.0 114 2" M52 52.0 162.0 63.0 52 233.0 120 PS05 2" M52 13.45 8677 130.6 292521 1301.2 33.1 15.0 174 52.0 163.0 63.0 52 235.0 132 2.1/4" M56 58.0 169.0 69.5 57 247.0 138 PS06 2.1/4" M56 15.71 10135 152.0 340473 1514.5 37.5 17.0 184 - M60 58.0 169.0 69.5 5607 249.0 138 2.1/2" M64 63.0 175.0 76.0 64 262.0 153 - M68 68 2.3/4" M72 76.0 181.9 82.0 72 275.0 164 PS07 2.3/4" M72 21.67 13980 210.5 471492 2097.3 57.3 26.0 220 85.0 182.0 82.0 72 275.0 157 3" M76 80.0 189.0 89.0 76 288.0 180 PS08 3" M76 25.49 16445 247.5 554379 2466.0 65.0 29.5 240 - M80 80.0 192.5 80.0 7806 291.5 180 3.1/4" M85 95.0 198.5 95.0 85 303.5 190 3.1/2" M90 102.5 204.5 101.0 90 316.5 205 PS09 3.3/4" M95 - M100 34.09 21991 331.0 741397 3297.9 86.0 38.0 272 94.0 211.0 107.0 19050 330.0 200 4" - 103.0 218.0 114.0 102 345.0 210 PS10 4.1/4" M105 40.20 25935 389.9 873337 3884.8 108.0 49.0 282 - M110 112.0 228.0 120.0 110108 365.0 225 - M115 118.0 235.0 126.0 115 380.0 236 4.1/2" - 114 • Maximum Working Pressure 1500 Bar (21750psi) • All tools have 10mm stroke • Weight excludes head, bridge, socket & puller • Eccentric shaped tool applies to PS0 • PS01-PS10 have a mechanical overstroke prevention and spring return • Alternative size adaptor kits can be supplied on request • Product development is continually taking place and therefore certain dimensions could be subject to change TOPSIDE BOLT TENSIONERS – PS SERIES DATA SHEET Further details can be obtained from your local Hydratight representative or via the website www.hydratight.com HT/TD-PS/E/08-09
