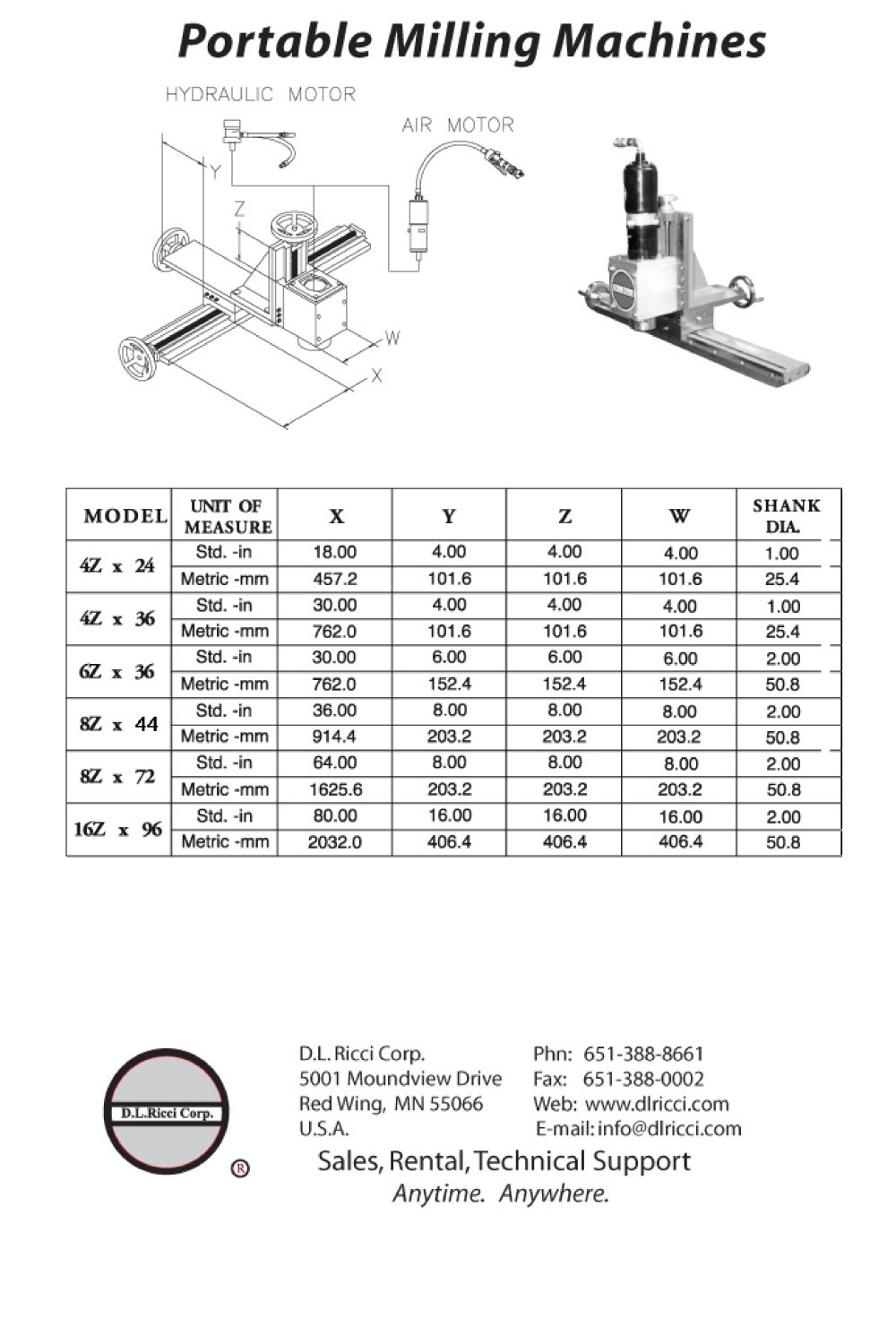

Portable Milling Machines

HYDRAULIC MOTOR


	MODEL	UNTT OF MEASURE	X	Y	z	W	SHANK DIA.
	4Z x 24	Sid. -in	18 00	4.00	4.00	4.00	1.00
	4Z x 24	Metric -mm	457.2	101.6	101.6	101.6	25.4
	4Z x 36	Std. -in	X.00	4.00	4.00	4.00	1.00
	4Z x 36	Metric -mm	762.0	101.6	101.6	101.6	25.4
	6Z x 36	Std. -in	30.00	6.00	6.00	6.00	2.00
	6Z x 36	Metric -mm	7620	1524	IS? 4	152 4	508
	e x 44	Std. -in	36 00	800	800	800	200
	e x 44	Metric -mm	914.4	203.2	203.2	203.2	50.8
	8Z i 72	Std. -in	64.00	8.00	8.00	8.00	2.00
	8Z i 72	Metric -mm	1625.6	203.2	203.2	203.2	50.8
	16Z i 96	Std. -in	80.00	16.00	16.00	16.00	2.00
	16Z i 96	Metric -mm	2032.0	406.4	406.4	406.4	50.8

D.L. Ricci Corp. Phn: 651-388-8661

5001 Moundview Drive Fax: 651-388-0002

RedWing, MN 55066 Web: www.dlricci.com

U5.A. E-mail: info@diricci.com

Sales, Rental,Technical Support

Anytime. Anywhere.
