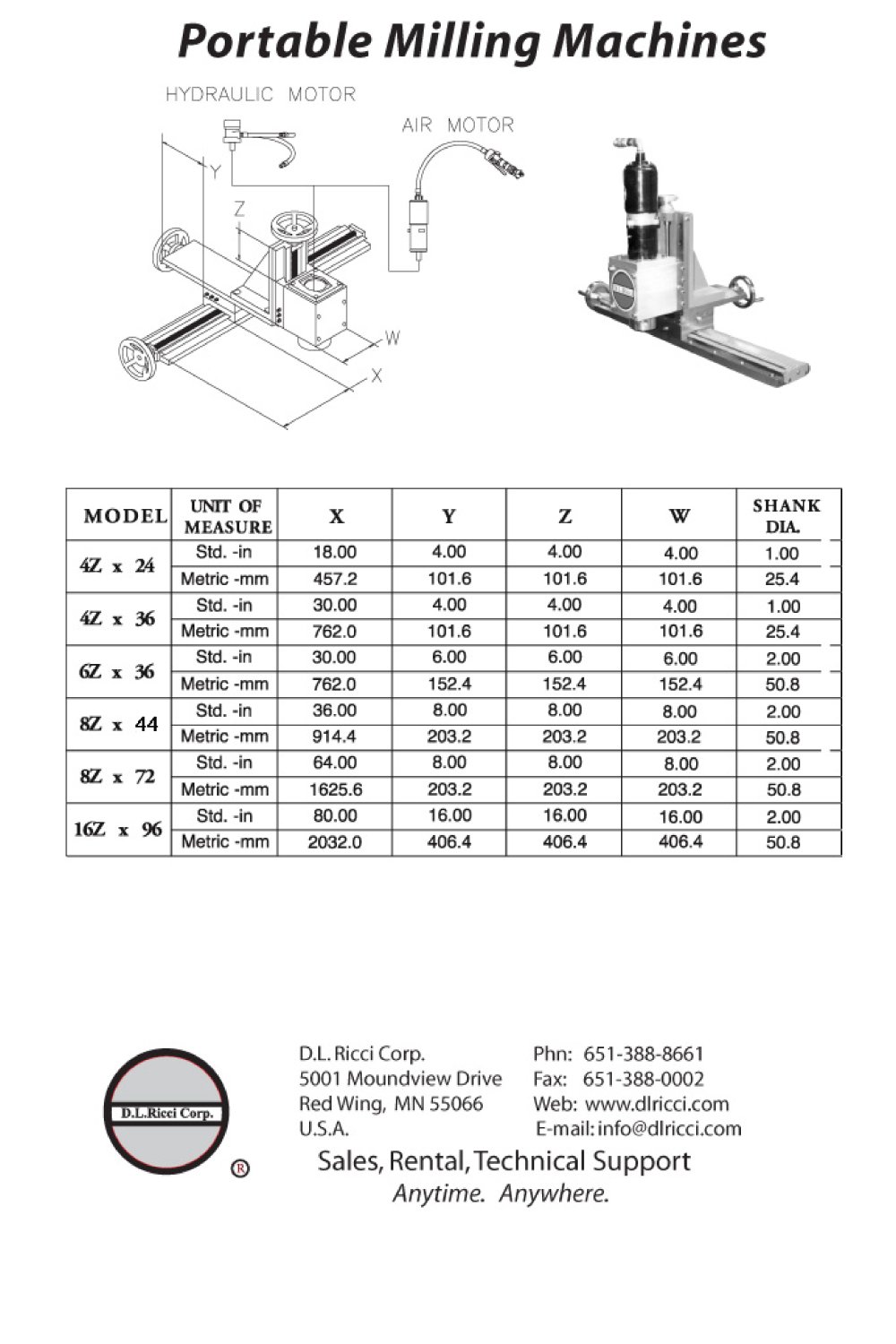

Portable Milling Machines HYDRAULIC MOTOR AIR MOTOR MODEL UNIT OF MEASURE X Y Z W SHANK D1A. 4L x 24 Std. -in 18.00 4.00 4.00 4.00 1.00 Metric -mm 457.2 101.6 101.6 101.6 25.4 4Z x 36 Std. -in 30.00 4.00 4.00 4.00 1.00 Metric -mm 762.0 101.6 101.6 101.6 25.4 6Z x 36 Std. -in 30.00 6.00 6.00 6.00 2.00 Metric -mm 762.0 152.4 152.4 152.4 50.8 8Z x 44 Std. -in 36.00 8.00 8.00 8.00 2.00 Metric -mm 914.4 203.2 203.2 203.2 50.8 8Z x 72 Std. -in 64.00 8.00 8.00 8.00 2.00 Metric -mm 1625.6 203.2 203.2 203.2 50.8 16Z x 96 Std. -in 80.00 16.00 16.00 16.00 2.00 Metric -mm 2032.0 406.4 406.4 406.4 50.8 D.L50ReUS Phn: 651-388-8661 Fax: 651-388-0002 Web: www.dlricci.com E-mail: info@dlricci.com Sales, Rental,Technical Support Anytime. Anywhere.
