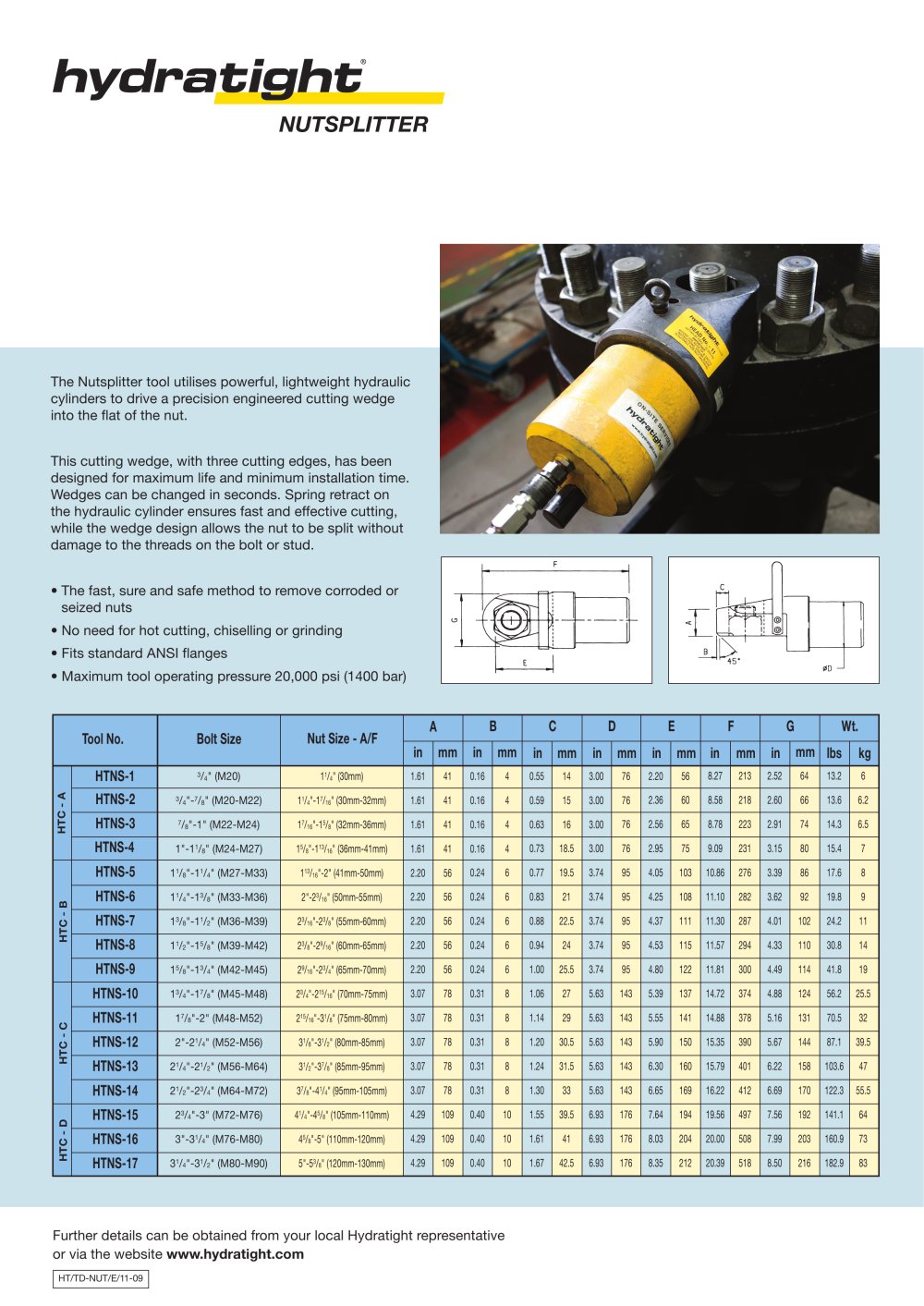

NUTSPLITTER Further details can be obtained from your local Hydratight representative or via the website www.hydratight.com HT/TD-NUT/E/11-09 3/4" (M20) 3/4"-7/8" (M20-M22) 7/8"-1" (M22-M24) 1"-11/8" (M24-M27) 11/8"-11/4" (M27-M33) 11/4"-13/8" (M33-M36) 13/8"-11/2" (M36-M39) 11/2"-15/8" (M39-M42) 15/8"-13/4" (M42-M45) 13/4"-17/8" (M45-M48) 17/8"-2" (M48-M52) 2"-21/4" (M52-M56) 21/4"-21/2" (M56-M64) 21/2"-23/4" (M64-M72) 23/4"-3" (M72-M76) 3"-31/4" (M76-M80) 31/4"-31/2" (M80-M90) 11/4" (30mm) 11/4"-17/16" (30mm-32mm) 17/16"-15/8" (32mm-36mm) 15/8"-113/16" (36mm-41mm) 113/16"-2" (41mm-50mm) 2"-23/16" (50mm-55mm) 23/16"-23/8" (55mm-60mm) 23/8"-29/16" (60mm-65mm) 29/16"-23/4" (65mm-70mm) 23/4"-215/16" (70mm-75mm) 215/16"-31/8" (75mm-80mm) 31/8"-31/2" (80mm-85mm) 31/2"-37/8" (85mm-95mm) 37/8"-41/4" (95mm-105mm) 41/4"-45/8" (105mm-110mm) 45/8"-5" (110mm-120mm) 5"-53/8" (120mm-130mm) 1.61 1.61 1.61 1.61 2.20 2.20 2.20 2.20 2.20 3.07 3.07 3.07 3.07 3.07 4.29 4.29 4.29 41 41 41 41 56 56 56 56 56 78 78 78 78 78 109 109 109 0.16 0.16 0.16 0.16 0.24 0.24 0.24 0.24 0.24 0.31 0.31 0.31 0.31 0.31 0.40 0.40 0.40 4 4 4 4 6 6 6 6 6 8 8 8 8 8 10 10 10 0.55 0.59 0.63 0.73 0.77 0.83 0.88 0.94 1.00 1.06 1.14 1.20 1.24 1.30 1.55 1.61 1.67 14 15 16 18.5 19.5 21 22.5 24 25.5 27 29 30.5 31.5 33 39.5 41 42.5 3.00 3.00 3.00 3.00 3.74 3.74 3.74 3.74 3.74 5.63 5.63 5.63 5.63 5.63 6.93 6.93 6.93 76 76 76 76 95 95 95 95 95 143 143 143 143 143 176 176 176 2.20 2.36 2.56 2.95 4.05 4.25 4.37 4.53 4.80 5.39 5.55 5.90 6.30 6.65 7.64 8.03 8.35 56 60 65 75 103 108 111 115 122 137 141 150 160 169 194 204 212 8.27 8.58 8.78 9.09 10.86 11.10 11.30 11.57 11.81 14.72 14.88 15.35 15.79 16.22 19.56 20.00 20.39 213 218 223 231 276 282 287 294 300 374 378 390 401 412 497 508 518 2.52 2.60 2.91 3.15 3.39 3.62 4.01 4.33 4.49 4.88 5.16 5.67 6.22 6.69 7.56 7.99 8.50 64 66 74 80 86 92 102 110 114 124 131 144 158 170 192 203 216 13.2 13.6 14.3 15.4 17.6 19.8 24.2 30.8 41.8 56.2 70.5 87.1 103.6 122.3 141.1 160.9 182.9 6 6.2 6.5 7 8 9 11 14 19 25.5 32 39.5 47 55.5 64 73 83 Tool No. HTNS-1 HTNS-2 HTNS-3 HTNS-4 HTNS-5 HTNS-6 HTNS-7 HTNS-8 HTNS-9 HTNS-10 HTNS-11 HTNS-12 HTNS-13 HTNS-14 HTNS-15 HTNS-16 HTNS-17 HTC - D HTC - C HTC - B HTC - A Bolt Size Nut Size - A/F A in mm B in mm C in mm D in mm E in mm F in mm G in mm Wt. lbs kg The Nutsplitter tool utilises powerful, lightweight hydraulic cylinders to drive a precision engineered cutting wedge into the flat of the nut. This cutting wedge, with three cutting edges, has been designed for maximum life and minimum installation time. Wedges can be changed in seconds. Spring retract on the hydraulic cylinder ensures fast and effective cutting, while the wedge design allows the nut to be split without damage to the threads on the bolt or stud. • The fast, sure and safe method to remove corroded or seized nuts • No need for hot cutting, chiselling or grinding • Fits standard ANSI flanges • Maximum tool operating pressure 20,000 psi (1400 bar)
