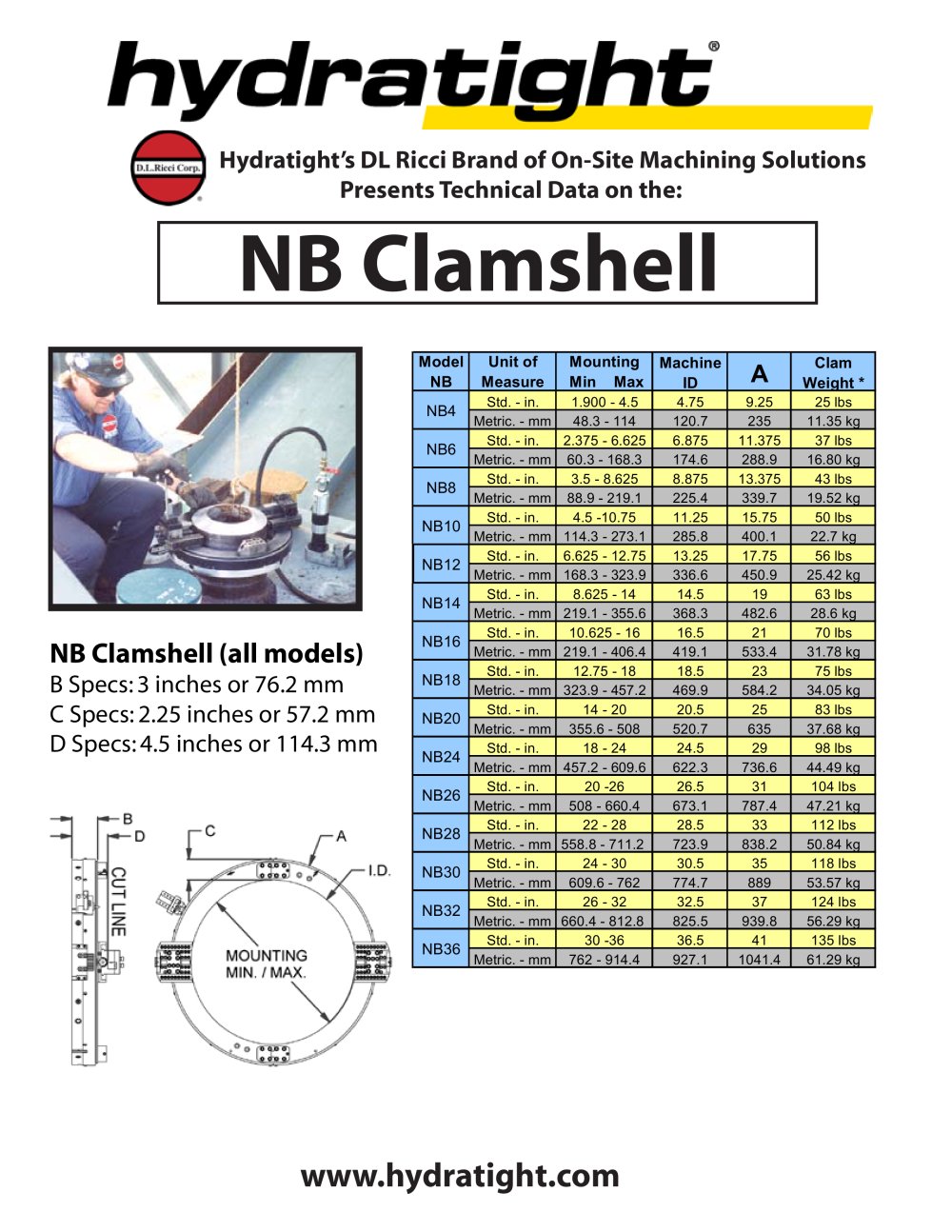

Hydratight’s DL Ricci Brand of On-Site Machining Solutions Presents Technical Data on the: NB Clamshell NB Clamshell (all models) B Specs: 3 inches or 76.2 mm C Specs: 2.25 inches or 57.2 mm D Specs: 4.5 inches or 114.3 mm www.hydratight.com Model NB Unit of Measure Mounting Min Max Machine ID A Clam Weight * Std. - in. 1.900 - 4.5 4.75 9.25 25 lbs Metric. - mm 48.3 - 114 120.7 235 11.35 kg Std. - in. 2.375 - 6.625 6.875 11.375 37 lbs Metric. - mm 60.3 - 168.3 174.6 288.9 16.80 kg Std. - in. 3.5 - 8.625 8.875 13.375 43 lbs Metric. - mm 88.9 - 219.1 225.4 339.7 19.52 kg Std. - in. 4.5 -10.75 11.25 15.75 50 lbs Metric. - mm 114.3 - 273.1 285.8 400.1 22.7 kg Std. - in. 6.625 - 12.75 13.25 17.75 56 lbs Metric. - mm 168.3 - 323.9 336.6 450.9 25.42 kg Std. - in. 8.625 - 14 14.5 19 63 lbs Metric. - mm 219.1 - 355.6 368.3 482.6 28.6 kg Std. - in. 10.625 - 16 16.5 21 70 lbs Metric. - mm 219.1 - 406.4 419.1 533.4 31.78 kg Std. - in. 12.75 - 18 18.5 23 75 lbs Metric. - mm 323.9 - 457.2 469.9 584.2 34.05 kg Std. - in. 14 - 20 20.5 25 83 lbs Metric. - mm 355.6 - 508 520.7 635 37.68 kg Std. - in. 18 - 24 24.5 29 98 lbs Metric. - mm 457.2 - 609.6 622.3 736.6 44.49 kg Std. - in. 20 -26 26.5 31 104 lbs Metric. - mm 508 - 660.4 673.1 787.4 47.21 kg Std. - in. 22 - 28 28.5 33 112 lbs Metric. - mm 558.8 - 711.2 723.9 838.2 50.84 kg Std. - in. 24 - 30 30.5 35 118 lbs Metric. - mm 609.6 - 762 774.7 889 53.57 kg Std. - in. 26 - 32 32.5 37 124 lbs Metric. - mm 660.4 - 812.8 825.5 939.8 56.29 kg Std. - in. 30 -36 36.5 41 135 lbs Metric. - mm 762 - 914.4 927.1 1041.4 61.29 kg NB30 NB32 NB36 NB20 NB24 NB26 NB28 NB12 NB14 NB16 NB18 NB4 NB6 NB8 NB10
