MS-JTL (MS-Journal Turning Lathe) Machine - Hydratight - #1

Text version of the page

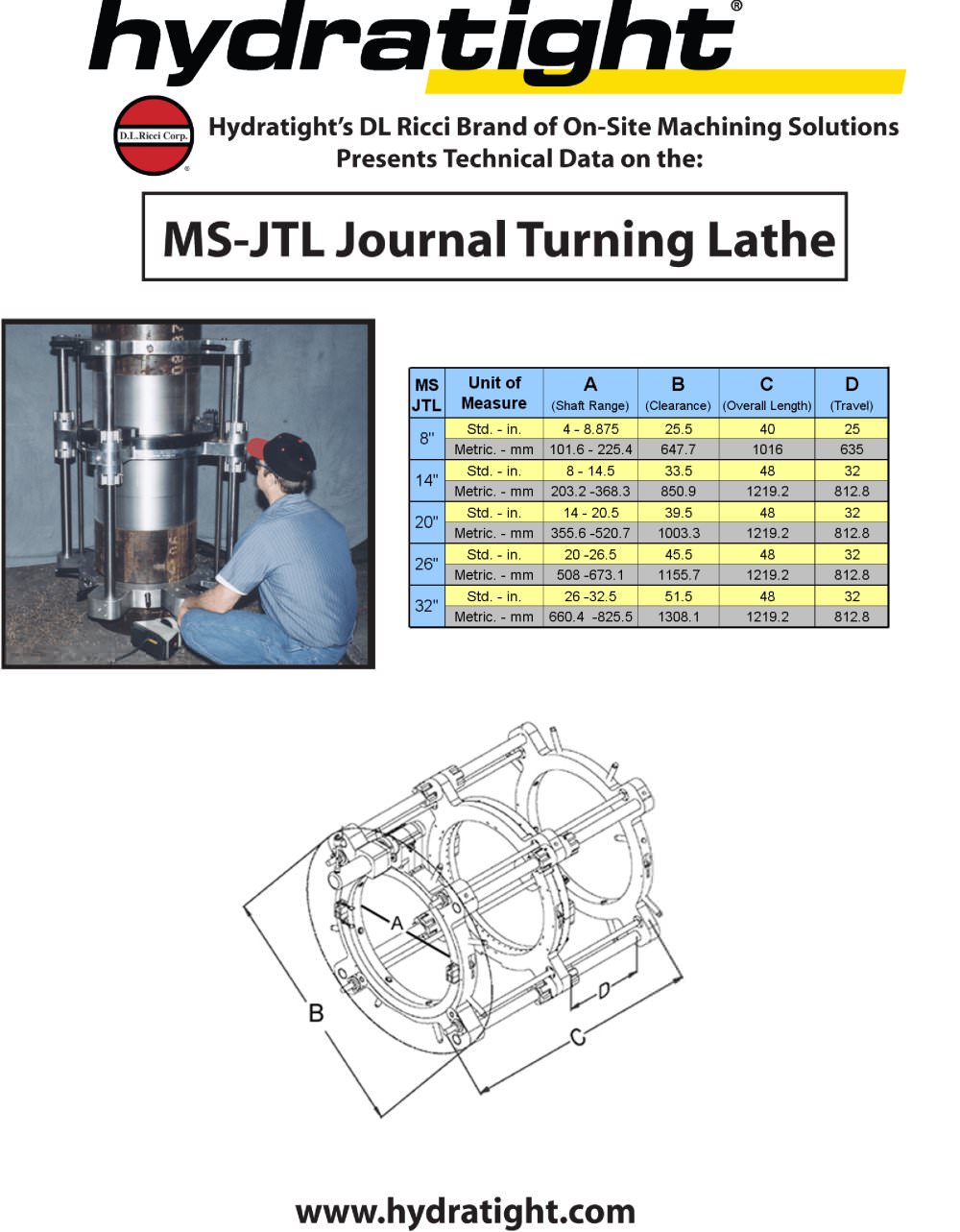

® hydratÊght Hydratight's DL Ricci Brand of On-Site Machining Solutions Présents Technical Data on the: MS-JTL Journal Turning Lathe MS Unit of A B c D JTL Measure (Shaft Range) (Clearance) (Overall Length) (Travel) Std. - in. 4 - 8.875 25.5 40 25 o Metric. - mm 101.6-225.4 647.7 1016 635 1 A" Std. - in. 8- 14.5 33.5 48 32 I *f Metric. - mm 203.2 -368.3 850.9 1219.2 812.8 on" Std. - in. 14-20.5 39.5 48 32 zu Metric. - mm 355.6 -520.7 1003.3 1219.2 812.8 OR" Std. - in. 20 -26.5 45.5 48 32 ZO Metric. - mm 508 -673.1 1155.7 1219.2 812.8 Std. - in. 26 -32.5 51.5 48 32 oz Metric. - mm 660.4 -825.5 1308.1 1219.2 812.8 www.hydratight.com
