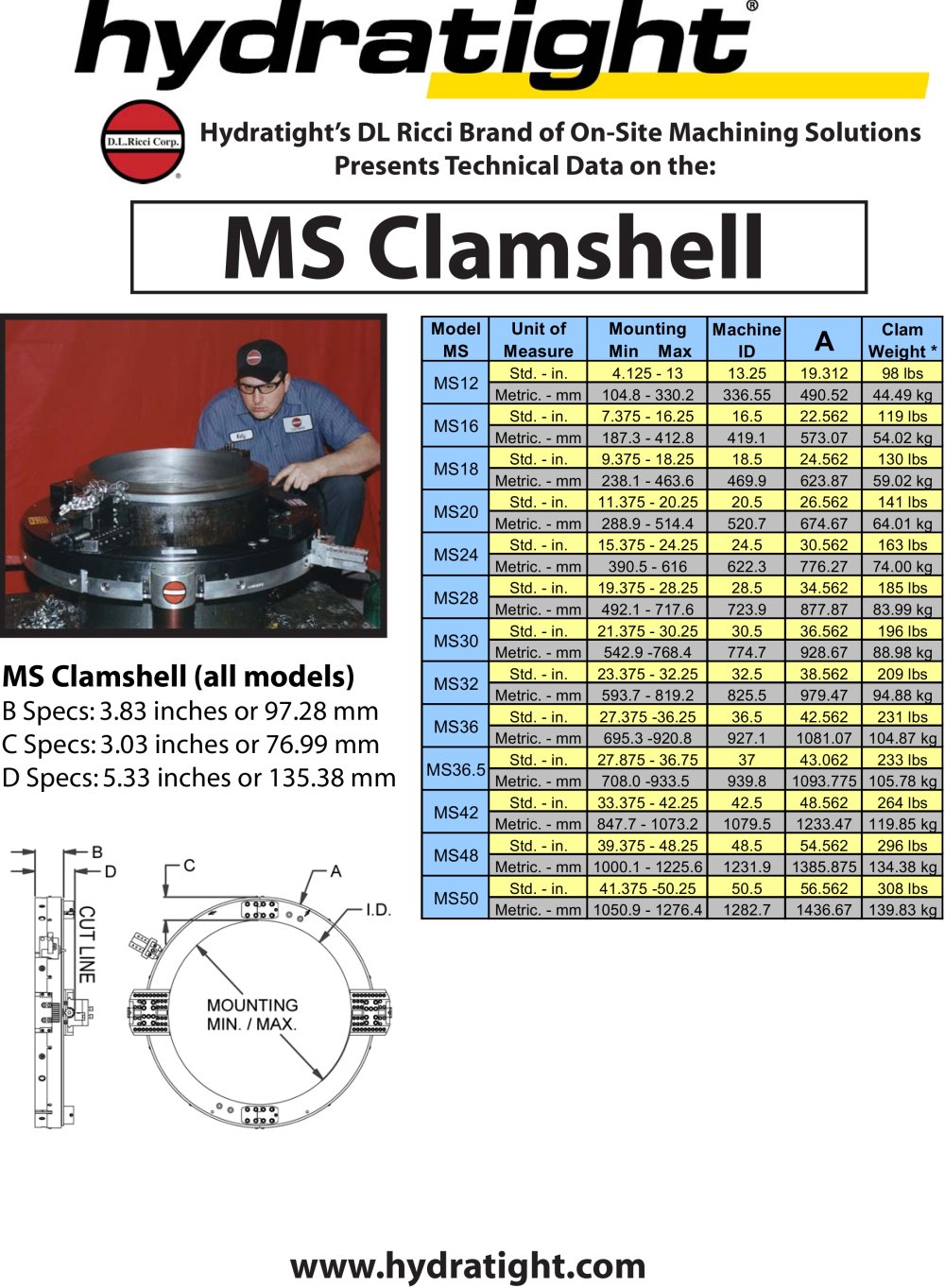

Hydratight’s DL Ricci Brand of On-Site Machining Solutions Presents Technical Data on the: MS Clamshell MS Clamshell (all models) B Specs: 3.83 inches or 97.28 mm C Specs: 3.03 inches or 76.99 mm D Specs: 5.33 inches or 135.38 mm www.hydratight.com Model MS Unit of Measure Mounting Min Max Machine ID A Clam Weight * Std. - in. 4.125 - 13 13.25 19.312 98 lbs Metric. - mm 104.8 - 330.2 336.55 490.52 44.49 kg Std. - in. 7.375 - 16.25 16.5 22.562 119 lbs Metric. - mm 187.3 - 412.8 419.1 573.07 54.02 kg Std. - in. 9.375 - 18.25 18.5 24.562 130 lbs Metric. - mm 238.1 - 463.6 469.9 623.87 59.02 kg Std. - in. 11.375 - 20.25 20.5 26.562 141 lbs Metric. - mm 288.9 - 514.4 520.7 674.67 64.01 kg Std. - in. 15.375 - 24.25 24.5 30.562 163 lbs Metric. - mm 390.5 - 616 622.3 776.27 74.00 kg Std. - in. 19.375 - 28.25 28.5 34.562 185 lbs Metric. - mm 492.1 - 717.6 723.9 877.87 83.99 kg Std. - in. 21.375 - 30.25 30.5 36.562 196 lbs Metric. - mm 542.9 -768.4 774.7 928.67 88.98 kg Std. - in. 23.375 - 32.25 32.5 38.562 209 lbs Metric. - mm 593.7 - 819.2 825.5 979.47 94.88 kg Std. - in. 27.375 -36.25 36.5 42.562 231 lbs Metric. - mm 695.3 -920.8 927.1 1081.07 104.87 kg Std. - in. 27.875 - 36.75 37 43.062 233 lbs Metric. - mm 708.0 -933.5 939.8 1093.775 105.78 kg Std. - in. 33.375 - 42.25 42.5 48.562 264 lbs Metric. - mm 847.7 - 1073.2 1079.5 1233.47 119.85 kg Std. - in. 39.375 - 48.25 48.5 54.562 296 lbs Metric. - mm 1000.1 - 1225.6 1231.9 1385.875 134.38 kg Std. - in. 41.375 -50.25 50.5 56.562 308 lbs Metric. - mm 1050.9 - 1276.4 1282.7 1436.67 139.83 kg MS12 MS16 MS18 MS20 MS24 MS28 MS30 MS32 MS50 MS36 MS36.5 MS42 MS48
