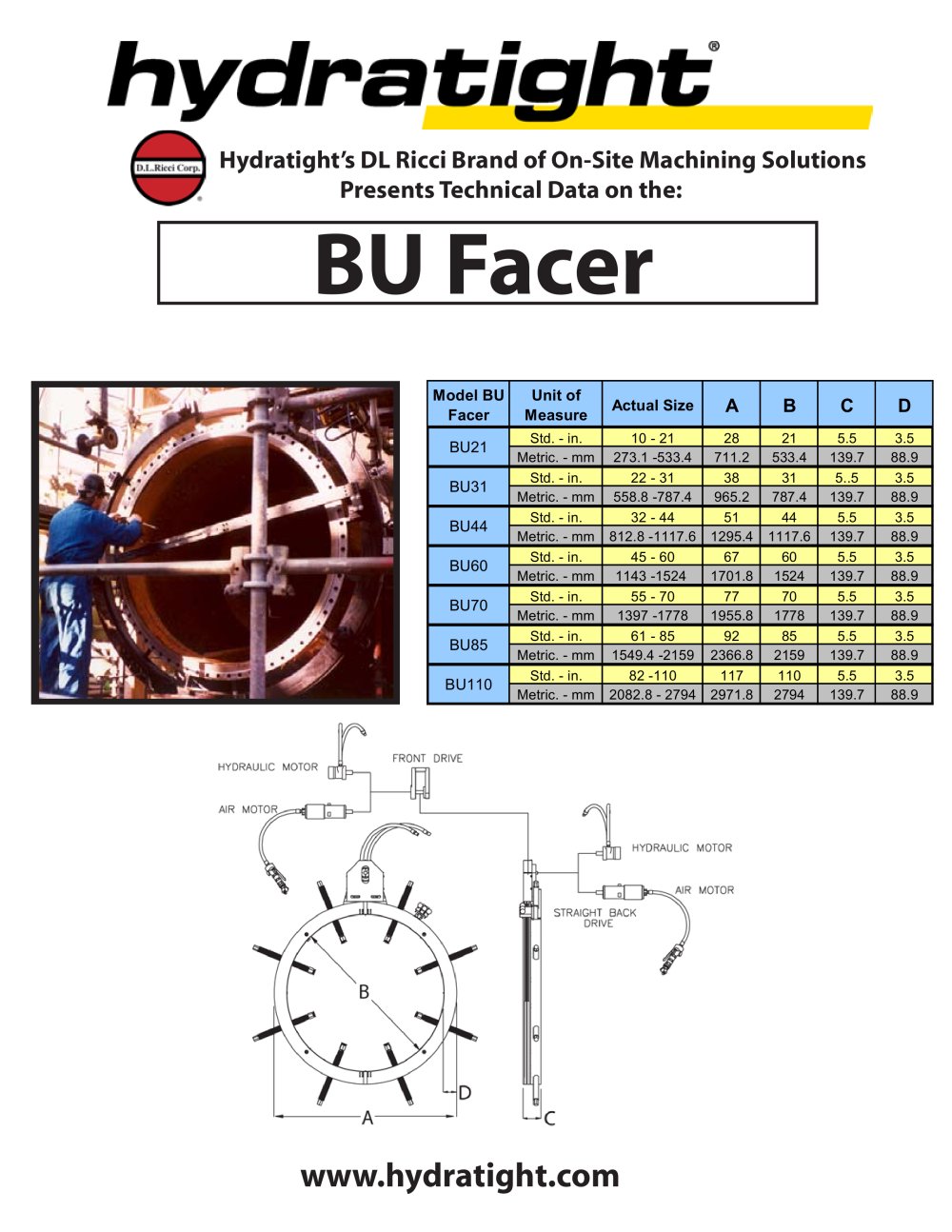

Hydratight’s DL Ricci Brand of On-Site Machining Solutions Presents Technical Data on the: BU Facer www.hydratight.com Model BU Facer Unit of Measure Actual Size A B C D Std. - in. 10 - 21 28 21 5.5 3.5 Metric. - mm 273.1 -533.4 711.2 533.4 139.7 88.9 Std. - in. 22 - 31 38 31 5..5 3.5 Metric. - mm 558.8 -787.4 965.2 787.4 139.7 88.9 Std. - in. 32 - 44 51 44 5.5 3.5 Metric. - mm 812.8 -1117.6 1295.4 1117.6 139.7 88.9 Std. - in. 45 - 60 67 60 5.5 3.5 Metric. - mm 1143 -1524 1701.8 1524 139.7 88.9 Std. - in. 55 - 70 77 70 5.5 3.5 Metric. - mm 1397 -1778 1955.8 1778 139.7 88.9 Std. - in. 61 - 85 92 85 5.5 3.5 Metric. - mm 1549.4 -2159 2366.8 2159 139.7 88.9 Std. - in. 82 -110 117 110 5.5 3.5 Metric. - mm 2082.8 - 2794 2971.8 2794 139.7 88.9 BU70 BU85 BU110 BU21 BU31 BU44 BU60
