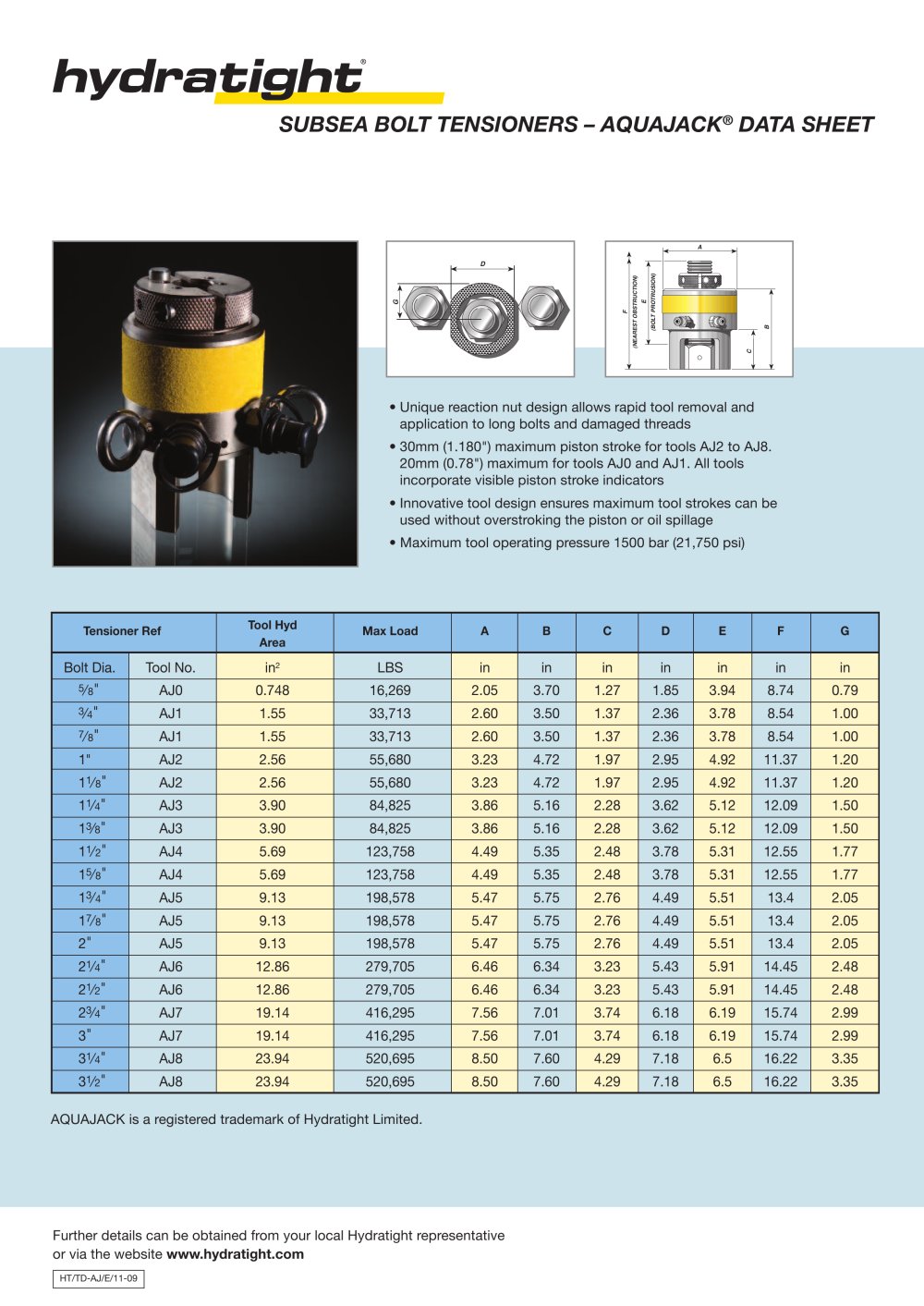

D G A B C E F (NEAREST OBSTRUCTION) (BOLT PROTRUSION) • Unique reaction nut design allows rapid tool removal and application to long bolts and damaged threads • 30mm (1.180") maximum piston stroke for tools AJ2 to AJ8. 20mm (0.78") maximum for tools AJ0 and AJ1. All tools incorporate visible piston stroke indicators • Innovative tool design ensures maximum tool strokes can be used without overstroking the piston or oil spillage • Maximum tool operating pressure 1500 bar (21,750 psi) AQUAJACK is a registered trademark of Hydratight Limited. SUBSEA BOLT TENSIONERS – AQUAJACK® DATA SHEET Further details can be obtained from your local Hydratight representative or via the website www.hydratight.com HT/TD-AJ/E/11-09 Tensioner Ref Tool Hyd Max Load A B C D E F G Area Bolt Dia. Tool No. in2 LBS in in in in in in in 58" AJ0 0.748 16,269 2.05 3.70 1.27 1.85 3.94 8.74 0.79 34" AJ1 1.55 33,713 2.60 3.50 1.37 2.36 3.78 8.54 1.00 78" AJ1 1.55 33,713 2.60 3.50 1.37 2.36 3.78 8.54 1.00 1" AJ2 2.56 55,680 3.23 4.72 1.97 2.95 4.92 11.37 1.20 118" AJ2 2.56 55,680 3.23 4.72 1.97 2.95 4.92 11.37 1.20 114" AJ3 3.90 84,825 3.86 5.16 2.28 3.62 5.12 12.09 1.50 138" AJ3 3.90 84,825 3.86 5.16 2.28 3.62 5.12 12.09 1.50 112" AJ4 5.69 123,758 4.49 5.35 2.48 3.78 5.31 12.55 1.77 158" AJ4 5.69 123,758 4.49 5.35 2.48 3.78 5.31 12.55 1.77 134" AJ5 9.13 198,578 5.47 5.75 2.76 4.49 5.51 13.4 2.05 178" AJ5 9.13 198,578 5.47 5.75 2.76 4.49 5.51 13.4 2.05 2" AJ5 9.13 198,578 5.47 5.75 2.76 4.49 5.51 13.4 2.05 214" AJ6 12.86 279,705 6.46 6.34 3.23 5.43 5.91 14.45 2.48 212" AJ6 12.86 279,705 6.46 6.34 3.23 5.43 5.91 14.45 2.48 234" AJ7 19.14 416,295 7.56 7.01 3.74 6.18 6.19 15.74 2.99 3" AJ7 19.14 416,295 7.56 7.01 3.74 6.18 6.19 15.74 2.99 314" AJ8 23.94 520,695 8.50 7.60 4.29 7.18 6.5 16.22 3.35 312" AJ8 23.94 520,695 8.50 7.60 4.29 7.18 6.5 16.22 3.35
