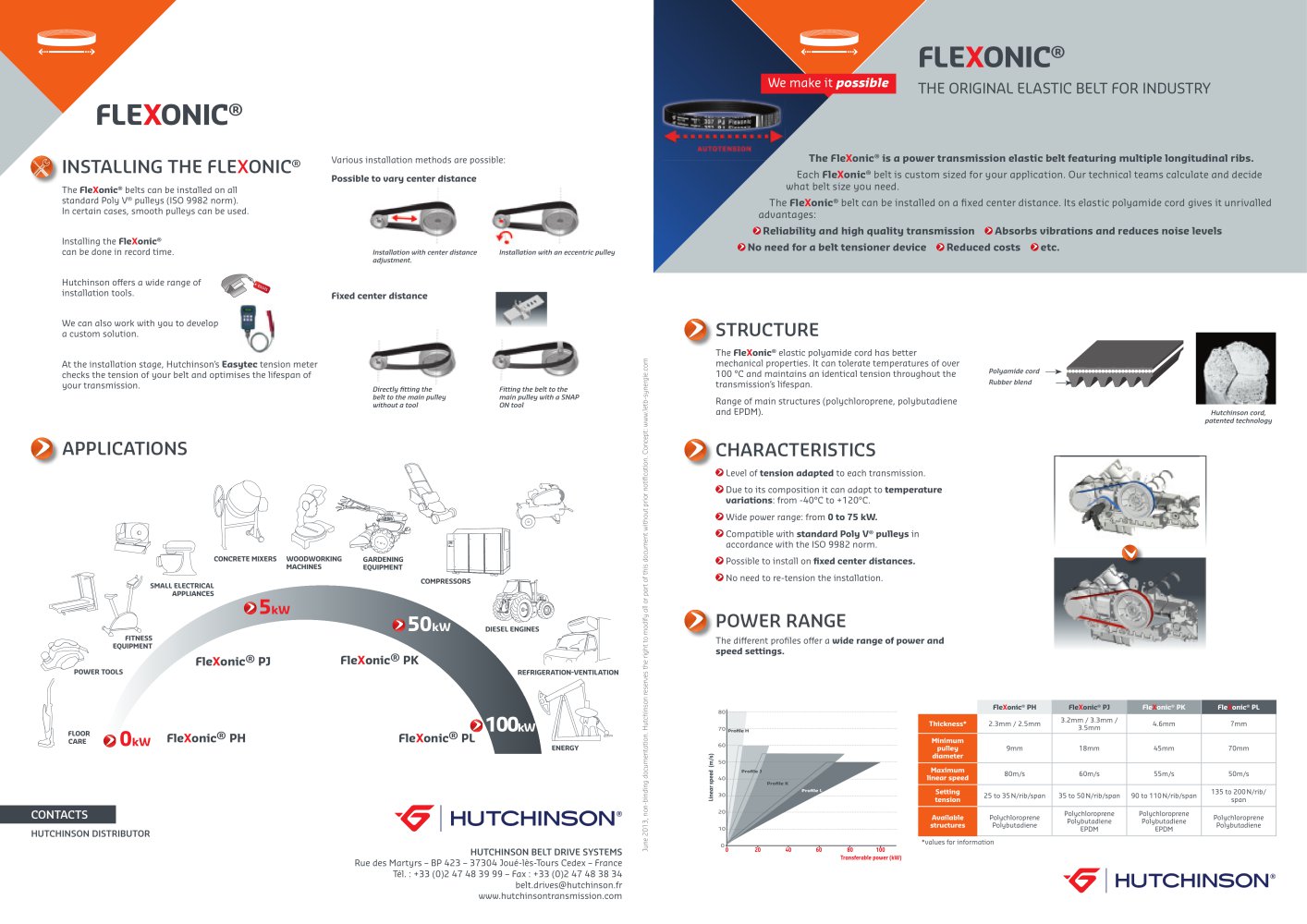

FLEXONIC® FleXonic®
The first elastic belt for industry
TheFleXonic® is a powerful
transmission belt with grooves along its length.
Each FleXonic® belt is custom sized for your application. Our technical teams calculate and decide what belt size you need.
The FleXonic® belt can be installed on a fixed centre-to-centre distance. Its elastic polyamide cord gives it unrivalled advantages:
. Reliability and high quality transmission
. Absorbs vibrations and reduces noise levels
. No need for a belt tensioner device
. Reduced costs
. etc.
Structure
The FleXonic® elastic polyamide cord has better mechanical properties. It can tolerate temperatures of over 100 °C and maintains an identical tension throughout the the transmission's lifespan.
Range of main structures (polychloroprene, polybutadiene and EPDM)
Characteristics Level of tension adapted to each transmission Due to its composition it can adapt to temperature variations :
from -40°C to +120°C Wide power range: from 0 to 100 kW Compatible with standard Poly V® pulleys in accordance with the ISO 9982 norm Possible to install on fixed centre-to-centre distances No need to re-tension the installation
Power range
The different profiles offer a wide range of power and speed settings.
Hutchinson cord, patented technology
Polyamide cord
Rubber blendTransferable power (kW)70806030201000204060801005040Linear speed (
m/s)Profile LProfile KProfile HProfile J
FleXonic® PH
FleXonic® PJ
FleXonic® PK
FleXonic® PL
Thickness
2.3mm / 2.5mm
3.2mm / 3.3mm / 3.5mm
4.6mm
7mm
Minimum pulley diameter
9mm
18mm
45mm
70mm
Maximum linear speed
80m/s
60m/s
55m/s
50m/s
Setting tension
20 to 30 N/rib/span
30 to 50 N/rib/span
70 to 90 N/rib/span
120 to 180 N/rib/span
Available structures
Polychloroprene Polybutadiene
Polychloroprene Polybutadiene
EPDM
Polychloroprene Polybutadiene
EPDM
Polychloroprene Polybutadiene
