Hand Fired System

HOT WATERSUPPLY

EXHAUSTSTACK

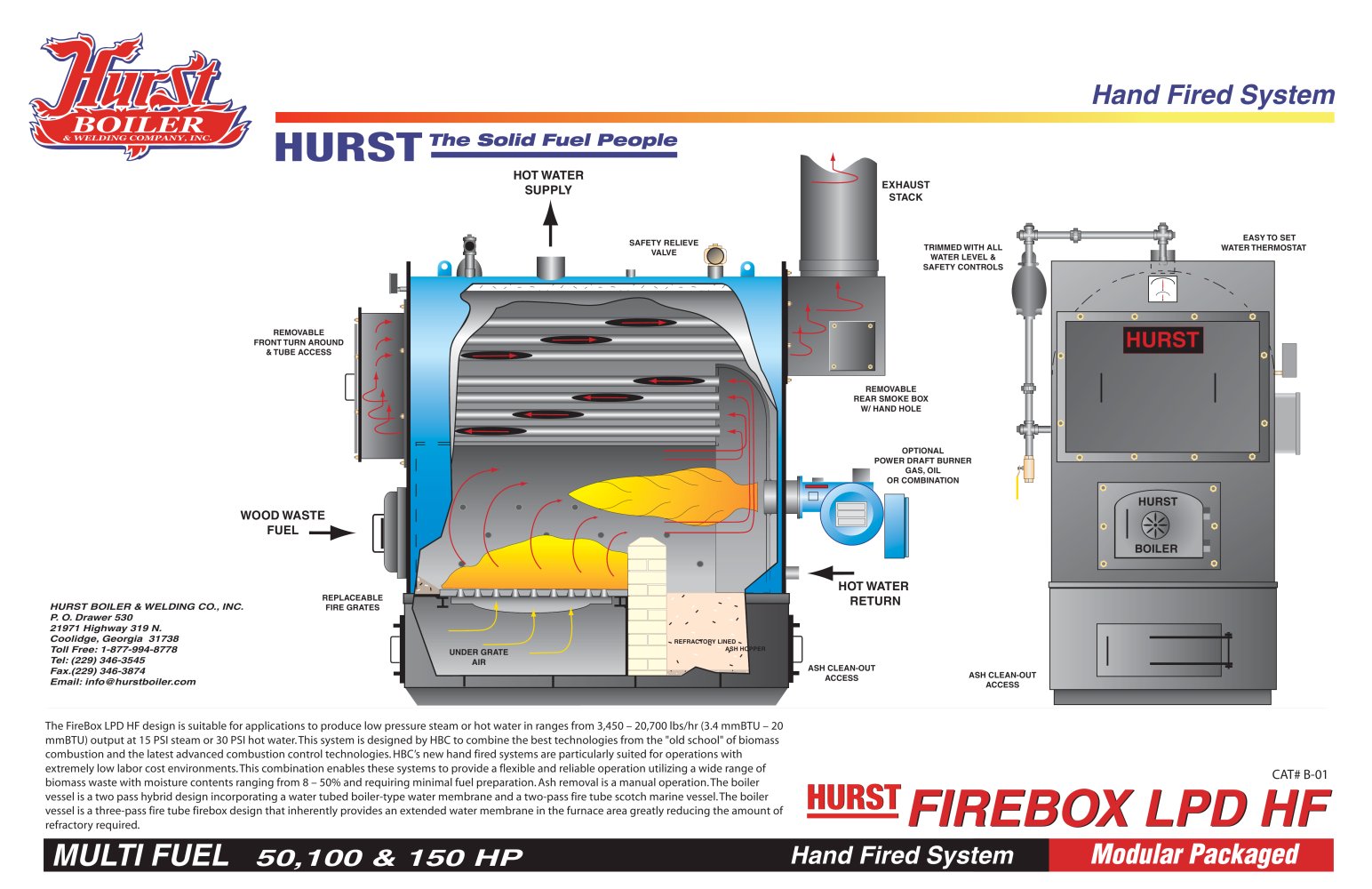

SAFETY RELIEVEVALVEREMOVABLEFRONT TURN AROUND& TUBE ACCESSREMOVABLEREAR SMOKE BOXW/ HAND HOLE REPLACEABLEFIRE GRATES EASY TO SETWATER THERMOSTAT TRIMMED WITH ALLWATER LEVEL &SAFETY CONTROLS

HURST

HURSTBOILER

HOT WATER RETURNWOOD WASTEFUEL

HURST BOILER & WELDING CO., INC.P. O. Drawer 530 21971 Highway 319 N. Coolidge, Georgia 31738Toll Free: 1-877-994-8778 Tel: (229) 346-3545 Fax.(229) 346-3874Email: info@hurstboiler.com

REFRACTORY LINED ASH HOPPER UNDER GRATE AIR ASH CLEAN-OUTACCESS OPTIONALPOWER DRAFT BURNERGAS, OILOR COMBINATION ASH CLEAN-OUTACCESS

The FireBox LPD HF design is suitable for applications to produce low pressure steam or hot water in ranges from 3,450 – 20,700 lbs/hr (3.4 mmBTU – 20 mmBTU) output at 15 PSI steam or 30 PSI hot water. This system is designed by HBC to combine the best technologies from the "old school" of biomass combustion and the latest advanced combustion control technologies. HBC’s new hand fired systems are particularly suited for operations with extremely low labor cost environments. This combination enables these systems to provide a flexible and reliable operation utilizing a wide range of biomass waste with moisture contents ranging from 8 – 50% and requiring minimal fuel preparation. Ash removal is a manual operation. The boiler vessel is a two pass hybrid design incorporating a water tubed boiler-type water membrane and a two-pass fire tube scotch marine vessel. The boiler vessel is a three-pass fire tube firebox design that inherently provides an extended water membrane in the furnace area greatly reducing the amount of refractory required.

CAT# B-01

MULTI FUEL

50,100 & 150 HP Hand Fired System

FIREBOX LPD HF FIREBOX LPD HF
