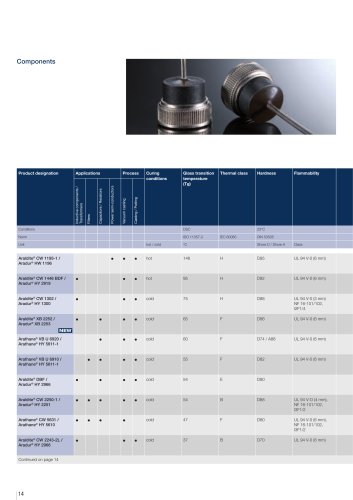

Electronics Selector Guide - 14 / 24 Pages

Components ^^^^^^^^^^^^

K^TT^S ..11 A E^k

Conditions DSC 23°C

Norm ISO 11357-2 IEC 60085 DIN 53505

Unit hot/cold °C Shore D / Shore A Class

Araldite® CW 1195-1 / • • • hot 146 H D95 UL 94 V-0 (6 mm)

Aradur® HW 1196

Araldite® CW 1446 BDF/ • • • hot 95 H D92 UL 94 V-0 (6 mm)

Aradur® HY 2919

Araldite® CW 1302/ • • • cold 75 H D88 UL 94 V-0 (3 mm)

Aradur® HY 1300 NF 16-101/102,

I2F1/4

Araldite® XB 2252 / • • • • cold 65 F D86 UL 94 V-0 (6 mm)

Aradur® XB 2253

nan

Arathane® VB U 6920 / • • • cold 60 F D74/A88 UL 94 V-0 (6 mm)

Arathane® HY 5611 -1

Arathane® VB U 6910/ • • • • cold 55 F D82 UL 94 V-0 (6 mm)

Arathane® HY 5611 -1

Araldite® DBF/ • • • • cold 54 E D80

Aradur® HY 2966

Araldite® CW 2250-1 / I • • • • • cold 54 B D88 UL 94 V-O (4 mm),

Aradur® HY 2251 NF 16-101/102,

I3F1/2

Arathane® CW 5631 / • • • • cold 47 F D80 UL 94 V-0 (6 mm),

Arathane® HY 5610 NF 16-101/102,

I3F1/2

Araldite® CW 2243-2L/ • • • cold 37 B D70 UL 94 V-0 (6 mm)

Continued on page 14

14
