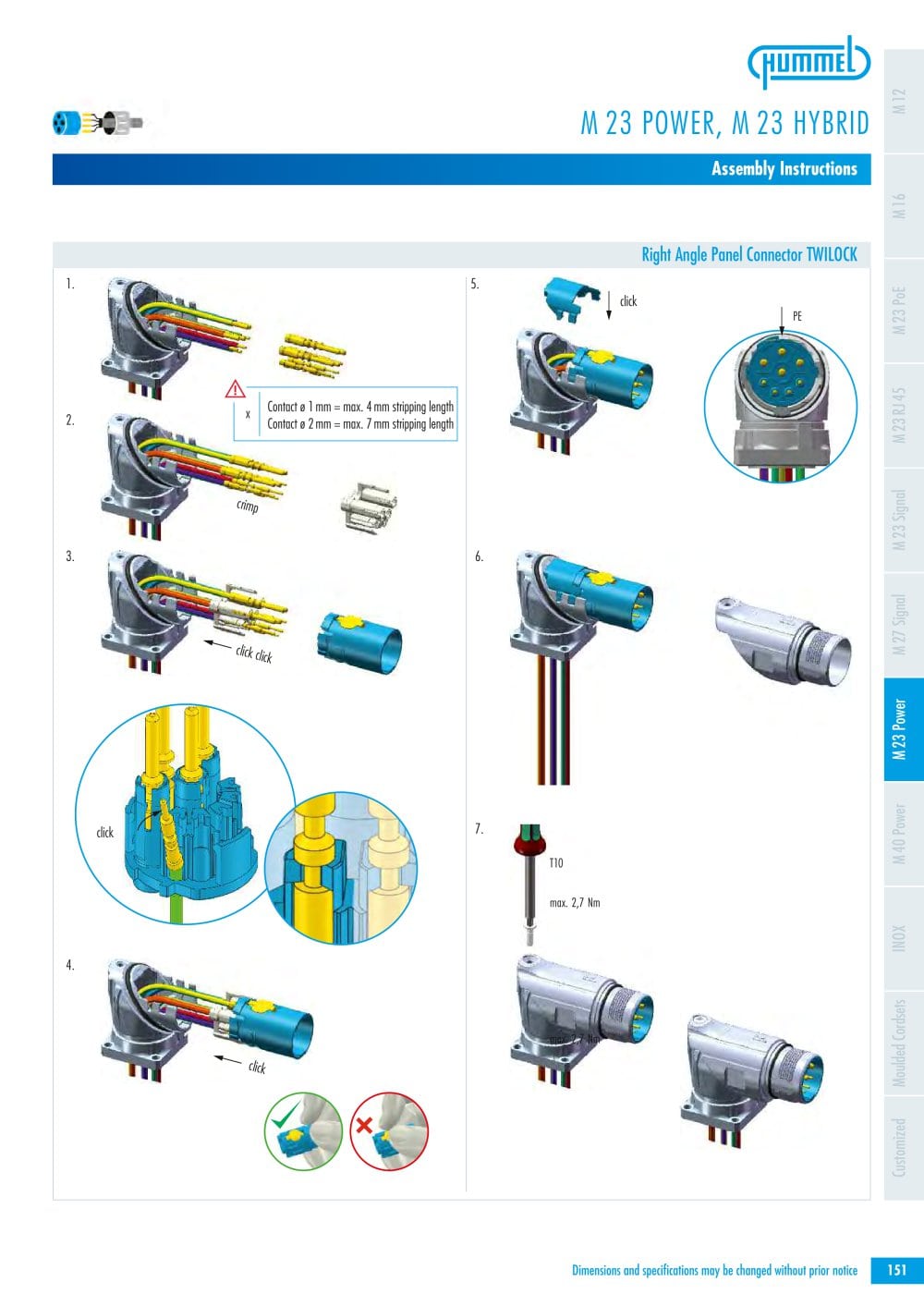

Technical Data TWILOCK Connectors Mechanical Data Housing Materials and Technical Data Copper-Zinc alloy Die Casting Housing surface Nickel plated, other surface upon request Inserts (for contacts) Thermoplastic Polyamid PA 6 (Nylon 6/6), PBT Contacts Brass Alloy Contact surface at point of contact Nickel and gold plated (0,25 μm Au) Minimum mating cycles > 300 Seals / O-Rings Buna-N standard optional Viton® (Viton is a registered trademark of DuPont) Temperature range -40° C – 125° C (-40 °F – 257 °F) Type of contacts M 16 Crimp, dip-solder (PCB) Type of contacts signal M 23 Crimp, solder, dip-solder (PCB) Type of contacts power M 23, M 40 Crimp Protection IP 67 / IP 69 K per EN 60 529 (connected), NEMA 4x Fire protection class V-0 Additional Information Electrical data see standard program Connectors M 16 Signal Connectors M 23 Power Connectors M 23 ! page 17 page 65 page 107 Inserts and contacts see standard program Connectors M 16 Signal Connectors M 23 Power Connectors M 23 page 22 page 74 page 114 We do not recommend disconnecting or connecting HUMMEL Connectors under load. Characteristics HUMMEL TWILOCK Connectors guarantee: - Quick connecting cycle - High protection rate - Easy connection / disconnection even under tight space conditions Dimensions and specifications may be changed without prior notice 151
