Setting Standards
HSK-Industry Standard
also in
+ Halogen- and phospherous-free
+ Fire protection class V0 according to UL 94
+ UL f1 UV-stable HSK Black Nylon
+ Liquid tight per NEMA 4x & 6 to 150 PSIG (IP 68 to 10 bar) according to DIN EN 60529
+ Patented ratchet and spline secures the dome nut on the body

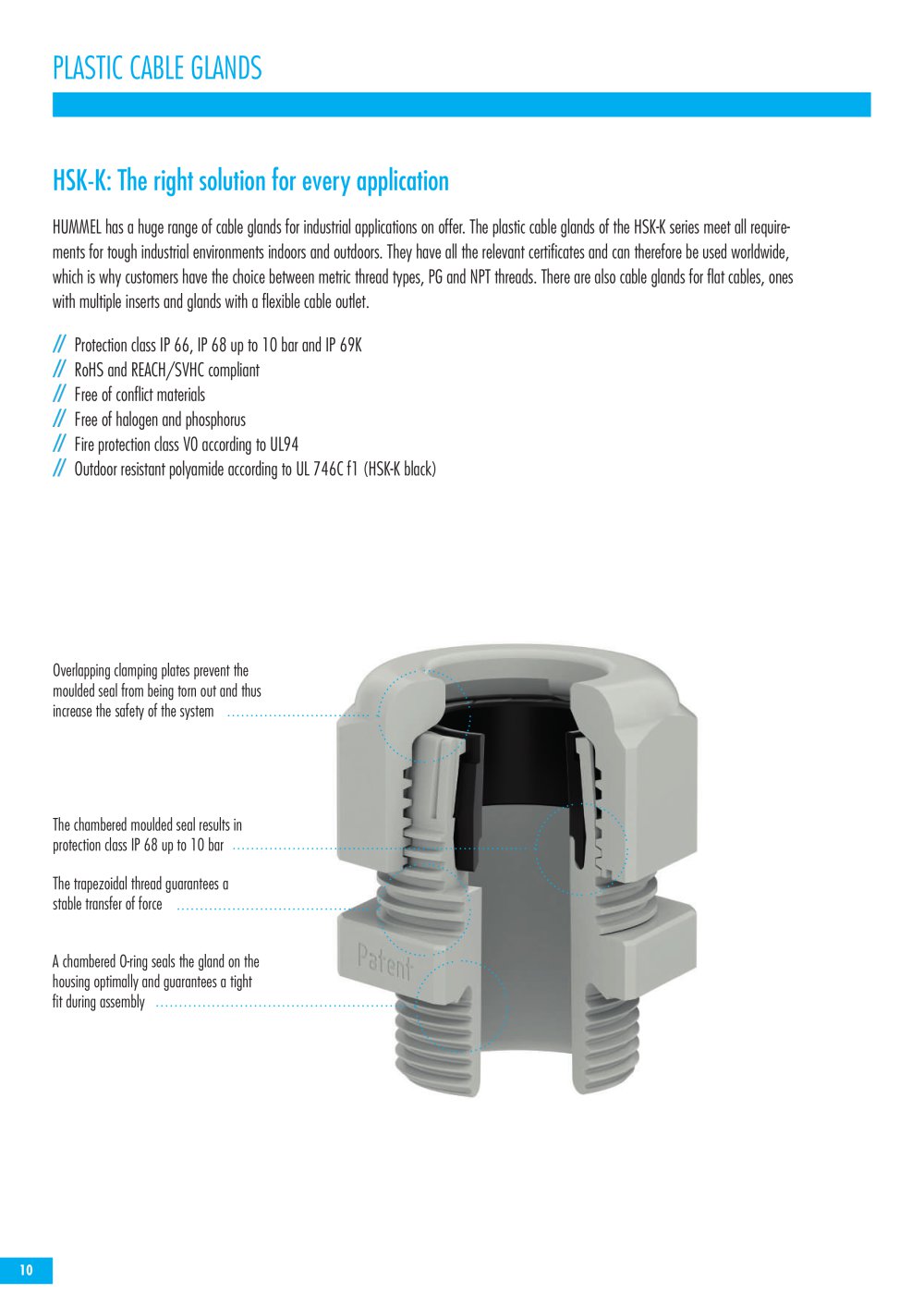

HSK-K
Flexible overlapping clamping
splines prevent the form seal
from being pulled out of the
fitting
Flexible overlapping clamping
splines prevent the form seal
from being pulled out of the
fitting
The form seal allows for an
IP 68 (10 bar) rating
The internal sealing edge
results in a superior seal
between the splined Nylon
clamping insert and the nickel
plated brass body
The rugged lead screw results
in a dependable transmission
of force between nut and body
The form seal allows for an
IP 68 (10 bar) rating
The concentric seal ridge and
molded groove for an optional
O-Ring results in a liquid tight
seal between body and housing
10
HSK-M
Rotation of the cable during
installation is prevented due
to the internal splines
Products starting on page 13
