Universal Joints
16Pages

{{requestButtons}}

Catalog excerpts

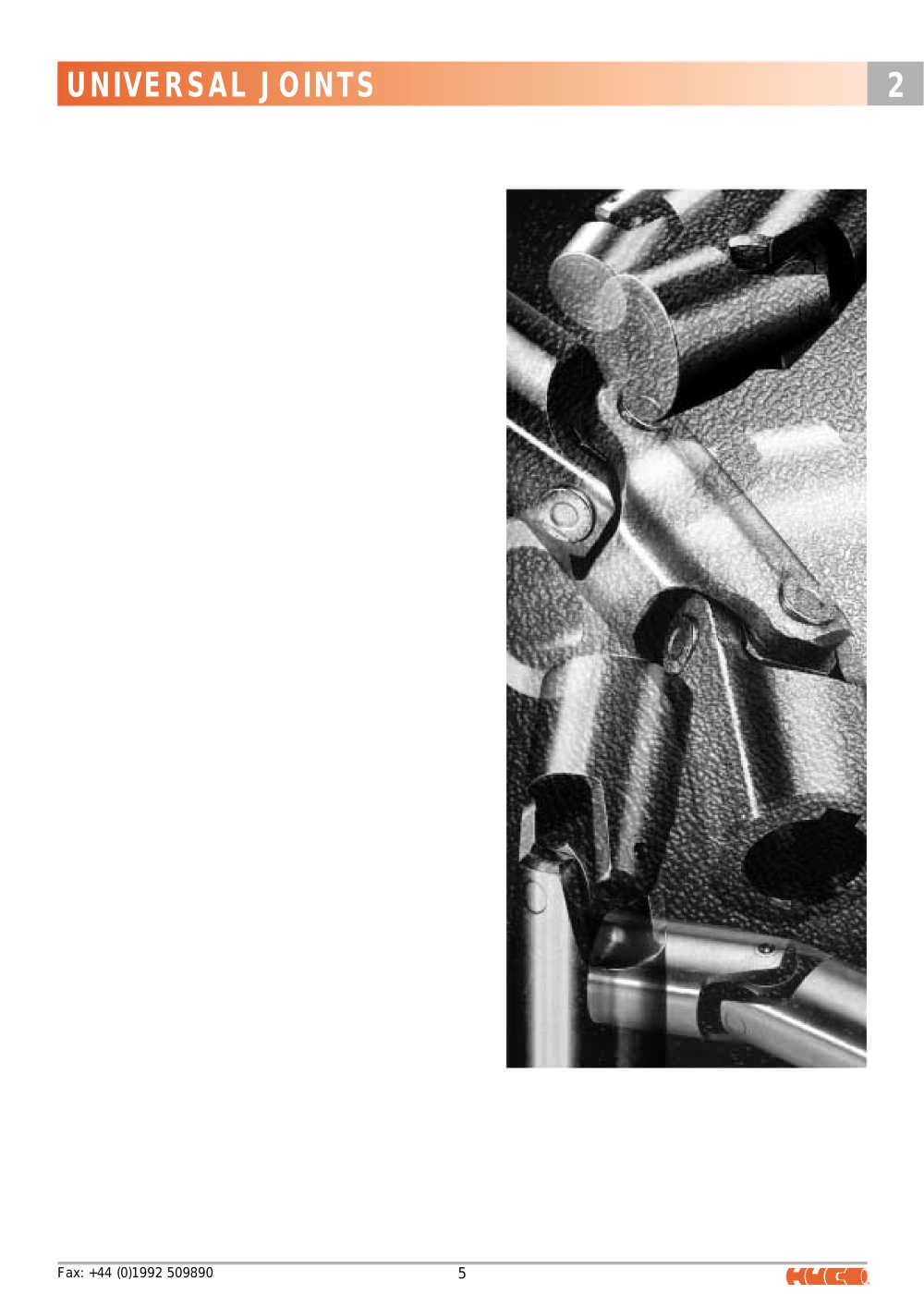

Universal Joints - 1

UNIVERSAL JOINTS

Open the catalog to page 1
Universal Joints - 2

UNIVERSAL JOINTS basic principles Constant velocity output can be restored by using a double joint or by connecting two single joints back to back. Two rules must be observed: Universal joints (U/J's) transmit rotation from one shaft placed end to end with another. They will operate at a much larger angle than is permissible with a misalignment coupler and are commonly used in pairs to take a drive train through laterally displaced axes. The ability to change angle while operating under load gives U/J's a further advantage and in these applications, a telescopic drive shaft is used to...

Open the catalog to page 2
Universal Joints - 3

UNIVERSAL JOINTS application Universal joints are typically used to transmit positive rotation through intentional offsets where the power source is some way from the load. It is important to note that a U/J is essentially a pivot and that it cannot accommodate any parallel displacement between shafts if used singly. Moreover, the installation must allow for some adjustment when mounting the joint so that the shaft centre lines can be made to converge at the fulcrum of the joint. This is essential if the joint is to function correctly and not impose excessive radial loads on adjacent...

Open the catalog to page 3
Universal Joints - 4

STEEL UNIVERSAL JOINTS features type TR, needle roller bearings – 6000 rpm max Huco universal joints feature a comprehensive range of sizes manufactured in good quality steels. Plain bearing and needle roller types are available and either can be supplied with square, hexagonal or keywayed bores to order. The joints are also manufactured with quick release collars and in telescopic form to order. This series is intended for applications demanding high rotational speeds (up to 6000 rpm) and large working angles where operation is without benefit of periodic lubrication. types TL & TS, plain...

Open the catalog to page 4
Universal Joints - 5

STEEL UNIVERSAL JOINTS type HS, plain bearings – 1500 rpm max also available The range also includes: Joints with quick-release collars Joints with needle roller bearings Ball joints Any of these executions can be supplied as telescopic drive shafts. Please contact Technical Sales for further information. This series conforms to DIN 808 (alternative to DIN 7551) and features conventional construction comprising 1 long and 2 short journals with mutual location within the hardened centre block. Large bearings of equal diameter are machined into the fork ends which are subsequently induction...

Open the catalog to page 5
Universal Joints - 6

STEEL UNIVERSAL JOINTS (T SERIES) extended unbored joints with plain bearings A series of good commercial quality joints manufactured to longer dimensions. They are stocked with solid ends for boring by the user. Maximum working angle is 40° for single and 80° for double joint sizes 13 – 45. This reduces to 30° and 60° respectively for size 50 and upwards. Maximum speed 1200 rpm, see performance charts on page 15. These plain bearing universal joints must be lubricated. The use of gaiters is recommended. type TL single joint type TL double joint Order Code Static Torque at Break L2 (Nm)...

Open the catalog to page 6
Universal Joints - 7

STEEL UNIVERSAL JOINTS (T SERIES) standard bored joints with plain bearings A comprehensive range of good quality steel universals available in a range of standard sizes from stock. Alternative bores, round, keywayed or square, etc. can be produced to order. Also available in stainless steel. Please call Technical Sales for assistance with non-standard requirements. Maximum working angle is 40° for single and 80° for double joint sizes 13 – 45. This reduces to 30° and 60° respectively for size 50 and upwards. Maximum speed 1200 rpm, see performance charts on page 15. These plain bearing...

Open the catalog to page 7
Universal Joints - 8

STEEL UNIVERSAL JOINTS (T SERIES) standard bored joints with needle roller bearings A series of good commercial quality universals with needle roller bearings. The round bores listed are stock sizes, other diameters or solid ends can be supplied to order. Please call Technical Sales for alternative sizes including keywayed and square bores. Maximum working angle is 40° for single and 80° for double joints. Maximum speed 6000 rpm, see performance charts on page 15. Bores listed under ‘bores & order codes’ are stock items. Other bores are supplied to order. type TR single joint type TR double...

Open the catalog to page 8
Universal Joints - 9

STEEL UNIVERSAL JOINTS (H SERIES) standard bored joints with plain bearings A comprehensive series of high quality universals, manufactured to DIN 808. Please call Technical Sales for alternative sizes including keywayed and square bores. Maximum working angle is 45° for single and 90° for double joints. Maximum speed 1500 rpm, see performance charts on page 16. Bores listed under ‘bores & order codes’ are stock items. Other bores supplied to order. These plain bearing universal joints must be lubricated. The use of gaiters is recommended. type HS single joint type HS double joint type H...

Open the catalog to page 9
Universal Joints - 10

STEEL UNIVERSAL JOINTS (H SERIES) economy series standard bored joints with plain bearings A series of economical joints for low speed transmissions. They are intended only for manual operation or intermittent low speed motorised applications. These plain bearing universal joints must be lubricated. The use of gaiters is recommended. type HE single joint type HE double joint type H single gaiter L20 L2 A double gaiter to suit double joints is available if required. Static Torque at Break L2 (Nm) h8 Order Code Bores B D1 Static Torque at Break L5 (Nm) Order Code

Open the catalog to page 10
Universal Joints - 11

PERFORMANCE DATA (T SERIES) types TL & TS, plain bearings – 1200 rpm max – 200 rpm for sizes 60-100 The nomogram charts the maximum dynamic moment for each size of joint. The curves represent the limit of performance and must not be exceeded, however momentarily, by peak impulse loads. The product of speed of rotation x working angle is given for values from 250–12000. The upper speed limit for this series is 1200 rpm and this corresponds to a maximum working angle of 10° at this speed. Working angles up to 45° are practicable provided the corresponding speeds are held within the limits of...

Open the catalog to page 11
