Board-to-Board Connections - MBX/MMBX Connectors
34Pages

{{requestButtons}}

Catalog excerpts

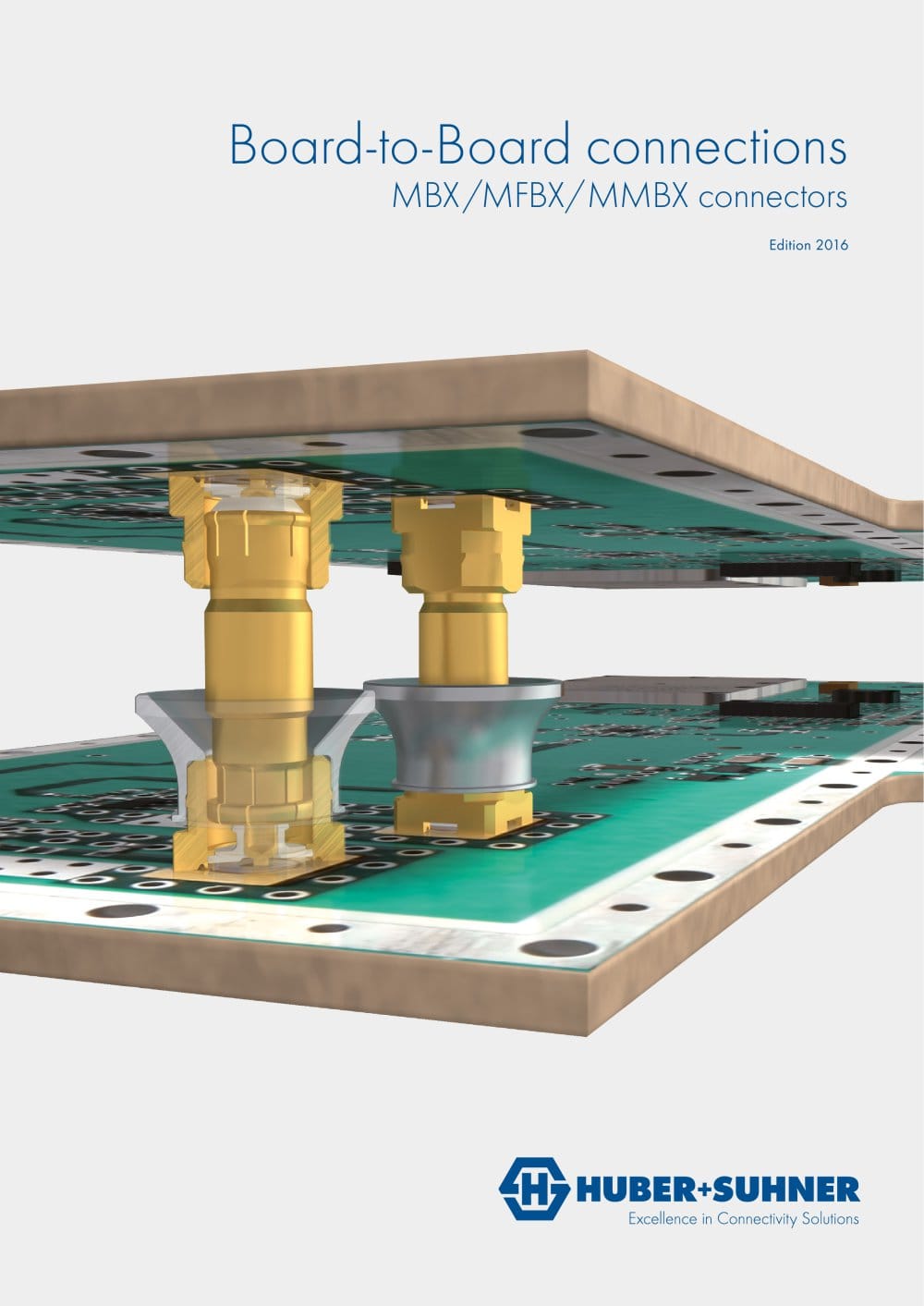

Board-to-Board Connections - MBX/MMBX Connectors - 1

Board-to-Board connections MBX/MFBX/MMBX connectors Edition 2016

Open the catalog to page 1
Board-to-Board Connections - MBX/MMBX Connectors - 2

Innovative connections

Open the catalog to page 2
Board-to-Board Connections - MBX/MMBX Connectors - 3

Your partner for system solutions The HUBER+SUHNER Group is a leading global supplier of components and systems for electrical and optical connectivity. Our customers in Communications, Industrial and Transportation markets appreciate that we are specialists with detailed knowledge of practical applications. We offer technical expertise in radio frequency technology, fiber optics and low-frequency under one roof, thus providing a unique basis for continual innovation focused on the needs of our customers all over the world. HUBER+SUHNER MBX/MFBX/MMBX connectors are especially developed for...

Open the catalog to page 3
Board-to-Board Connections - MBX/MMBX Connectors - 4

Benefits Lower cost Direct board-to-board connections with compensating misalignment (axial float ± 1.2 mm) do not only save costs compared to cable connections but rather allow larger tolerances on all other parts. Minituarization HUBER+SUHNER board-to-board connectors provide the smallest board-to-board distance (6.7 mm) in class. This enables smaller designs with less weight and provide much more space on the PCB boards Reliable connection Due to the unique fully automated production process and therewith 100 % interface control highest quality requirements, capacity and flexibility can...

Open the catalog to page 4
Board-to-Board Connections - MBX/MMBX Connectors - 5

• Very high axial float -best in class • High output power • Excellent return loss values • Smallest board-to-board distances in class MFBX Medium float Low cost Very good board-to-board shielding Small board-to-board distances • Very high frequencies -best in class • Very good return loss values • Smallest board-to-board distances in class HUBER+SUHNER MBX/MFBX/MMBX connectors

Open the catalog to page 5
Board-to-Board Connections - MBX/MMBX Connectors - 6

Applications Board-to-Board connection Board-to-Board connection right angle Board-to-Board through a panel Board-to-Panel connection (filter) Panel-to-Panel connection Board-to-Panel connection right angle HUBER+SUHNER MBX/MFBX/MMBX connectors

Open the catalog to page 6
Board-to-Board Connections - MBX/MMBX Connectors - 7

Series MBX – design guideline Working range (axial and radial) In mated condition, the two PCB connector have to be aligned within the dimension given for the axial and radial working range. HUBER+SUHNER recommends using guiding pins to align the boards within the connecting range and working range. Distance holders to maintain the axial misalignment within working range are also of benefit. The axial working range is ± 1.2 mm, the radial working range is ± 1.0 mm. In contradiction to the MMBX interface, the tilt of the adaptor is limited with MBX. The great advantage of this feature is...

Open the catalog to page 7
Board-to-Board Connections - MBX/MMBX Connectors - 8

HUBER+SUHNER MBX/MFBX/MMBX connectors

Open the catalog to page 8
Board-to-Board Connections - MBX/MMBX Connectors - 9

HUBER+SUHNER MBX/MFBX/MMBX connectors

Open the catalog to page 9
Board-to-Board Connections - MBX/MMBX Connectors - 10

Some connectors may have a specification that differs from the above mentioned data. The products are designed and guaranteed to pass the above mentioned test procedures. Any additional or different requirement arising from specific applications or environmental conditions which is not covered by these test procedures is subject to request. 10 HUBER+SUHNER MBX/MFBX/MMBX connectors

Open the catalog to page 10
Board-to-Board Connections - MBX/MMBX Connectors - 11

Surface mount type SMT HUBER+SUHNER MBX/MFBX/MMBX connectors 11 Surface mount type SMT • MBX 2nd generation Interface reference

Open the catalog to page 11
Board-to-Board Connections - MBX/MMBX Connectors - 12

Through hole type THT 12 HUBER+SUHNER MBX/MFBX/MMBX connectors

Open the catalog to page 12
Board-to-Board Connections - MBX/MMBX Connectors - 13

adaptors within series Straight adaptors Plug to plug (male) • MBX Plug to plug (male) • MBX 2nd generation HUBER+SUHNER type Adaptors with other lengths available upon request. Adaptors with other lengths available upon request. Straight cable plugs (male) HUBER+SUHNER type HUBER+SUHNER MBX/MFBX/MMBX connectors 13

Open the catalog to page 13
Board-to-Board Connections - MBX/MMBX Connectors - 14

HUBER+SUHNER type Installation reference Installation reference HUBER+SUHNER type 14 HUBER+SUHNER MBX/MFBX/MMBX connectors

Open the catalog to page 14
Board-to-Board Connections - MBX/MMBX Connectors - 15

HUBER+SUHNER type HUBER+SUHNER MBX/MFBX/MMBX connectors 15

Open the catalog to page 15
Board-to-Board Connections - MBX/MMBX Connectors - 16

To disassemble To assemble use this side Series MBX - test boards MBX test board: PK_MBX_Testboard-1 The test board is a mechanically and electrically working board containing two MBX board-to-board connections. One MBX connection is a SMT (surfacemount technology) the other one is THT (through-hole technology). The board-to-board distance is 18 mm. Return loss (RL) and insertion loss (IL) of a MBX board-to-board connection can be measured via the SMA connectors. There are two additional pairs of distance holders enclosed. The MBX connection can be measured at the minimum (16.8 mm) and...

Open the catalog to page 16
Board-to-Board Connections - MBX/MMBX Connectors - 17

Series MFBX – design guideline Working range (axial and radial) In mated condition, the two PCB connector have to be aligned within the dimension given for the axial and radial working range. HUBER+SUHNER recommends using guiding pins to align the boards within the connecting range and working range. Distance holders to maintain the axial misalignment within working range are also of benefit. The axial working range is ± 0.8 mm, the radial working range is ± 0.8 mm and allows a sufficient electrical and mechanical connection. Connecting range HUBER+SUHNER provides outline drawings for every...

Open the catalog to page 17
Board-to-Board Connections - MBX/MMBX Connectors - 18

18 HUBER+SUHNER MBX/MFBX/MMBX connectors

Open the catalog to page 18
Board-to-Board Connections - MBX/MMBX Connectors - 19

Some connectors may have a specification that differs from the above mentioned data. The products are designed and guaranteed to pass the above mentioned test procedures. Any additional or different requirement arising from specific applications or environmental conditions which is not covered by these test procedures is subject to request. HUBER+SUHNER MBX/MFBX/MMBX connectors 19

Open the catalog to page 19
Board-to-Board Connections - MBX/MMBX Connectors - 20

Straight PCB jacks (female) Installation reference Interface reference HUBER+SUHNER type 20 HUBER+SUHNER MBX/MFBX/MMBX connectors

Open the catalog to page 20
Board-to-Board Connections - MBX/MMBX Connectors - 21

Series MFBX adaptors within seriesStraight adaptors Plug to plug (male) HUBER+SUHNER type HUBER+SUHNER type HUBER+SUHNER type HUBER+SUHNER MBX/MFBX/MMBX connectors 21

Open the catalog to page 21
Board-to-Board Connections - MBX/MMBX Connectors - 22

Series MFBX – test boards MFBX test board: EK_MFBX-1 The test board is a mechanically and electrically working board containing two MFBX board-to-board connections. One MBX connection is a SMT (surface-mount technology) the other one is THT (through-hole technology). The board-to-board distance is 18.9 mm. Return loss (RL) and insertion loss (IL) of a MBX board-to-board connection can be measured via the SMA connectors. The MFBX connection can be measured at the minimum (18.1 mm) and maximum (19.7 mm) board-to-board distance by exchanging the distance holders. There is an additional...

Open the catalog to page 22
