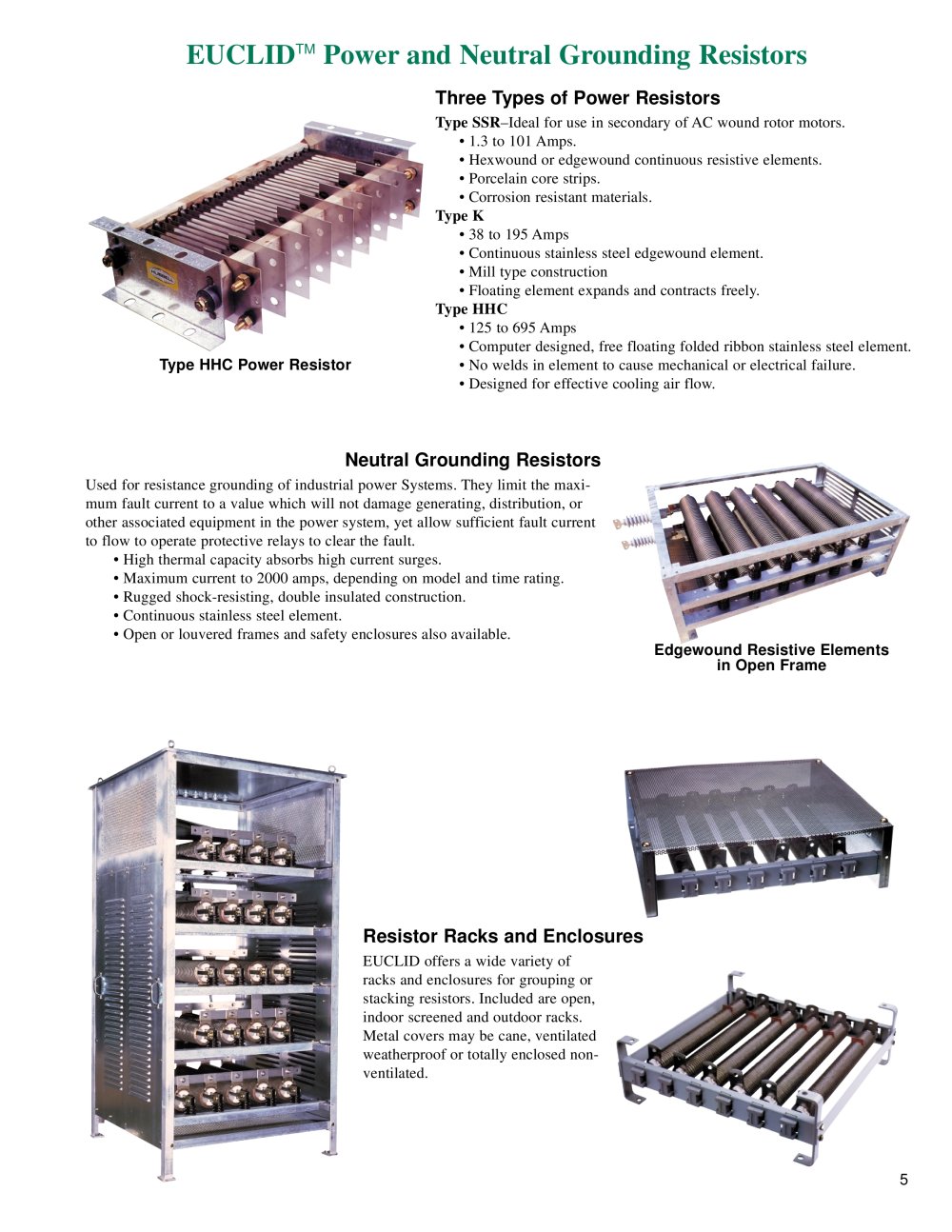

EUCLID
TM Powerand Neutral Grounding Resistors
Type HHC Type K ? 125 to 695 Amps
? Computer designed, free floating folded ribbon stainless steel element.
? No welds in element to cause mechanical or electrical failure.
? Designed for effective cooling air flow. Type SSR ? 38 to 195 Amps
? Continuous stainless steel edgewound element.
? Mill type construction
? Floating element expands and contracts freely. –Ideal for use in secondary of AC wound rotor motors.? 1.3 to 101 Amps.
? Hexwound or edgewound continuous resistive elements.
? Porcelain core strips.
? Corrosion resistant materials. Type HHC Power Resistor
Edgewound Resistive Elementsin Open Frame
Neutral Grounding Resistors
Used for resistance grounding of industrial power Systems. They limit the maxi-
mum fault current to a value which will not damage generating, distribution, or
other associated equipment in the power system, yet allow sufficient fault current
to flow to operate
protective relays to clear the fault.? High thermal capacity absorbs high current surges.
? Maximum current to 2000 amps, depending on model and time rating.
? Rugged shock-resisting, double insulated construction.
? Continuous stainless steel element.
? Open or louvered frames and safety
industrial enclosures also available.
Resistor Racks and Enclosures
EUCLID offers a wide variety ofracks and enclosures for grouping or
stacking resistors. Included are open,
indoor screened and outdoor racks.
Metal covers may be cane, ventilated
weatherproof or totally enclosed non-
ventilated. 5
