EUCLID

TM

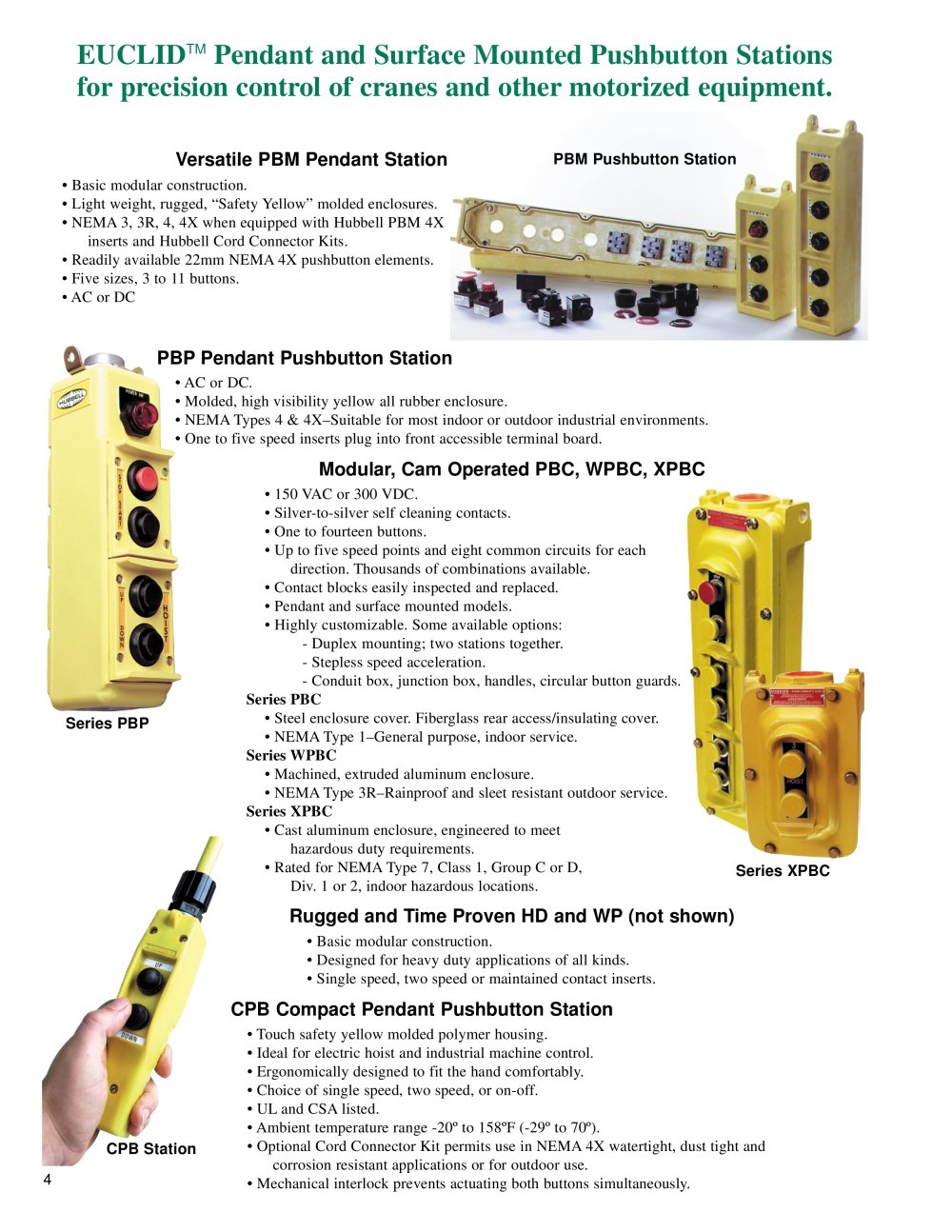

Pendant and Surface Mounted Pushbutton Stations forprecision control of cranes and othermotorized equipment.

Versatile PBM Pendant Station

PBM Pushbutton Station CPB Station Series PBP ? Basic modular construction. ? Light weight, rugged, “Safety Yellow” molded enclosures. ? NEMA3, 3R, 4, 4X when equipped with Hubbell PBM 4X inserts and Hubbell Cord Connector Kits.? Readily available 22mm NEMA4X pushbutton elements. ? Five sizes, 3 to 11 buttons. ? AC or DC

PBPPendant Pushbutton Station

? AC or DC. ? Molded, high visibility yellow all rubber enclosure. ? NEMATypes 4 & 4X–Suitable for most indoor or outdoor industrial environments. ? One to five speed inserts plug into front accessible terminal board. Series PBC

Modular, Cam Operated PBC, WPBC, XPBC

Series WPBC ? 150 VAC or 300 VDC.? Silver-to-silver self cleaning contacts. ? One to fourteen buttons. ? Up to five speed points and eight common circuits for each direction. Thousands of combinations available.? Contact blocks easily inspected and replaced. ? Pendant and surface mounted models. ? Highly customizable. Some available options:- Duplex mounting; two stations together. - Stepless speed acceleration. - Conduit box, junction box, handles, circular button guards. ? Steel enclosure cover. Fiberglass rear access/insulating cover. ? NEMAType 1–General purpose, indoor service. Series XPBC ? Machined, extruded aluminum enclosure. ? NEMAType 3R–Rainproof and sleet resistant outdoor service. ? Cast aluminum enclosure, engineered to meet hazardous duty requirements.? Rated for NEMAType 7, Class 1, Group C or D, Div. 1 or 2, indoor hazardous locations. Series XPBC

Rugged and Time Proven HD and WP(not shown)

? Basic modular construction.? Designed for heavy duty applications of all kinds. ? Single speed, two speed or maintained contact inserts.

CPB Compact Pendant Pushbutton Station

? Touch safety yellow molded polymer housing. ? Ideal for industrial electric hoist and industrial machine control. ? Ergonomically designed to fit the hand comfortably. ? Choice of single speed, two speed, or on-off. ? ULand CSAlisted. ? Ambient temperature range -20º to 158ºF (-29º to 70º). ? Optional Cord Connector Kit permits use in NEMA4X watertight, dust tight and corrosion resistant applications or for outdoor use.? Mechanical interlock prevents actuating both buttons simultaneously. 4
