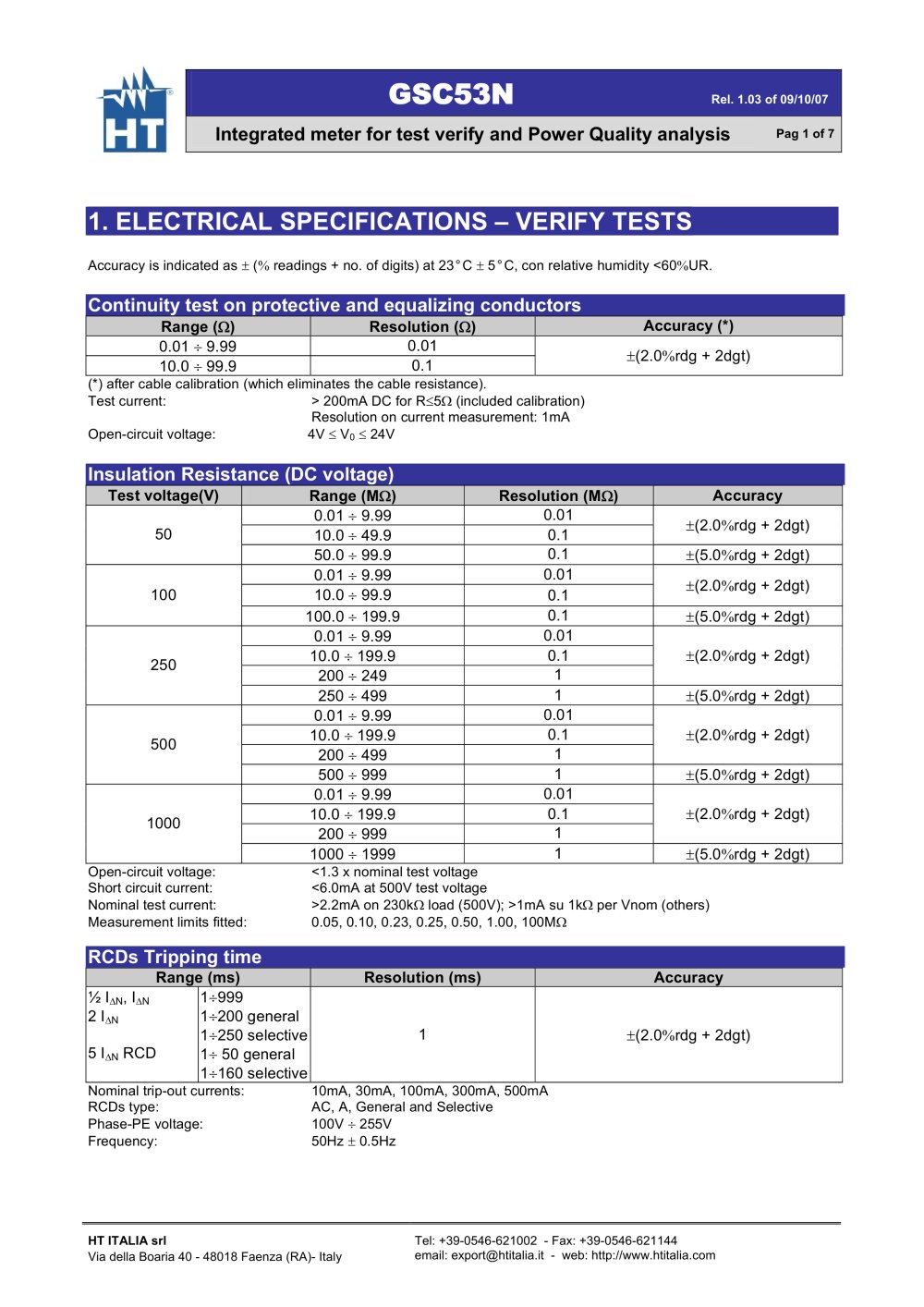

Integrated meter for test verify and Power Quality analysis Pag 1 of 7

1. ELECTRICAL SPECIFICATIONS - VERIFY TESTS

Accuracy is indicated as + (% readings + no. of digits) at 23°C + 5°C, con relative humidity <60%UR.

Continuity test on protective and equalizing conductors

Accuracy (*)

±(2.0%rdg + 2dgt)

(*) after cable calibration (which eliminates the cable resistance).

Test current: > 200mA DC for R<5Q (included calibration)

Resolution on current measurement: 1mA Open-circuit voltage: 4V < V₀ < 24V

Insulation Resistance (DC voltage)

Open-circuit voltage: <1.3 x nominal test voltage

Short circuit current: <6.0mA at 500V test voltage

Nominal test current: >2.2mA on 230kfi load (500V); >1mA su 1kfi per Vnom (others)

Measurement limits fitted: 0.05, 0.10, 0.23, 0.25, 0.50, 1.00, 100MQ


RCDs Tripping time
Range (ms)		Resolution (ms)	Accuracy
% Ian. Ian ² ^\|an 5 Ian RCD	1+999 1+200 general 1+250 selective 1+ 50 general 1+160 selective	1	±(2.0%rdg + 2dgt)

Nominal trip-out currents: 10mA, 30mA, 100mA, 300mA, 500mA

RCDs type: AC, A, General and Selective

Phase-PE voltage: 100V + 255V

Frequency: 50Hz + 0.5Hz
