4

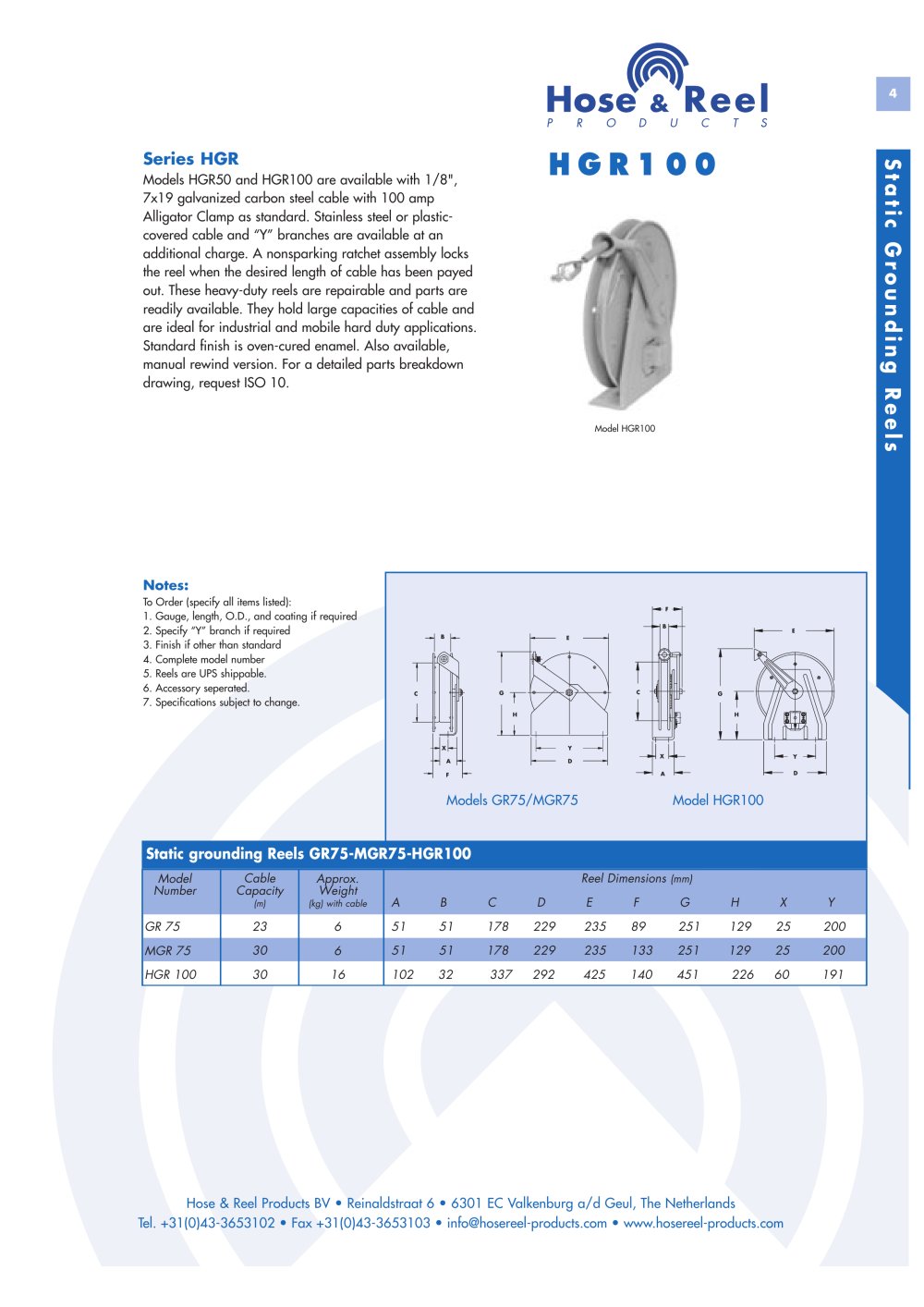

Series HGR

Static Grounding Reels - 56930 HGR100

Static Grounding Reels

Models HGR50 and HGR100 are available with 1/8",7x19 galvanized carbon steel cable with 100 amp Alligator Clamp as standard. Stainless steel or plastic- covered cable and “Y” branches are available at an additional charge. A nonsparking ratchet assembly locks the reel when the desired length of cable has been payedout. These heavy-duty reels are repairable and parts arereadily available. They hold large capacities of cable and are ideal for industrial and mobile hard duty applications. Standard finish is oven-cured enamel. Also available, manual rewind version. For a detailed parts breakdown drawing, request ISO 10.

Model HGR100

Notes:

To Order (specify all items listed): 1. Gauge, length, O.D., and coating if required 2. Specify “Y” branch if required 3. Finish if other than standard 4. Complete model number 5. Reels are UPS shippable.6. Accessory seperated.7. Specifications subject to change. YD BCXAF GH E YD FB C XA GH E

Models GR75/MGR75 Model HGR100

Static grounding Reels GR75-MGR75-HGR100

ModelNumberGR 75MGR 75 HGR 100Approx.Weight Cable Capacity
(mm) (m) (kg) with cable AB C D E F G H X Y51 51 178 229 235 89 251 129 25 200 51 51 178 229 235 133 251 129 25 200 102 32 337 292 425 140 451 226 60 191 2330 30 6616Reel Dimensions

Hose & Reel Products BV • Reinaldstraat 6 • 6301 EC Valkenburg a/d Geul, The NetherlandsTel. +31(0)43-3653102 • Fax +31(0)43-3653103 • info@hosereel-products.com • www.hosereel-products.com
