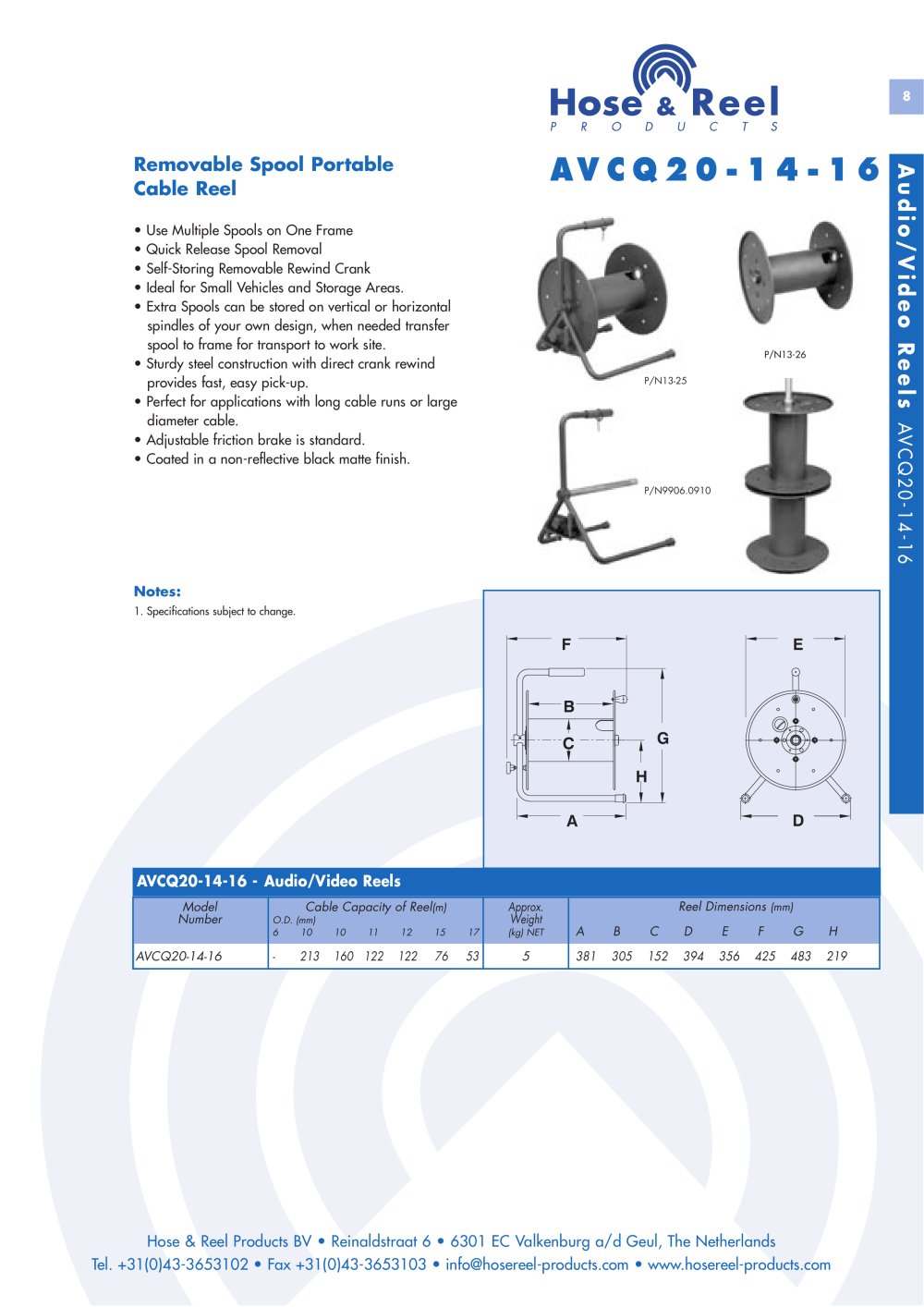

Removable Spool Portable Cable Reel

Audio/Video Reels - 56930 AVCQ20-14-16

Audio/Video Reels

• Use Multiple Spools on One Frame• Quick Release Spool Removal• Self-Storing Removable Rewind Crank • Ideal for Small Vehicles and Storage Areas. • Extra Spools can be stored on vertical or horizontal spindles of your own design, when needed transfer spool to frame for transport to work site. • Sturdy steel construction with direct crank rewind provides fast, easy pick-up. • Perfect for applications with long cable runs or large diameter cable. • Adjustable friction brake is standard. • Coated in a non-reflective black matte finish.

P/N13-26 P/N13-25 P/N9906.0910 AVCQ20-14-16

Notes:

1. Specifications subject to change.

E D FBCHGA

AVCQ20-14-16 -Audio/Video Reels

ModelNumberAVCQ20-14-16Cable Capacity of Reel
(m) Approx. Weight
(mm) O.D. (mm)6 10 10 11 12 15 17 (kg) NET AB C D E F G H - 213 160 122 122 76 53 5Reel Dimensions 381 305 152 394 356 425 483 219
