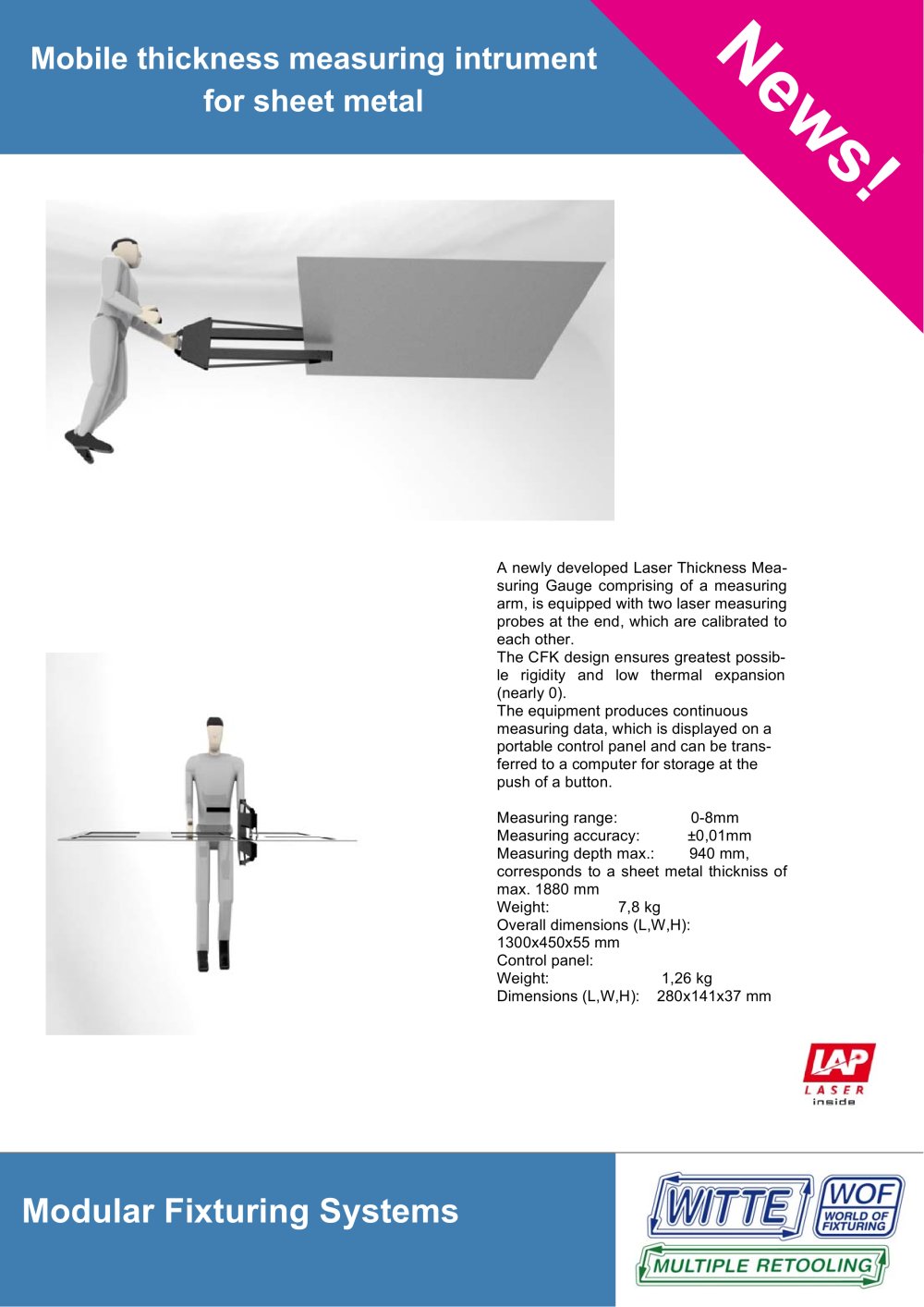

Mobile thickness measuring intrument for sheet metal Modular Fixturing Systems News! A newly developed Laser Thickness Measuring Gauge comprising of a measuring arm, is equipped with two laser measuring probes at the end, which are calibrated to each other. The CFK design ensures greatest possible rigidity and low thermal expansion (nearly 0). The equipment produces continuous measuring data, which is displayed on a portable control panel and can be transferred to a computer for storage at the push of a button. Measuring range: 0-8mm Measuring accuracy: ±0,01mm Measuring depth max.: 940 mm, corresponds to a sheet metal thickniss of max. 1880 mm Weight: 7,8 kg Overall dimensions (L,W,H): 1300x450x55 mm Control panel: Weight: 1,26 kg Dimensions (L,W,H): 280x141x37 mm
