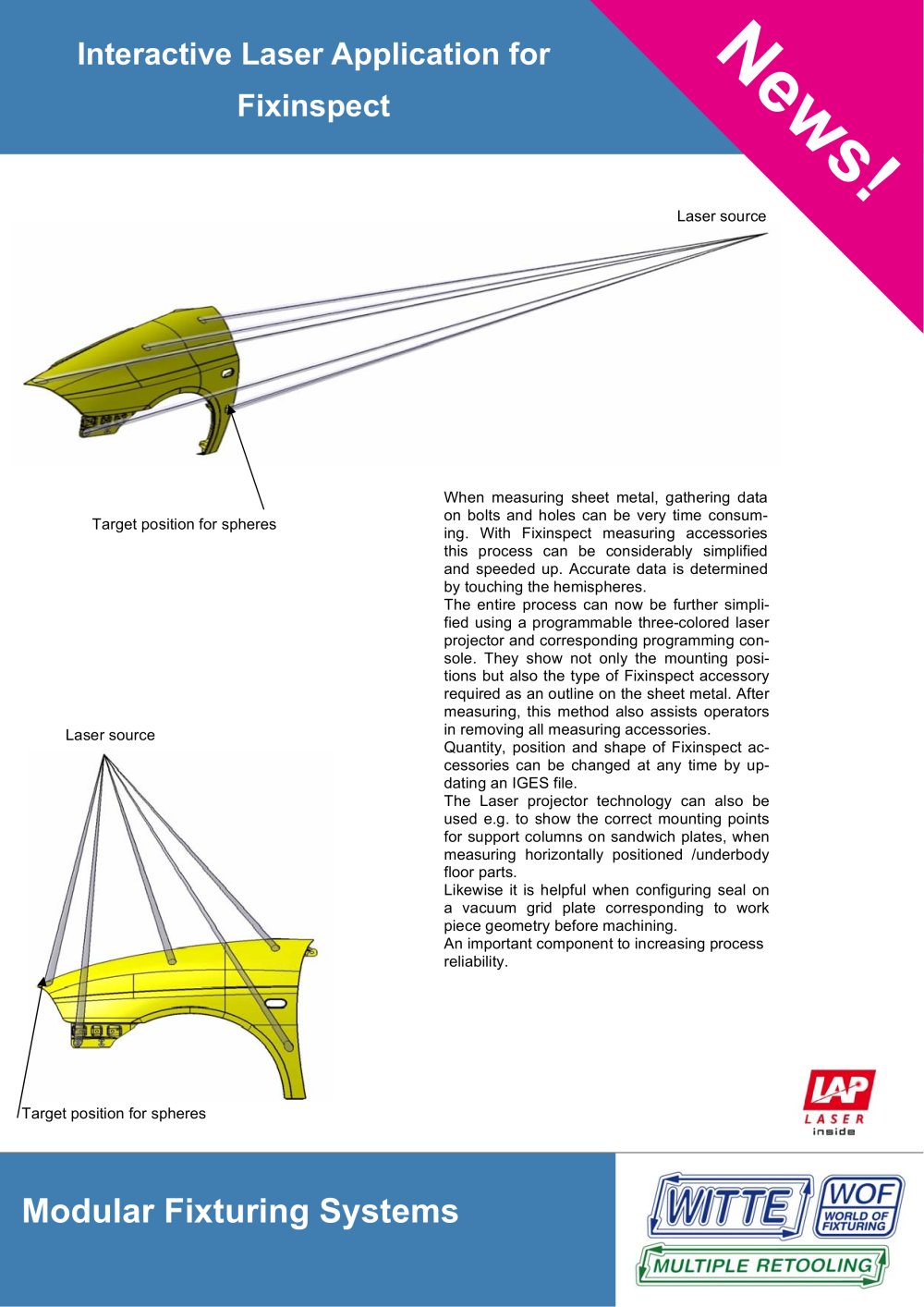

Interactive Laser Application for Fixinspect Modular Fixturing Systems News! When measuring sheet metal, gathering data on bolts and holes can be very time consuming. With Fixinspect measuring accessories this process can be considerably simplified and speeded up. Accurate data is determined by touching the hemispheres. The entire process can now be further simplified using a programmable three-colored laser projector and corresponding programming console. They show not only the mounting positions but also the type of Fixinspect accessory required as an outline on the sheet metal. After measuring, this method also assists operators in removing all measuring accessories. Quantity, position and shape of Fixinspect accessories can be changed at any time by updating an IGES file. The Laser projector technology can also be used e.g. to show the correct mounting points for support columns on sandwich plates, when measuring horizontally positioned /underbody floor parts. Likewise it is helpful when configuring seal on a vacuum grid plate corresponding to work piece geometry before machining. An important component to increasing process reliability. Laser source Laser source Target position for spheres Target position for spheres

Open the catalog to page 1

Witte - Specialists for Modular Fixturing Systems Subcontracting Vacuum Clamping Systems Germany Horst Witte Gerätebau Barskamp KG Horndorfer Weg 26-28 D-21354 Bleckede Germany Tel.: +49 (0)5854 89-0 Fax: +49 (0)5854 89-40 E-Mail: info@horst-witte.de www.horst-witte.de Asia Witte Far East Pte Ltd 1st. Level 13 Joo Koon Crescent SGP-629021 Singapore Tel.: +65-6248 5961 Fax: +65-6898 4542 E-Mail: info@witteasia.com www.witteasia.com USA & Canada Witte America 120E Market Street Suite 455 Indianapolis, IN 46204 Tel.: 317-822-7003 Fax: 317-822-7009 E-Mail: info@witteamerica.com...
