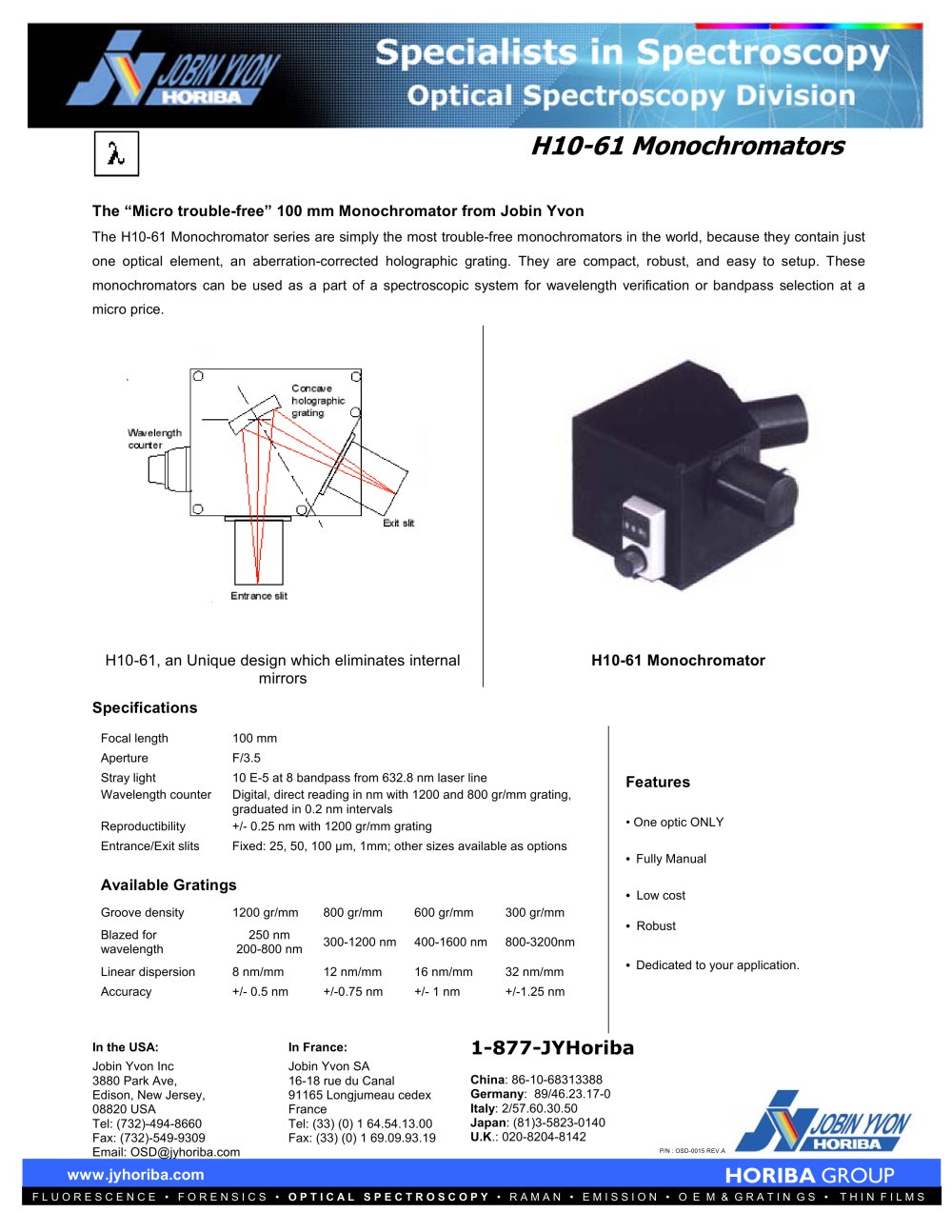

The “Micro trouble-free” 100 mm Monochromator from Jobin Yvon

The H10-61 Monochromator series are simply the most trouble-free monochromators in the world, because they contain just one optical element, an aberration-corrected holographic grating. They are compact, robust, and easy to setup. These monochromators can be used as a part of a spectroscopic system for wavelength verification or bandpass selection at a micro price.

H10-61, an Unique design which eliminates internal mirrors H10-61 Monochromator Specifications

Focal length 100 mm Aperture F/3.5 Stray light 10 E-5 at 8 bandpass from 632.8 nm laser line Wavelength counter Digital, direct reading in nm with 1200 and 800 gr/mm grating, graduated in 0.2 nm intervals Reproductibility +/- 0.25 nm with 1200 gr/mm grating Entrance/Exit slits Fixed: 25, 50, 100 µm, 1mm; other sizes available as options • One optic ONLY • Fully Manual

Available Gratings

Groove density 1200 gr/mm 800 gr/mm 600 gr/mm 300 gr/mm Blazed for wavelength 250 nm 200-800 nm 300-1200 nm 400-1600 nm 800-3200nm Linear dispersion 8 nm/mm 12 nm/mm 16 nm/mm 32 nm/mm Accuracy +/- 0.5 nm +/-0.75 nm +/- 1 nm +/-1.25 nm • Low cost • Robust • Dedicated to your application.
