TECHNICAL SPECIFICATIONS OPTIONS

Generator Automatic solid-state RF running, 40.68 MHz, water-cooled AS-500 Autosampler, with Rinsing Station and Organics Mixing system Ar humidifier Micro / high dissolved solids / inert material nebulisers Scott / HF resistant / cooled spray chambers Ultrasonic nebuliser Concomitant Metals Analyser (CMA) for simultaneous measurement of hydrides and “normal” elements Hot Wax sample introduction system Oxygen kit for organic samples Laser ablation system Auto-dilution system Remote Diagnostics (network-ready) PlasmaCam Remote Plasma Viewing (network-ready) Cooling GenCo cooler for generator and coil Exhaust Smart Hood system Plasma Fully demountable torch, 3 mm i.d. injector, 12 l/min plasma gas, 0.2 l/min sheath gas Sample introduction Wavelength range Concentric glass nebuliser and glasscyclone spray chamber, 3-channel peristaltic pump 120 – 800 nm Optical system Detection Thermo-regulated, 0.64 meter focal length, dual back-to-back gratings (4343 g/mm & 2400 g/mm with optical resolution

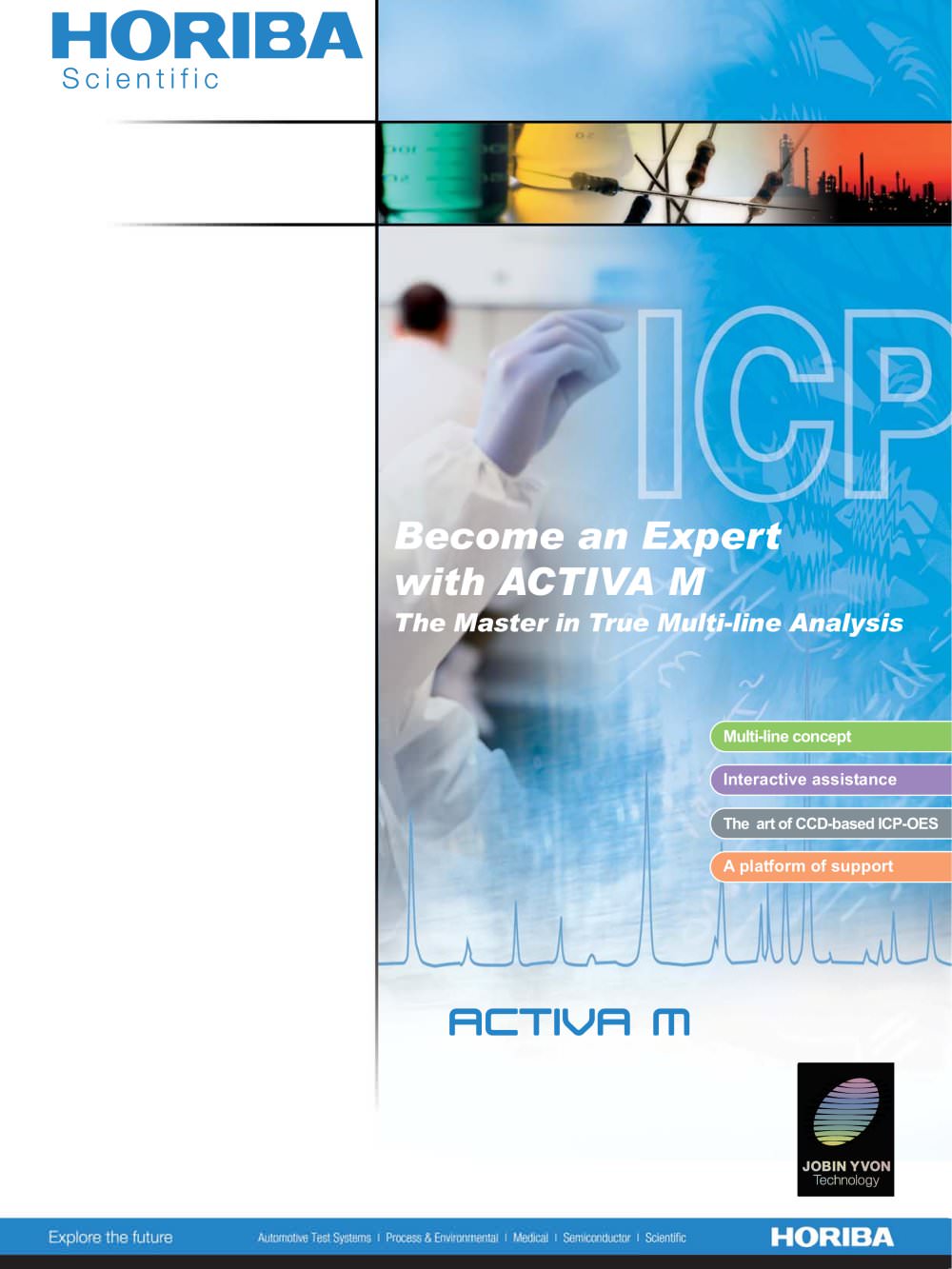

ICP-OES ACTIVA-M - 25366 Become an Expertwith ACTIVA-M

PHYSICAL DATA

The Master in True Multi-line Analysis

Refer to ACTIVA-M Pre-Installation Guide for more details. Depth 727 mm (28.6 in) Width 1430 mm (56.3 in) Height 750 mm (29.5 in) Weight 195 kg (430 lb)

Multi-line conceptInteractive assistanceThe art of CCD-based ICP-AESA platform of support

Power Single Phase, 220-240 V, 50-60 Hz, 5 kVA Cooling Water 2 to 3 L/min, 2 bar Argon 99.999% purity Nitrogen 120 to 190 nm: 99.9995% purity, 3 L/min Exhaust 400 m
3 /h (235 cfm)
DRAG Publicité - www.drag.fr Environmental 20 to 80% humidity, 18-24 at 2 ?C

Visit our Web site :

www.jobinyvon.com

Specifications subject to change without notice. USA: HORIBA Jobin Yvon Inc., 3880 Park Avenue, Edison, NJ 08820-3012, Toll-Free: +1-866-jobinyvon Tel: +1-732-494-8660, Fax: +1-732-549-5125, E-mail: info@jobinyvon.com, www.jobinyvon.com France: HORIBA Jobin Yvon S.A.S., 16-18, rue du Canal, 91165 Longjumeau cedexTel: +33 (0) 1 64 54 13 00, Fax: +33 (0) 1 69 09 07 21, www.jobinyvon.fr Japan: Horiba Ltd., 2 Miyanohigashi, Kisshoin, Minami-ku, Kyoto 601-8510Tel: +81 (0) 3 38618231, Fax: +81 (0) 3 38618259, www.jobinyvon.jp Germany: +49 (0) 89 46 23 17-0 Italy: +39 (0) 2 57603050 U.K.: +44 (0) 20 8204 8142 China Beijing: +86 (0) 10 8567 9966 China Shangai: +86 (0) 21 3222 1818 Spain: +34 (0) 91 724 16 57
