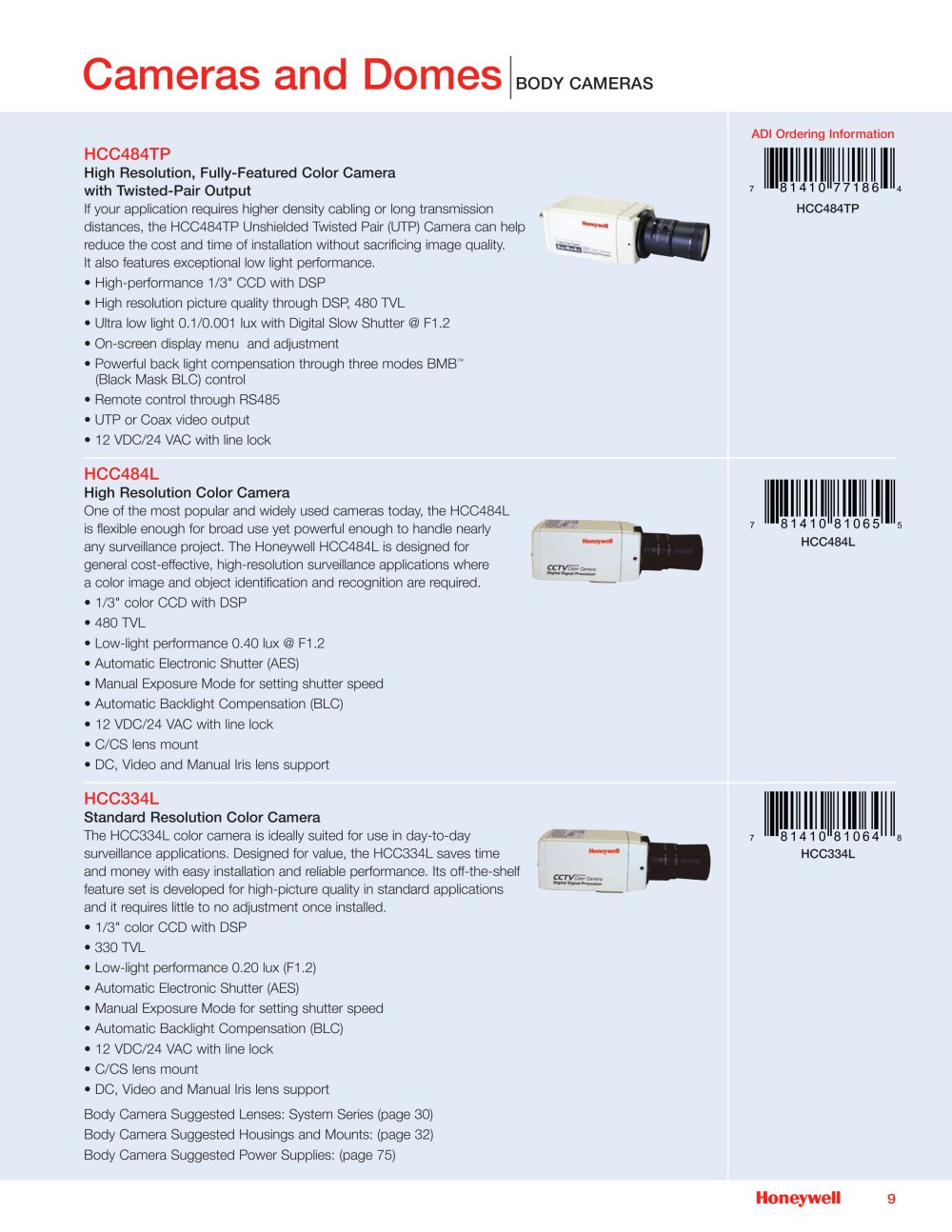

Cameras and Domes

BODY CAMERAS

HCC484TP

High Resolution, Fully-Featured Color Camerawith Twisted-Pair Output

If your application requires higher density cabling or long transmissiondistances, the HCC484TP Unshielded Twisted Pair (UTP) Camera can helpreduce the cost and time of installation without sacrificing image quality. It also features exceptional low light performance. • High-performance 1/3" CCD with DSP • High resolution picture quality through DSP, 480 TVL • Ultra low light 0.1/0.001 lux with Digital Slow Shutter @ F1.2 • On-screen display menu and adjustment • Powerful back light compensation through three modes BMB

(Black Mask BLC) control• Remote control through RS485 • UTP or Coax video output • 12 VDC/24 VAC with line lock

HCC484L

High Resolution Color Camera

One of the most popular and widely used cameras today, the HCC484L is flexible enough for broad use yet powerful enough to handle nearly any surveillance project. The Honeywell HCC484L is designed for general cost-effective, high-resolution surveillance applications where a color image and object identification and recognition are required.• 1/3" color CCD with DSP • 480 TVL • Low-light performance 0.40 lux @ F1.2 • Automatic Electronic Shutter (AES) • Manual Exposure Mode for setting shutter speed • Automatic Backlight Compensation (BLC) • 12 VDC/24 VAC with line lock • C/CS lens mount • DC, Video and Manual Iris lens support

HCC334L

Standard Resolution Color Camera

The HCC334L color camera is ideally suited for use in day-to-daysurveillance applications. Designed for value, the HCC334L saves time and money with easy installation and reliable performance. Its off-the-shelf feature set is developed for high-picture quality in standard applications and it requires little to no adjustment once installed. • 1/3" color CCD with DSP • 330 TVL • Low-light performance 0.20 lux (F1.2) • Automatic Electronic Shutter (AES) • Manual Exposure Mode for setting shutter speed • Automatic Backlight Compensation (BLC) • 12 VDC/24 VAC with line lock • C/CS lens mount• DC, Video and Manual Iris lens support

Body Camera Suggested Lenses: System Series (page 30)Body Camera Suggested Housings and Mounts: (page 32)Body Camera Suggested Power Supplies: (page 75) 9
