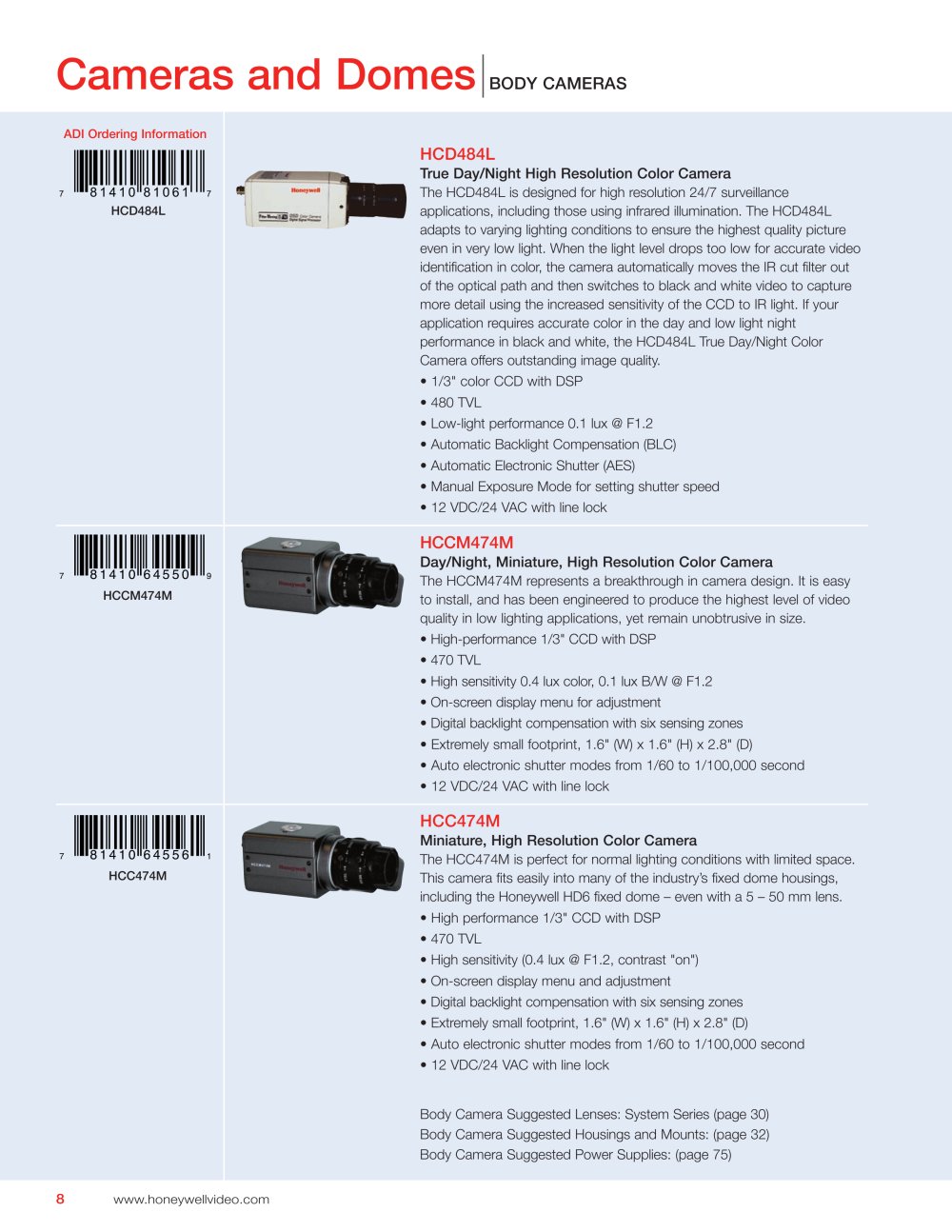

Cameras and Domes

BODY CAMERAS

HCD484L

True Day/Night High Resolution Color Camera

The HCD484L is designed for high resolution 24/7 surveillance applications, including those using infrared illumination. The HCD484L adapts to varying lighting conditions to ensure the highest quality picture even in very low light. When the light level drops too low for accurate videoidentification in color, the camera automatically moves the IR cut filter out of the optical path and then switches to black and white video to capture more detail using the increased sensitivity of the CCD to IR light. If yourapplication requires accurate color in the day and low light nightperformance in black and white, the HCD484L True Day/Night Color Camera offers outstanding image quality.• 1/3" color CCD with DSP • 480 TVL• Low-light performance 0.1 lux @ F1.2• Automatic Backlight Compensation (BLC) • Automatic Electronic Shutter (AES) • Manual Exposure Mode for setting shutter speed• 12 VDC/24 VAC with line lock

HCCM474M

Day/Night, Miniature, High Resolution Color Camera

The HCCM474M represents a breakthrough in camera design. It is easy to install, and has been engineered to produce the highest level of videoquality in low lighting applications, yet remain unobtrusive in size.• High-performance 1/3" CCD with DSP • 470 TVL• High sensitivity 0.4 lux color, 0.1 lux B/W @ F1.2 • On-screen display menu for adjustment • Digital backlight compensation with six sensing zones • Extremely small footprint, 1.6" (W) x 1.6" (H) x 2.8" (D) • Auto electronic shutter modes from 1/60 to 1/100,000 second • 12 VDC/24 VAC with line lock

HCC474M

Miniature, High Resolution Color Camera

The HCC474M is perfect for normal lighting conditions with limited space.This camera fits easily into many of the industry’s fixed dome housings,including the Honeywell HD6 fixed dome – even with a 5 – 50 mm lens.• High performance 1/3" CCD with DSP • 470 TVL• High sensitivity (0.4 lux @ F1.2, contrast "on") • On-screen display menu and adjustment • Digital backlight compensation with six sensing zones • Extremely small footprint, 1.6" (W) x 1.6" (H) x 2.8" (D) • Auto electronic shutter modes from 1/60 to 1/100,000 second • 12 VDC/24 VAC with line lock

Body Camera Suggested Lenses: System Series (page 30)Body Camera Suggested Housings and Mounts: (page 32)Body Camera Suggested Power Supplies: (page 75) 8
