Cameras and Domes

BODY CAMERAS

Honeywell provides a comprehensive line of cameras that offersthe flexibility and versatility required by the most demanding customer. Our body cameras come in a variety of configurations and with a multitude of options, including Ultra Wide Dynamic, True Day/Night, high resolution color, miniature form factor, and black and white. Incredibly versatile, each can be mounted in various ways with one of several lens options.

BODY CAMERAS

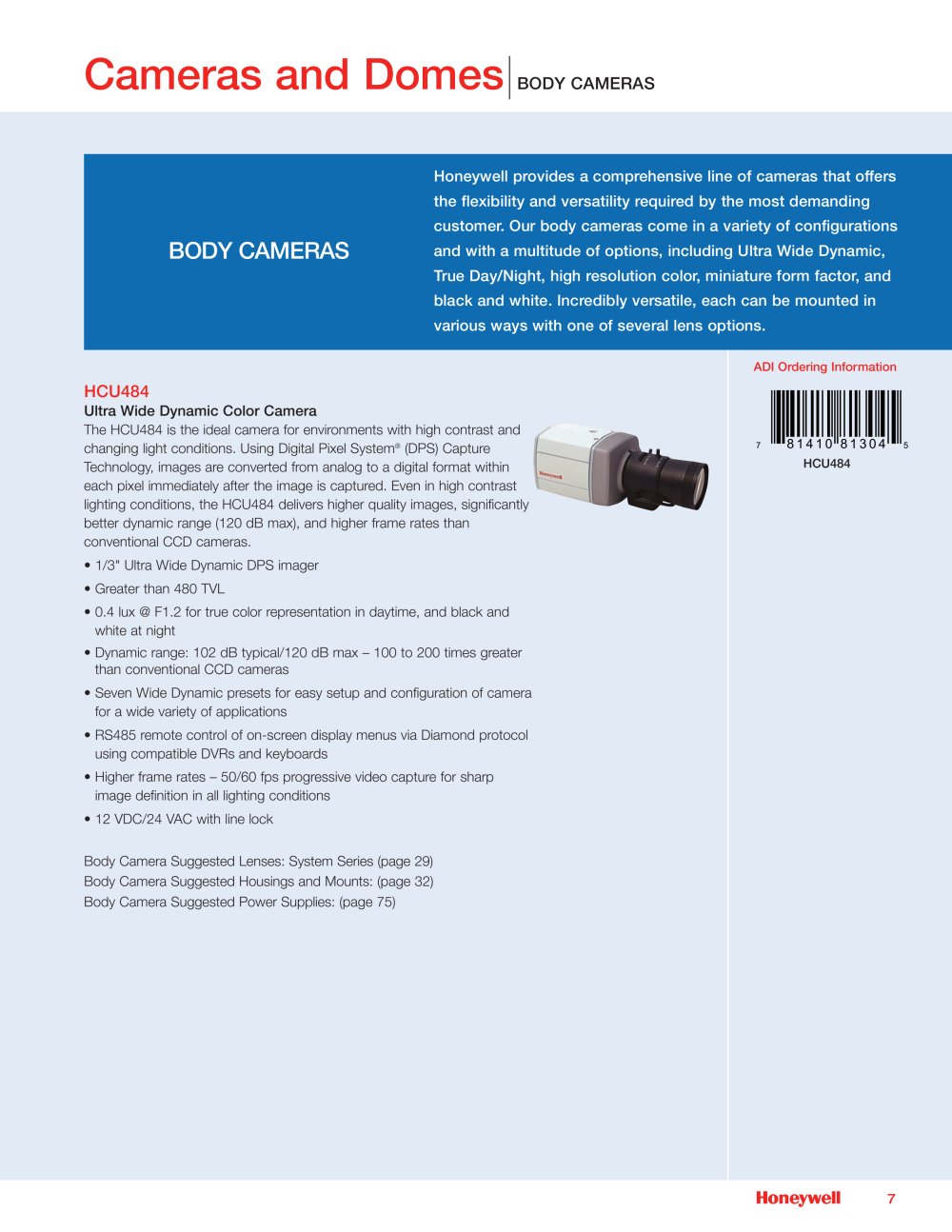

HCU484

Ultra Wide Dynamic Color Camera

The HCU484 is the ideal camera for environments with high contrast andchanging light conditions. Using Digital Pixel System

(DPS) CaptureTechnology, images are converted from analog to a digital format within each pixel immediately after the image is captured. Even in high contrastlighting conditions, the HCU484 delivers higher quality images, significantlybetter dynamic range (120 dB max), and higher frame rates than conventional CCD cameras.• 1/3" Ultra Wide Dynamic DPS imager • Greater than 480 TVL • 0.4 lux @ F1.2 for true color representation in daytime, and black and white at night• Dynamic range: 102 dB typical/120 dB max – 100 to 200 times greater than conventional CCD cameras • Seven Wide Dynamic presets for easy setup and configuration of camerafor a wide variety of applications • RS485 remote control of on-screen display menus via Diamond protocolusing compatible DVRs and keyboards •Higher frame rates – 50/60 fps progressive video capture for sharp image definition in all lighting conditions •12 VDC/24 VAC with line lock

Body Camera Suggested Lenses: System Series (page 29)Body Camera Suggested Housings and Mounts: (page 32)Body Camera Suggested Power Supplies: (page 75) 7
