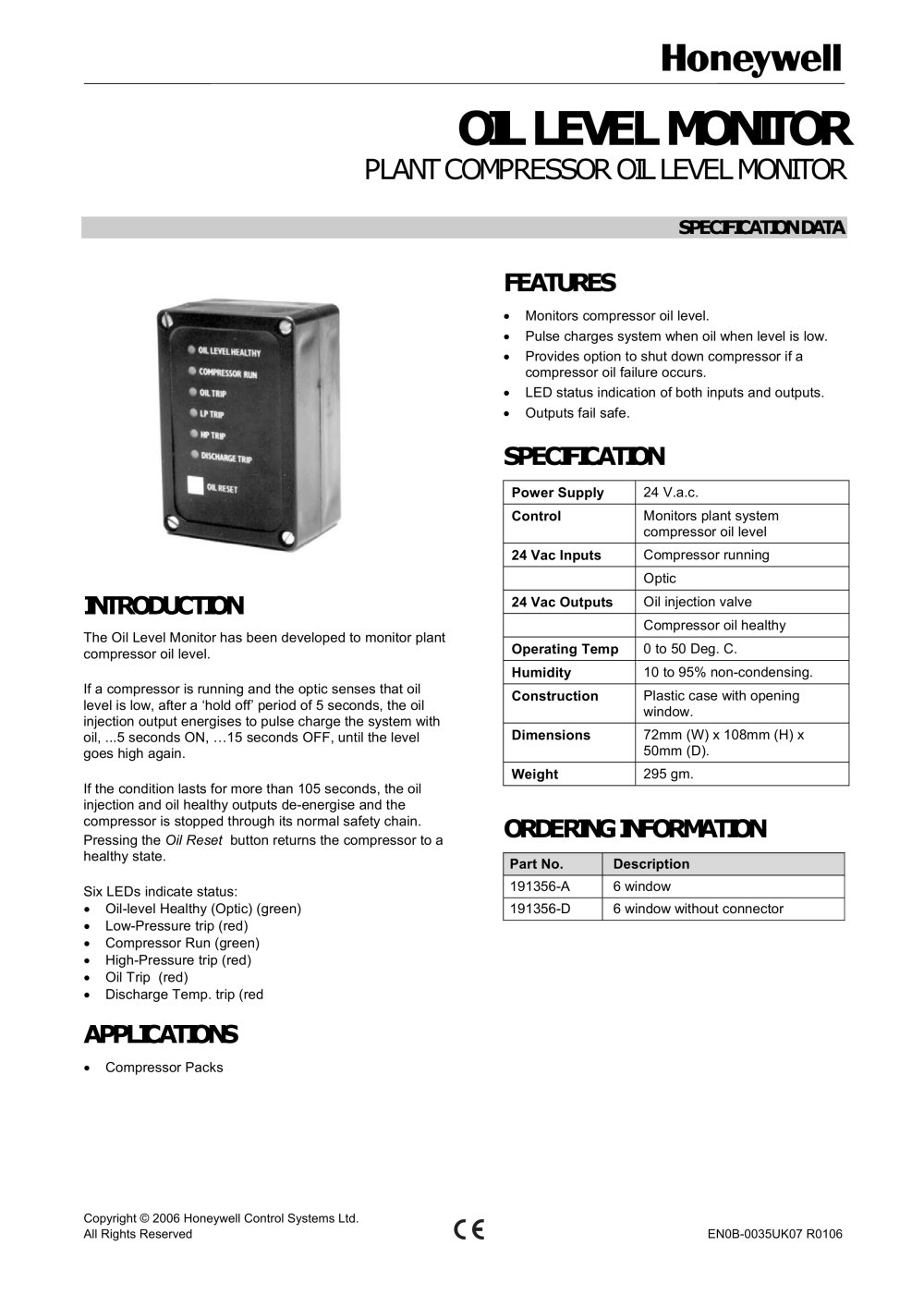

Monitors compressor oil level. Pulse charges system when oil when level is low. Provides option to shut down compressor if a compressor oil failure occurs. LED status indication of both inputs and outputs. Outputs fail safe. > Power Supply 24 V.a.c. Control Monitors plant system compressor oil level 24 Vac Inputs Compressor running Optic > 24 Vac Outputs Oil injection valve Compressor oil healthy The Oil Level Monitorhas been developed to monitor plant compressor oil level.If a compressor is running and the optic senses that oil level is low, after a hold offђ period of 5 seconds, the oil injection output energises to pulse charge the system with oil, ...5 seconds ON, 15 seconds OFF, until the level goes high again.If the condition lasts for more than 105 seconds, the oil injection and oil healthy outputs de-energise and the compressor is stopped through its normal safety chain. Pressing the Operating Temp 0 to 50 Deg. C. Humidity 10 to 95% non-condensing. Construction Plastic case with opening window. Oil Reset button returns the compressor to a healthy state. Six LEDs indicate status: Dimensions 72mm (W) x 108mm (H) x 50mm (D). Weight 295 gm. Oil-level Healthy (Optic) (green) Low-Pressure trip (red) Compressor Run (green) > High-Pressure trip (red) Part No. Description Oil Trip (red) 191356-A6 window Discharge Temp. trip (red 191356-D6 window without connector > Compressor Packs > Copyright ũ 2006 Honeywell Control Systems Ltd. All Rights Reserved EN0B-0035UK07 R0106 size="-1">
