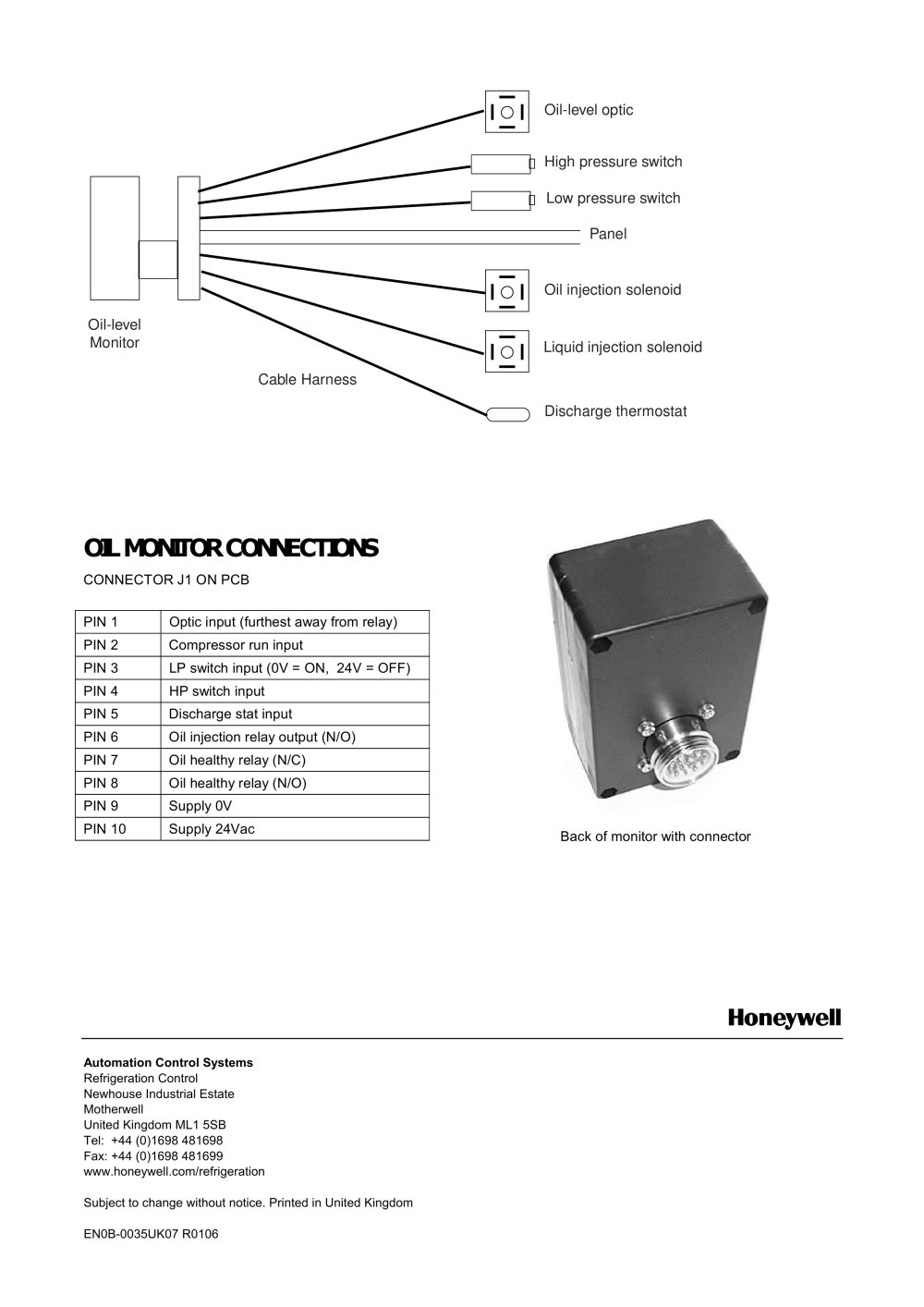

OIL MONITOR CONNECTIONS

CONNECTOR J1 ON PCB


	PIN 1	Optic input (furthest away from relay)
	PIN 2	Compressor run input
	PIN 3	LP switch input (0V = ON, 24V = OFF)
	PIN 4	HP switch input
	PIN 5	Discharge stat input
	PIN 6	Oil injection relay output (N/O)
	PIN 7	Oil healthy relay (N/C)
	PIN 8	Oil healthy relay (N/O)
	PIN 9	Supply 0V
	PIN 10	Supply 24Vac

Back of monitor with connector

Honeywell

Automation Control Systems

Refrigeration Control Newhouse Industrial Estate Motherwell

United Kingdom ML1 5SB Tel: +44 (0)1698 481698

Fax: +44 (0)1698 481699

www.honeywell.com/refrigeration

Subject to change without notice. Printed in United Kingdom

EN0B-0035UK07 R0106
