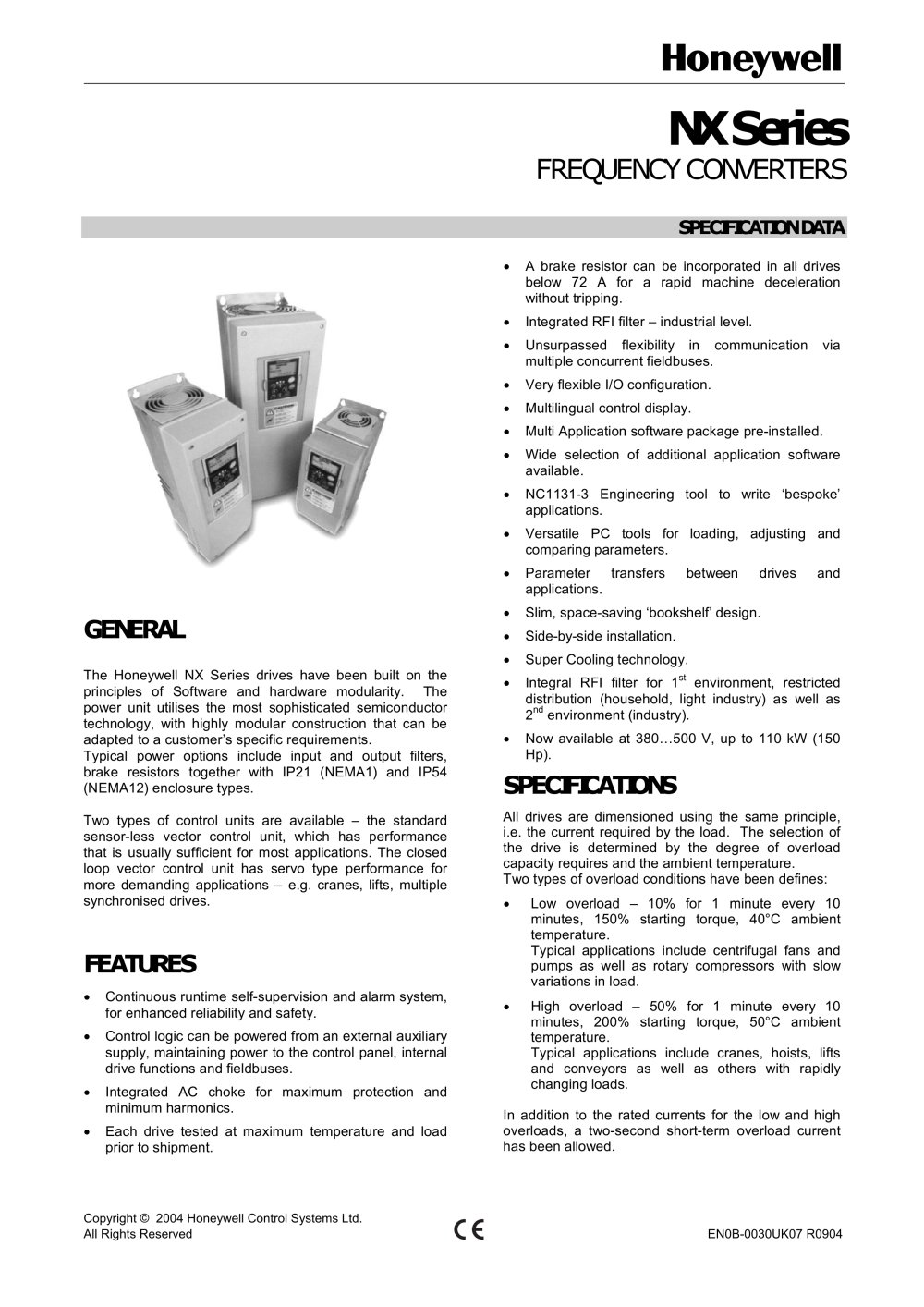

NX Inverter Datasheet
4Pages

A brake resistor can be incorporated in all drives below 72 A for a rapid machine deceleration without tripping. > Integrated RFI filter industrial level. Unsurpassed flexibility in communication via multiple concurrent fieldbuses. Very flexible I/O configuration. Multilingual control display. Multi Application software package pre-installed. Wide selection of additional application software available. NC1131-3 Engineering tool to write ֑bespoke applications. Versatile PC tools for loading, adjusting and comparing parameters. Parameter transfers between drives and applications. Slim, space-saving ґbookshelf design. > Side-by-side installation. Super Cooling technology. The Honeywell NX Series drives have been built on the principles of Software and hardware modularity. The power unit utilises the most sophisticated semiconductor technology, with highly modular construction that can be adapted to a customerҒs specific requirements. Typical power options include input and output filters, brake resistors together with IP21 (NEMA1) and IP54 (NEMA12) enclosure types. Two types of control units are available the standard sensor-less vector control unit, which has performance that is usually sufficient for most applications. The closed loop vector control unit has servo type performance for more demanding applications ֖ e.g. cranes, lifts, multiple synchronised drives. Integral RFI filter for 1 > st environment, restricted distribution (household, light industry) as well as 2 > nd environment (industry). Now available at 380500 V, up to 110 kW (150 Hp). > All drives are dimensioned using the same principle, i.e. the current required by the load. The selection of the drive is determined by the degree of overload capacity requires and the ambient temperature. Two types of overload conditions have been defines: Low overload Ŗ 10% for 1 minute every 10 minutes, 150% starting torque, 40C ambient temperature. Typical applications include centrifugal fans and pumps as well as rotary compressors with slow variations in load. High overload Ж 50% for 1 minute every 10 minutes, 200% starting torque, 50C ambient temperature. Typical applications include cranes, hoists, lifts and conveyors as well as others with rapidly changing loads. In addition to the rated currents for the low and high overloads, a two-second short-term overload current has been allowed. > Continuous runtime self-supervision and alarm system, for enhanced reliability and safety. Control logic can be powered from an external auxiliary supply, maintaining power to the control panel, internal drive functions and fieldbuses. Integrated AC choke for maximum protection and minimum harmonics. Each drive tested at maximum temperature and load prior to shipment. > Copyright Щ 2004 Honeywell Control Systems Ltd. All Rights Reserved EN0B-0030UK07 R0904 size="-1">

Product Type NX Series Frequency Converters Protective Functions Mains Input Connection Over-currentProtection Instantaneous trip limit 2 x IH RMS current Input Voltage 200 240 V, 380 ֖ 500 V, 525 690 V -15% to +10% Over-voltageProtection Trip limit 1.35 x Un InputFrequency 45 to 66 Hz Under-voltageProtection Trip limit 0.65 x Un Connection to the Mains Once per minute. Earth-faultProtection Protects the drive from an earth-fault in the output (motor or motor cable). IE > 20% x IN. AuxiliaryVoltage Control logic can be powered from an external auxiliary supply, maintaining power to the...

Compressors Noise Immunity Complies with EN50082-1, -2, EN61800-3 Fans Emissions Coded series complies with EN61800-3, 1 Pumps > st environment restricted distribution, and 2nd environment restricted distribution. With external filter complies with EN61800-3, 1 > st environment unrestricted distribution requirements. Safety Fulfills EN50178, EN60204-1, CE, UL, C-UL, (CSA) FI, GOST R (check the rating plate for specified approvals for each rating). > Part Number Selection Criteria NXS 0022 V 3 5 A 2 H 1 CE Rating Yes Product NXL - Compact Drive Series: NXP - Industrial Drive NXS -...
