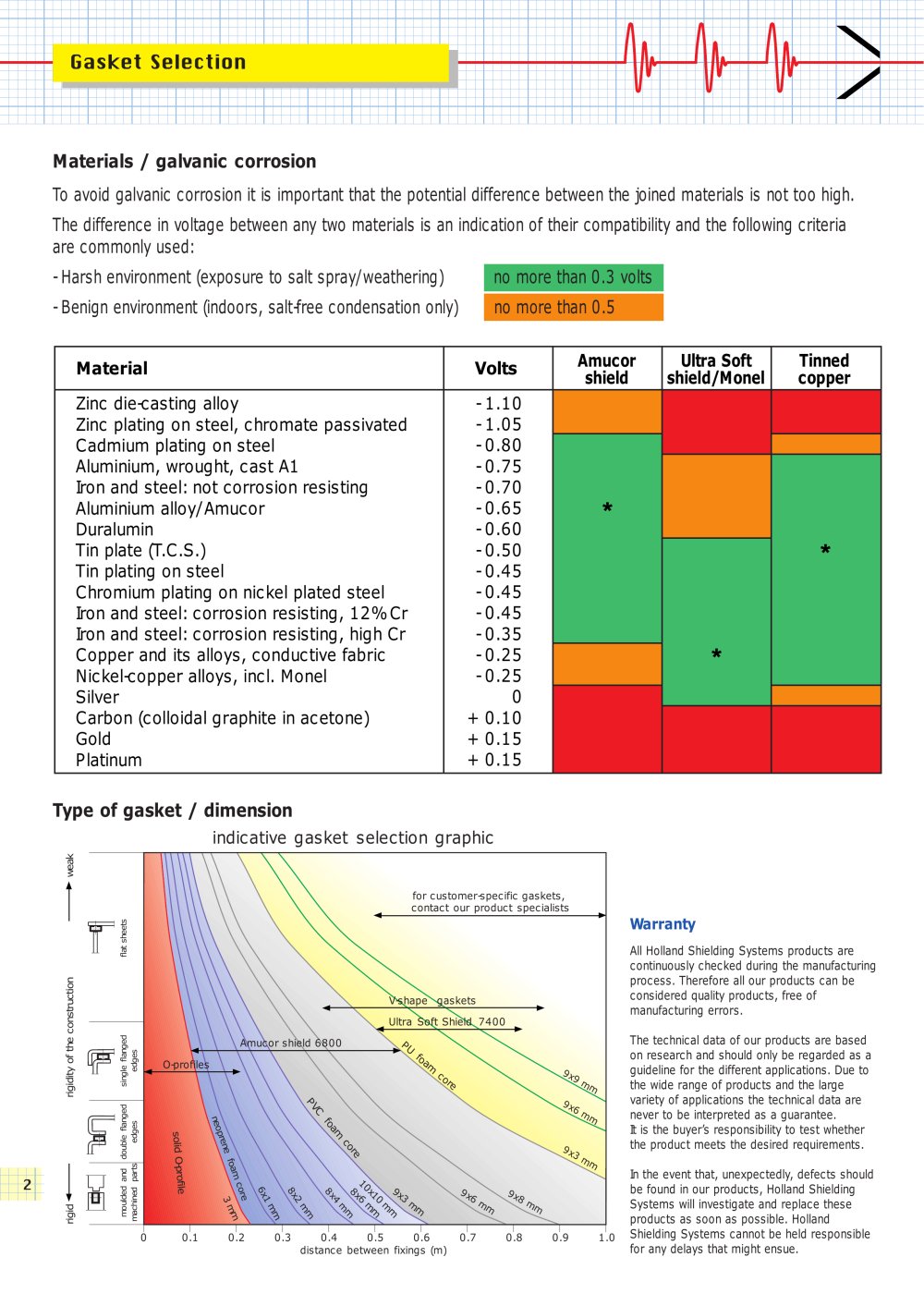

- Gasket Selection J-'jjlf-i^f-iy|f-

Materials / galvanic corrosion

To avoid galvanic corrosion it is importarli that the potential difference between the joined materials is not too high. The difference in voltage between any two materials is an indication of their compatibility and the following criteria are commonly used:

- Harsh environment (exposure to salt spray/weathering) no more than 0.3 volts

- Benign environment (indoors, salt-free condensation only) no more than 0.5


Material	Volts	Amucor shield	Ultra Soft shield/ Monel	Tinned copper
Zinc die-casting alloy	-1.10
Zinc plating on steel, chromate passivated	-1.05
Cadmium plating on steel	-0.80
Aluminium, wrought, cast A1	-0.75
Iron and steel: not corrosion resisting	-0.70
Aluminium alloy/ Amucor	-0.65	*
Duralumin	-0.60
Tin plate (T.C.S.}	-0.50			*
Tin plating on steel	-0.45
Chromium plating on nickel plated steel	-0.45
Iron and steel: corrosion resisting, 12%Cr	-0.45
Iron and steel: corrosion resisting, high Or	-0.35
Copper and its alloys, conductive fabric	-0.25		*
Nickel-copper alloys, incl. Ivtanel	-0.25
Slver	0 I
Carbon (colloidal graphite in acetone)	+ 0.10 1
Gold	+ 0.15 1
Platinum	+ 0.15 1

Type of gasket / dimension

indicative gasket selection graphic

03 o.4 0.5 0.6 0.7 0.8 0.9 T.O Shieldraj Sysl s'Ti:; :;rnr.:;l im >i(;ld ri»;:;;;r-;;i!;l;;

distance between tilings (m) for any delays thai might ensue.
