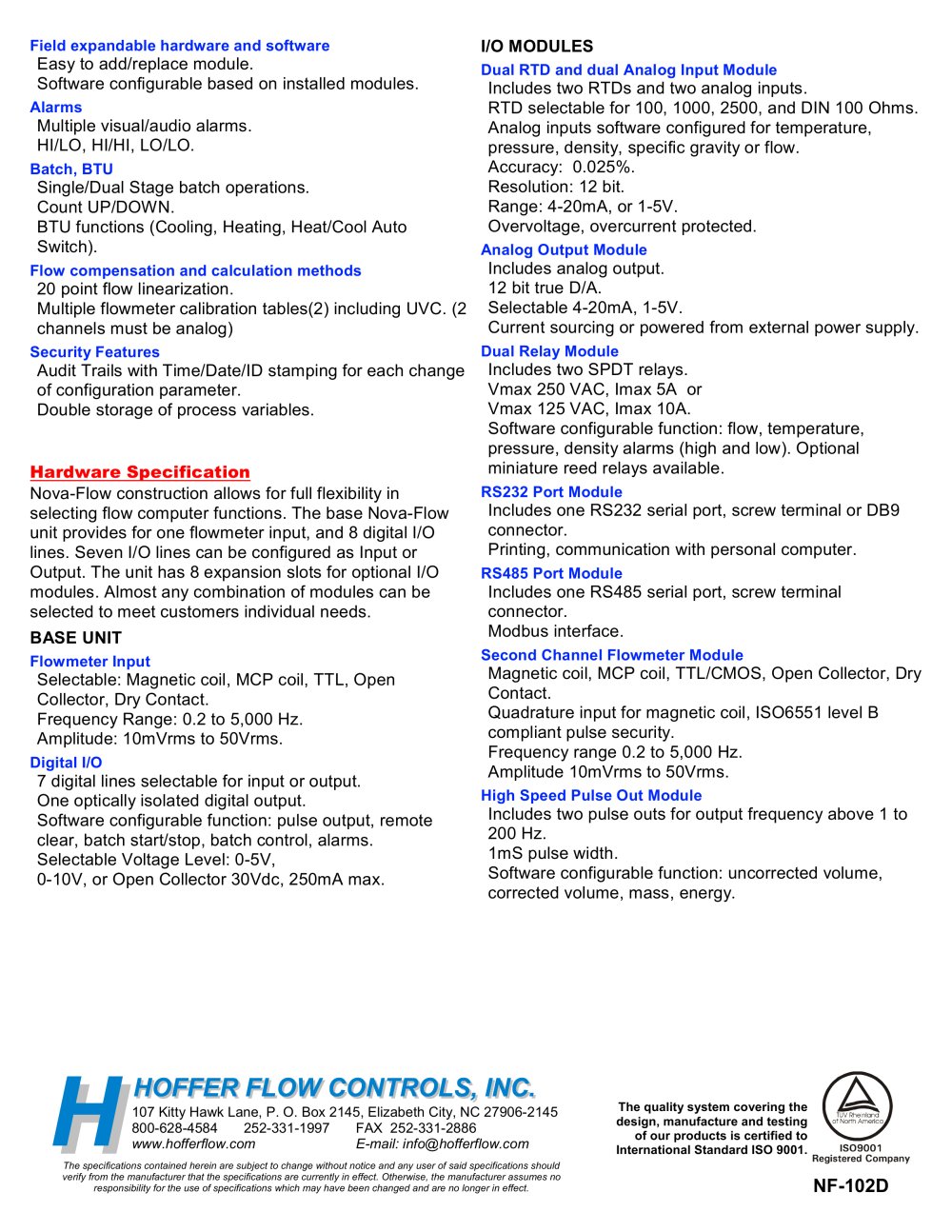

Field expandable hardware and software Easy to add/replace module. Software configurable based on installed modules.
Dual RTD and dual Analog Input Module Includes two RTDs and two analog inputs. RTD selectable for 100, 1000, 2500, and DIN 100 Ohms. Analog inputs software configured for temperature, pressure, density, specific gravity or flow. Accuracy: 0.025%. Resolution: 12 bit. Range: 4-20mA, or 1-5V. Overvoltage, overcurrent protected.
Alarms Multiple visual/audio alarms. HI/LO, HI/HI, LO/LO.
Batch, BTU Single/Dual Stage batch operations. Count UP/DOWN. BTU functions (Cooling, Heating, Heat/Cool Auto Switch).
Analog Output Module Flow compensation and calculation methods Includes analog output. 12 bit true D/A. Selectable 4-20mA, 1-5V. Current sourcing or powered from external power supply. 20 point flow linearization. Multiple flowmeter calibration tables(2) including UVC. (2 channels must be analog)
Security Features Dual Relay Module Audit Trails with Time/Date/ID stamping for each change of configuration parameter. Double storage of process variables. Includes two SPDT relays. Vmax 250 VAC, Imax 5A or Vmax 125 VAC, Imax 10A. Software configurable function: flow, temperature, pressure, density alarms (high and low). Optional miniature reed relays available. Hardware Specification Nova-Flow construction allows for full flexibility in selecting flow computer functions. The base Nova-Flow unit provides for one flowmeter input, and 8 digital I/O lines. Seven I/O lines can be configured as Input or Output. The unit has 8 expansion slots for optional I/O modules. Almost any combination of modules can be selected to meet customers individual needs.
RS232 Port Module BASE UNIT Includes one RS232 serial port, screw terminal or DB9 connector. Printing, communication with personal computer.
RS485 Port Module Includes one RS485 serial port, screw terminal connector. Modbus interface.
Flowmeter Input Second Channel Flowmeter Module Magnetic coil, MCP coil, TTL/CMOS, Open Collector, Dry Contact. Quadrature input for magnetic coil, ISO6551 level B compliant pulse security. Frequency range 0.2 to 5,000 Hz. Amplitude 10mVrms to 50Vrms. I/O MODULES Selectable: Magnetic coil, MCP coil, TTL, Open Collector, Dry Contact. Frequency Range: 0.2 to 5,000 Hz. Amplitude: 10mVrms to 50Vrms.
Digital I/O 7 digital lines selectable for input or output. One optically isolated digital output. Software configurable function: pulse output, remote clear, batch start/stop, batch control, alarms. Selectable Voltage Level: 0-5V, 0-10V, or Open Collector 30Vdc, 250mA max.
High Speed Pulse Out Module Includes two pulse outs for output frequency above 1 to 200 Hz. 1mS pulse width. Software configurable function: uncorrected volume, corrected volume, mass, energy.
107 Kitty Hawk Lane, P. O. Box 2145, Elizabeth City, NC 27906-2145 800-628-4584 252-331-1997 FAX 252-331-2886 The quality system covering the design, manufacture and testing of our products is certified to International Standard ISO 9001. www.hofferflow.com E-mail: info@hofferflow.com The specifications contained herein are subject to change without notice and any user of said specifications should verify from the manufacturer that the specifications are currently in effect. Otherwise, the manufacturer assumes no responsibility for the use of specifications which may have been changed and are no longer in effect.
Dual RTD and dual Analog Input Module Includes two RTDs and two analog inputs. RTD selectable for 100, 1000, 2500, and DIN 100 Ohms. Analog inputs software configured for temperature, pressure, density, specific gravity or flow. Accuracy: 0.025%. Resolution: 12 bit. Range: 4-20mA, or 1-5V. Overvoltage, overcurrent protected.
Alarms Multiple visual/audio alarms. HI/LO, HI/HI, LO/LO.
Batch, BTU Single/Dual Stage batch operations. Count UP/DOWN. BTU functions (Cooling, Heating, Heat/Cool Auto Switch).
Analog Output Module Flow compensation and calculation methods Includes analog output. 12 bit true D/A. Selectable 4-20mA, 1-5V. Current sourcing or powered from external power supply. 20 point flow linearization. Multiple flowmeter calibration tables(2) including UVC. (2 channels must be analog)
Security Features Dual Relay Module Audit Trails with Time/Date/ID stamping for each change of configuration parameter. Double storage of process variables. Includes two SPDT relays. Vmax 250 VAC, Imax 5A or Vmax 125 VAC, Imax 10A. Software configurable function: flow, temperature, pressure, density alarms (high and low). Optional miniature reed relays available. Hardware Specification Nova-Flow construction allows for full flexibility in selecting flow computer functions. The base Nova-Flow unit provides for one flowmeter input, and 8 digital I/O lines. Seven I/O lines can be configured as Input or Output. The unit has 8 expansion slots for optional I/O modules. Almost any combination of modules can be selected to meet customers individual needs.
RS232 Port Module BASE UNIT Includes one RS232 serial port, screw terminal or DB9 connector. Printing, communication with personal computer.
RS485 Port Module Includes one RS485 serial port, screw terminal connector. Modbus interface.
Flowmeter Input Second Channel Flowmeter Module Magnetic coil, MCP coil, TTL/CMOS, Open Collector, Dry Contact. Quadrature input for magnetic coil, ISO6551 level B compliant pulse security. Frequency range 0.2 to 5,000 Hz. Amplitude 10mVrms to 50Vrms. I/O MODULES Selectable: Magnetic coil, MCP coil, TTL, Open Collector, Dry Contact. Frequency Range: 0.2 to 5,000 Hz. Amplitude: 10mVrms to 50Vrms.
Digital I/O 7 digital lines selectable for input or output. One optically isolated digital output. Software configurable function: pulse output, remote clear, batch start/stop, batch control, alarms. Selectable Voltage Level: 0-5V, 0-10V, or Open Collector 30Vdc, 250mA max.
High Speed Pulse Out Module Includes two pulse outs for output frequency above 1 to 200 Hz. 1mS pulse width. Software configurable function: uncorrected volume, corrected volume, mass, energy.
107 Kitty Hawk Lane, P. O. Box 2145, Elizabeth City, NC 27906-2145 800-628-4584 252-331-1997 FAX 252-331-2886 The quality system covering the design, manufacture and testing of our products is certified to International Standard ISO 9001. www.hofferflow.com E-mail: info@hofferflow.com The specifications contained herein are subject to change without notice and any user of said specifications should verify from the manufacturer that the specifications are currently in effect. Otherwise, the manufacturer assumes no responsibility for the use of specifications which may have been changed and are no longer in effect.
