Input Circuits41 HP289

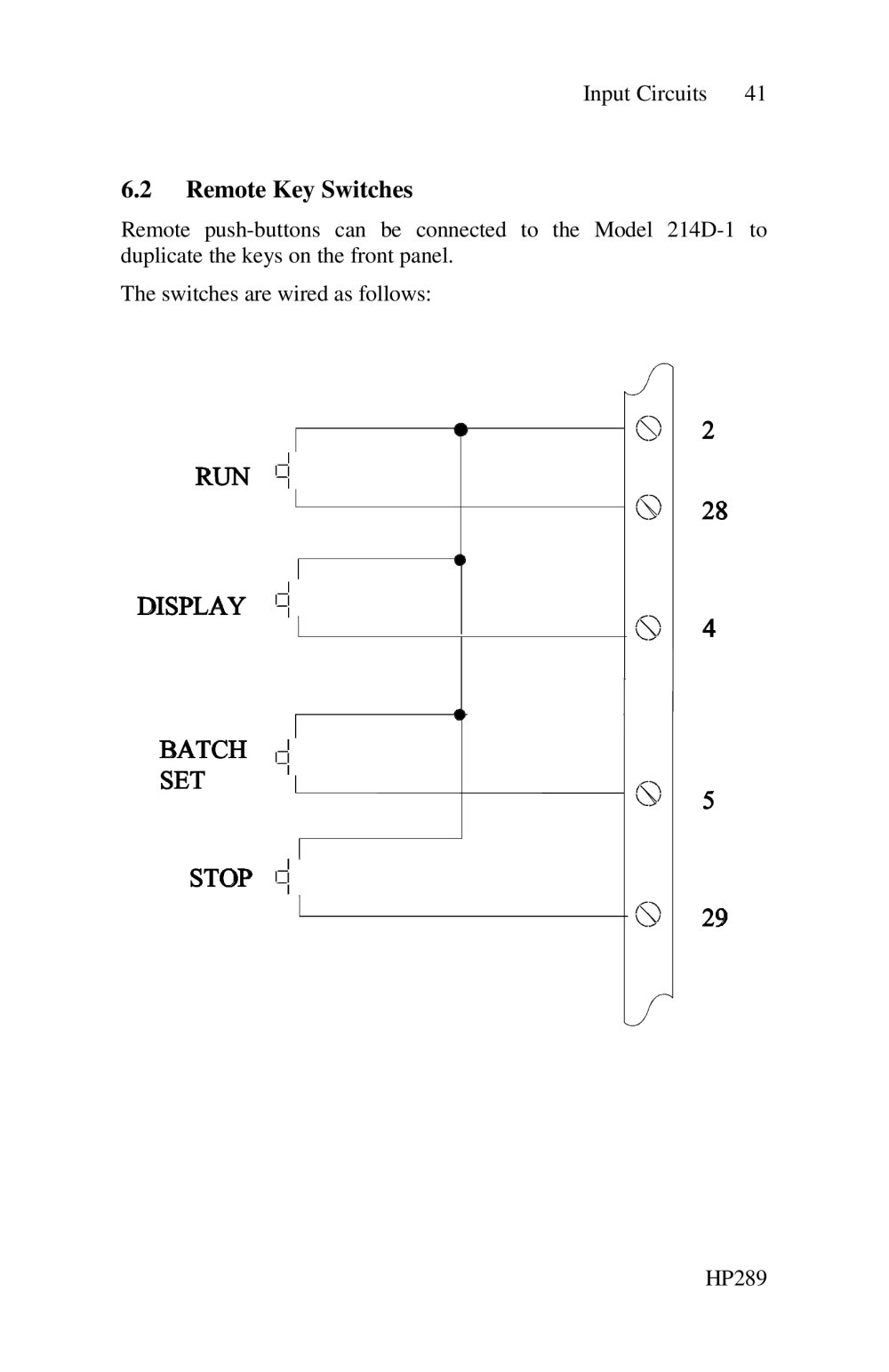

Model 214D-1 Batch Controller - 9075 6.2Remote Key Switches

Remotepush-buttons can be connected to the Model 214D-1 toduplicate the keys on the front panel.The switches are wired as follows:
