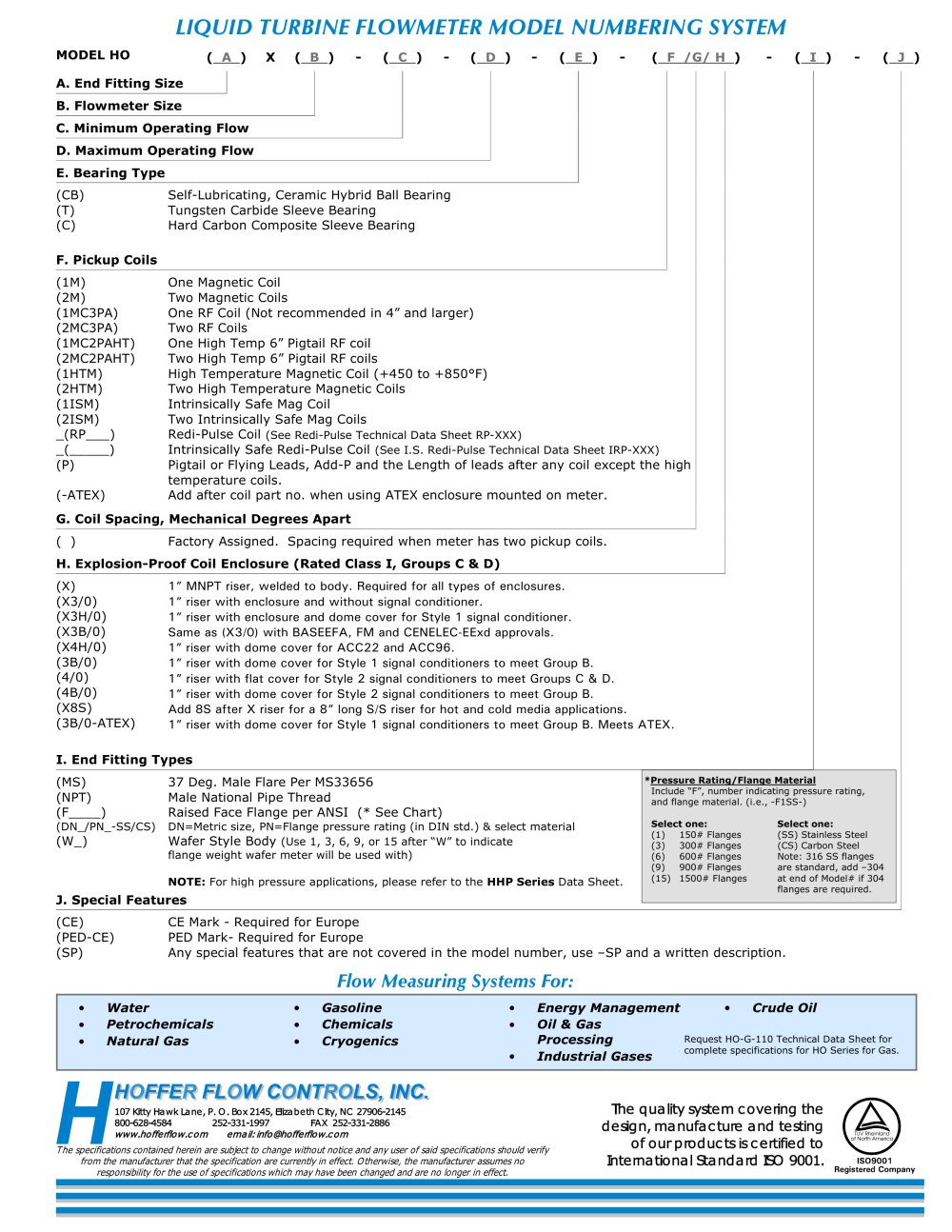

LIQUID TURBINE FLOWMETER MODEL NUMBERING SYSTEM

MODEL HO ( A ) X ( B ) - ( C ) - ( D ) - ( E ) - ( F /G/ H ) - ( I ) - ( J ) A. End Fitting Size B. Flowmeter Size C. Minimum Operating Flow D. Maximum Operating Flow E. Bearing Type (CB) (T) (C) Self-Lubricating, Ceramic Hybrid Ball Bearing Tungsten Carbide Sleeve Bearing Hard Carbon Composite Sleeve Bearing F. Pickup Coils (1M) (2M) (1MC3PA) (2MC3PA) (1MC2PAHT) (2MC2PAHT) (1HTM) (2HTM) (1ISM) (2ISM) _(RP___) _(_____) (P) (-ATEX) One Magnetic Coil Two Magnetic Coils One RF Coil (Not recommended in 4” and larger) Two RF Coils One High Temp 6” Pigtail RF coil Two High Temp 6” Pigtail RF coils High Temperature Magnetic Coil (+450 to +850°F) Two High Temperature Magnetic Coils Intrinsically Safe Mag Coil Two Intrinsically Safe Mag Coils Redi-Pulse Coil
(See Redi-Pulse Technical Data Sheet RP-XXX) Intrinsically Safe Redi-Pulse Coil
(See I.S. Redi-Pulse Technical Data Sheet IRP-XXX) Pigtail or Flying Leads, Add-P and the Length of leads after any coil except the high temperature coils. Add after coil part no. when using ATEX enclosure mounted on meter. G. Coil Spacing, Mechanical Degrees Apart ( ) Factory Assigned. Spacing required when meter has two pickup coils. H. Explosion-Proof Coil Enclosure (Rated Class I, Groups C & D) (X) (X3/0) (X3H/0) (X3B/0) (X4H/0) (3B/0) (4/0) (4B/0) (X8S) (3B/0-ATEX) 1” MNPT riser, welded to body. Required for all types of enclosures. 1” riser with enclosure and without signal conditioner. 1” riser with enclosure and dome cover for Style 1 signal conditioner. Same as (X3/0) with BASEEFA, FM and CENELEC-EExd approvals. 1” riser with dome cover for ACC22 and ACC96. 1” riser with dome cover for Style 1 signal conditioners to meet Group B. 1” riser with flat cover for Style 2 signal conditioners to meet Groups C & D. 1” riser with dome cover for Style 2 signal conditioners to meet Group B. Add 8S after X riser for a 8” long S/S riser for hot and cold media applications. 1” riser with dome cover for Style 1 signal conditioners to meet Group B. Meets ATEX. I. End Fitting Types (MS) (NPT) (F____) 37 Deg. Male Flare Per MS33656 Male National Pipe Thread Raised Face Flange per ANSI (* See Chart)
*Pressure Rating/Flange Material Include “F”, number indicating pressure rating, and flange material. (i.e., -F1SS-) (DN_/PN_-SS/CS) DN=Metric size, PN=Flange pressure rating (in DIN std.) & select material Select one: Select one: (W_) Wafer Style Body
(Use 1, 3, 6, 9, or 15 after “W” to indicate flange weight wafer meter will be used with) (1) 150# Flanges (SS) Stainless Steel (3) 300# Flanges (CS) Carbon Steel (6) 600# Flanges Note: 316 SS flanges (9) 900# Flanges are standard, add –304 (15) 1500# Flanges at end of Model# if 304 flanges are required. NOTE: For high pressure applications, please refer to the HHP Series Data Sheet. J. Special Features (CE) (PED-CE) (SP) CE Mark - Required for Europe PED Mark- Required for Europe Any special features that are not covered in the model number, use –SP and a written description.

Flow Measuring Systems For:

? Water ? Gasoline ? Energy Management ? Crude Oil ? Petrochemicals ? Chemicals ? Oil & Gas Processing ? Natural Gas ? Cryogenics
Request HO-G-110 Technical Data Sheet for complete specifications for HO Series for Gas. ? Industrial Gases
