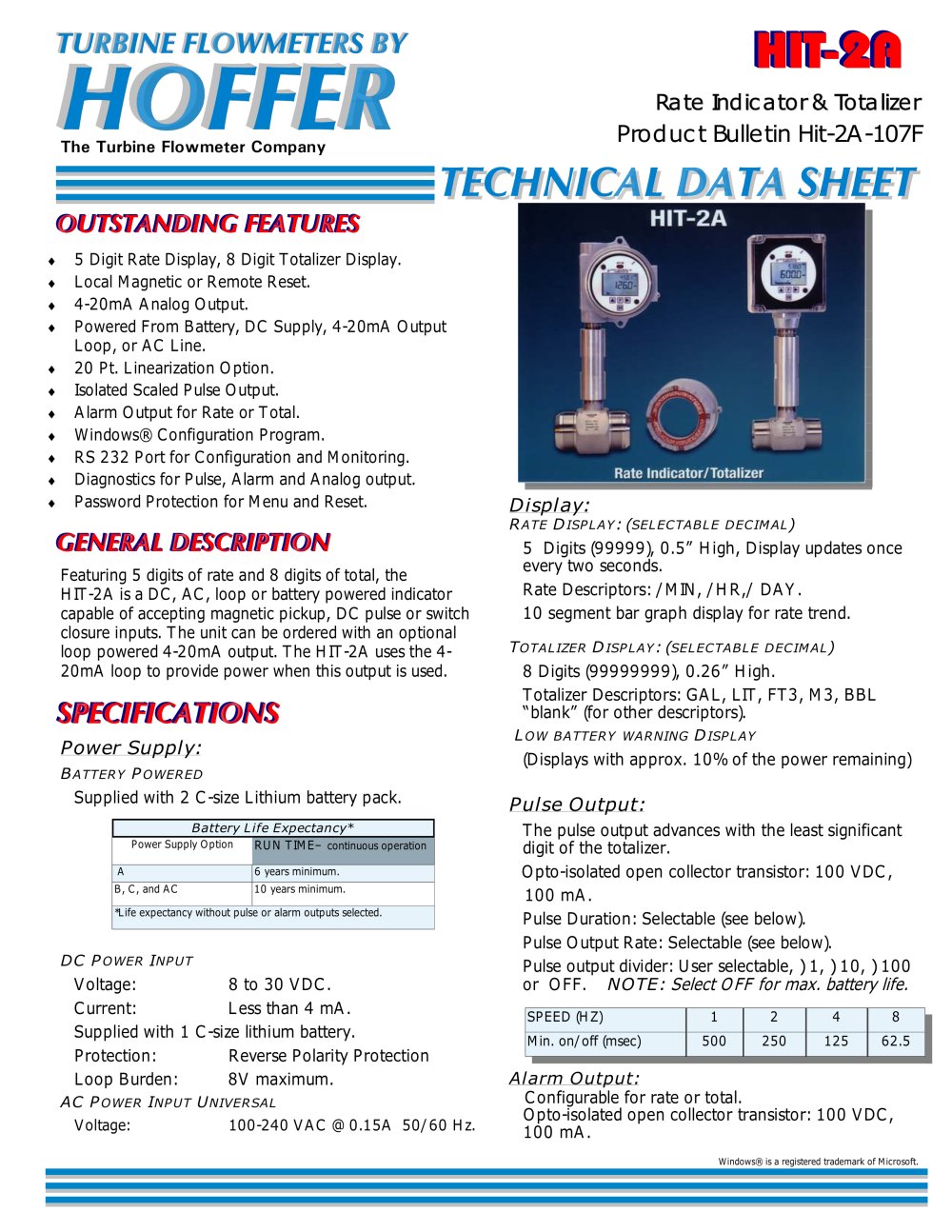

Rate Indicator & Totalizer

The Turbine Flowmeter Company

Product Bulletin Hit-2A-107F

♦

5 Digit Rate Display, 8 Digit Totalizer Display.

♦

Local Magnetic or Remote Reset.

♦

4-20mA Analog Output.

♦

Powered From Battery, DC Supply, 4-20mA Output Loop, or AC Line.

♦

20 Pt. Linearization Option.

♦

Isolated Scaled Pulse Output.

♦

Alarm Output for Rate or Total.

♦

Windows® Configuration Program.

♦

RS 232 Port for Configuration and Monitoring.

♦

Diagnostics for Pulse, Alarm and Analog output.

♦

Password Protection for Menu and Reset.

Display:

R

ATE

D

ISPLAY

: (

SELECTABLEDECIMAL

)

5 Digits (99999), 0.5” High, Display updates once every two seconds. Rate Descriptors: /MIN, /HR,/ DAY. 10 segment bar graph display for rate trend.

Featuring 5 digits of rate and 8 digits of total, the HIT-2A is a DC, AC, loop or battery powered indicator capable of accepting magnetic pickup, DC pulse or switch closure inputs. The unit can be ordered with an optional loop powered 4-20mA output. The HIT-2A uses the 4-20mA loop to provide power when this output is used.

T

OTALIZER

D

ISPLAY

: (

SELECTABLEDECIMAL

)

8 Digits (99999999), 0.26” High. Totalizer Descriptors: GAL, LIT, FT3, M3, BBL “blank” (for other descriptors).

Power Supply:

L

OWBATTERYWARNING

D

ISPLAY

(Displays with approx. 10% of the power remaining)

B

ATTERY

P

OWERED

Supplied with 2 C-size Lithium battery pack.

Pulse Output:

Battery Life Expectancy* Power Supply Option

The pulse output advances with the least significant digit of the totalizer. Opto-isolated open collector transistor: 100 VDC, 100 mA. Pulse Duration: Selectable (see below). Pulse Output Rate: Selectable (see below). Pulse output divider: User selectable,

RUN TIME– continuous operation A 6 years minimum. B, C, and AC 10 years minimum. *Life expectancy without pulse or alarm outputs selected.

•? 1, ?? 10, ?? 100 or OFF. NOTE:

DC P

OWER

I

NPUT

Voltage: 8 to 30 VDC. Current: Less than 4 mA. Supplied with 1 C-size lithium battery. Protection: Reverse Polarity Protection Loop Burden: 8V maximum. Select OFF for max. battery life.

SPEED (HZ) 1 2 4 8 Min. on/off (msec) 500 250 125 62.5

Alarm Output:

AC P

OWER

I

NPUT

U

NIVERSAL

Configurable for rate or total. Opto-isolated open collector transistor: 100 VDC, 100 mA.

Voltage: 100-240 VAC @ 0.15A 50/60 Hz.

Windows® is a registered trademark of Microsoft.
