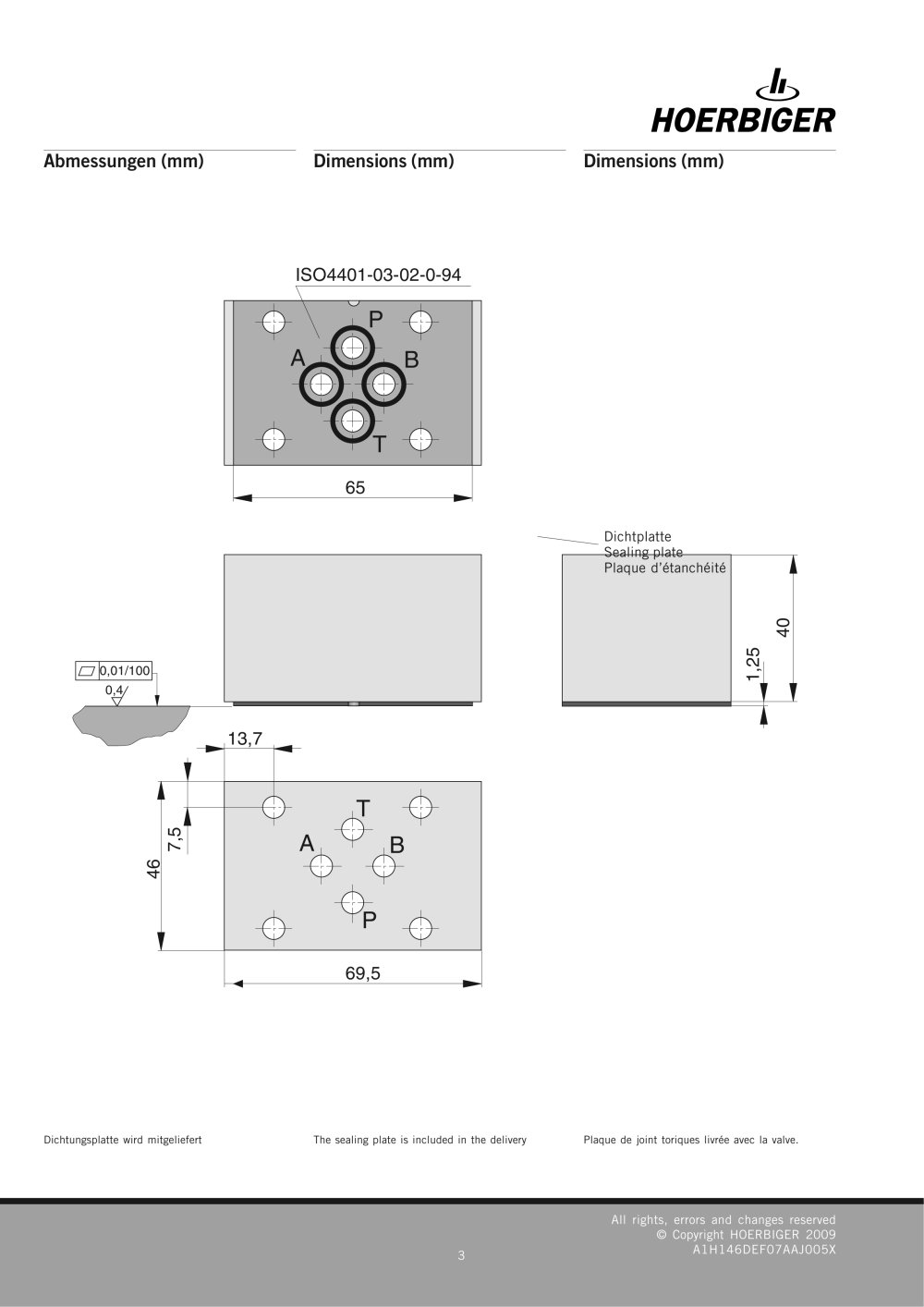

Abmessungen (mm) Dimensions (mm) Dimensions (mm)

ISO4401-03-02-0-94

TBPA TBPA

65

DichtplatteSealing plate Plaque d’étanchéité

40

0,01/100

1,25

0,4

13,7

7,5 46

69,5

Dichtungsplatte wird mitgeliefertThe sealing plate is included in the deliveryPlaque de joint toriques livrée avec la valve.
