HIRSCHMANN provides perfected, well engineered solu-tions with intelligent modular

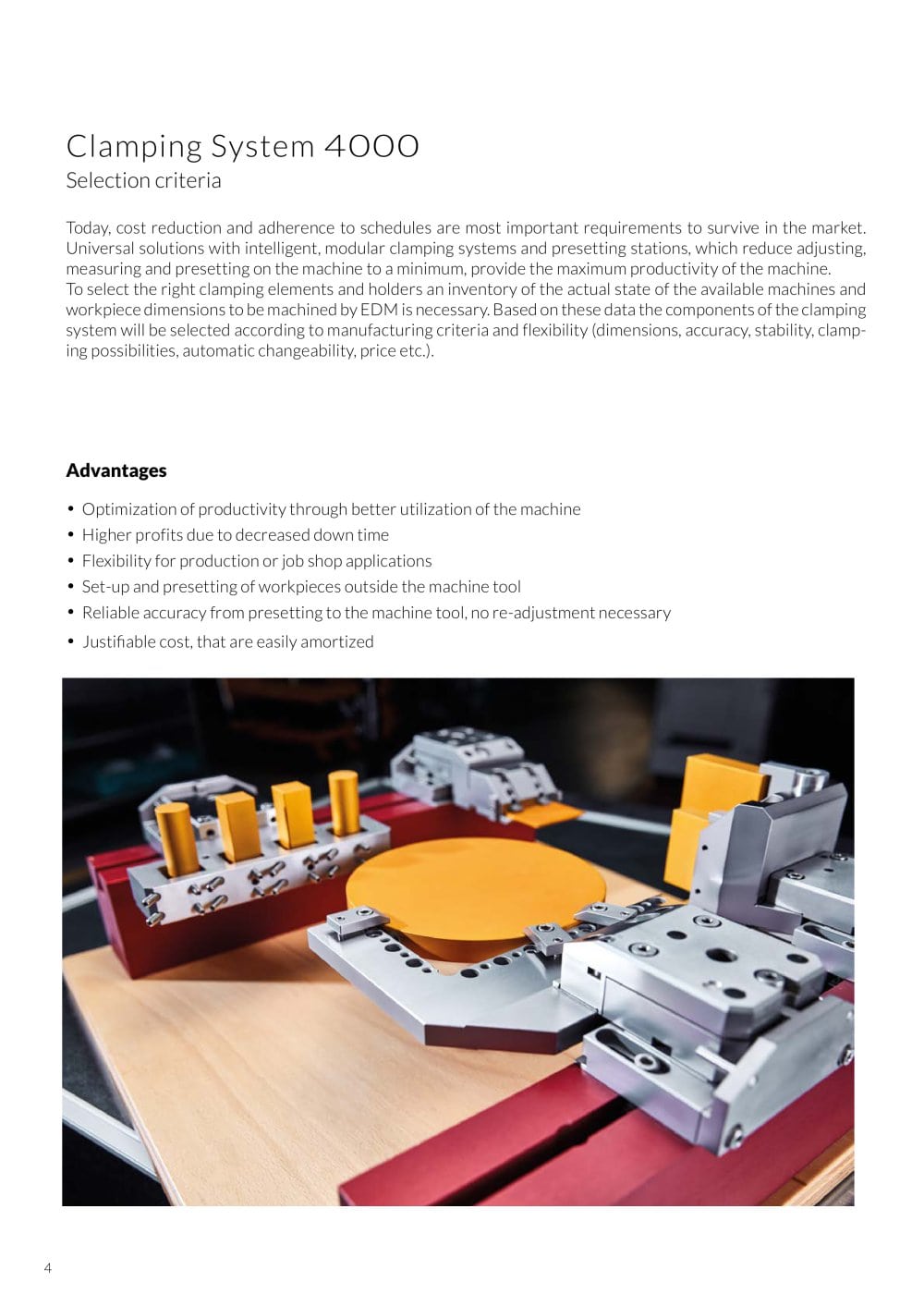

Fixturing System 4000 for Wire EDM - 16419 Introduction

Fixturing Systems, preset-ting stations and automated robotic loading devices, re-ducing set-up, measuring and presetting on the machine to a minimum and reaching maximal efficiency of the ma- chine.In a modern fabrication machine down-times, for examplewhile setting-up the machine tool, unnecessarily block production time and must be reduced to a minimum.

Fixturing system 4000 for wire EDM

To compete in a global market, every effort must be madeto utilize the full potential of today’s “State of the Art” production systems. When manually clamping workpieces in the machine tool without the use of a quick changing system, valuable machine uptime is wasted eroding profi- tability. Presetting the workpieces outside the machine tool allows fast load & unload times allowing maximum productivity in the machine tool. Advantages of HIRSCHMANN Fixturing System 4000 • Optimized productivity through better utilization of themachine• Higher profits due to decreased down time • Flexibility for production or job shop applications • Set-up and presetting of workpieces outside themachine tool • Reliable accuracy from presetting to the machine tool,no re-adjustment necessary • Justifiable cost that are easily amortized
4
