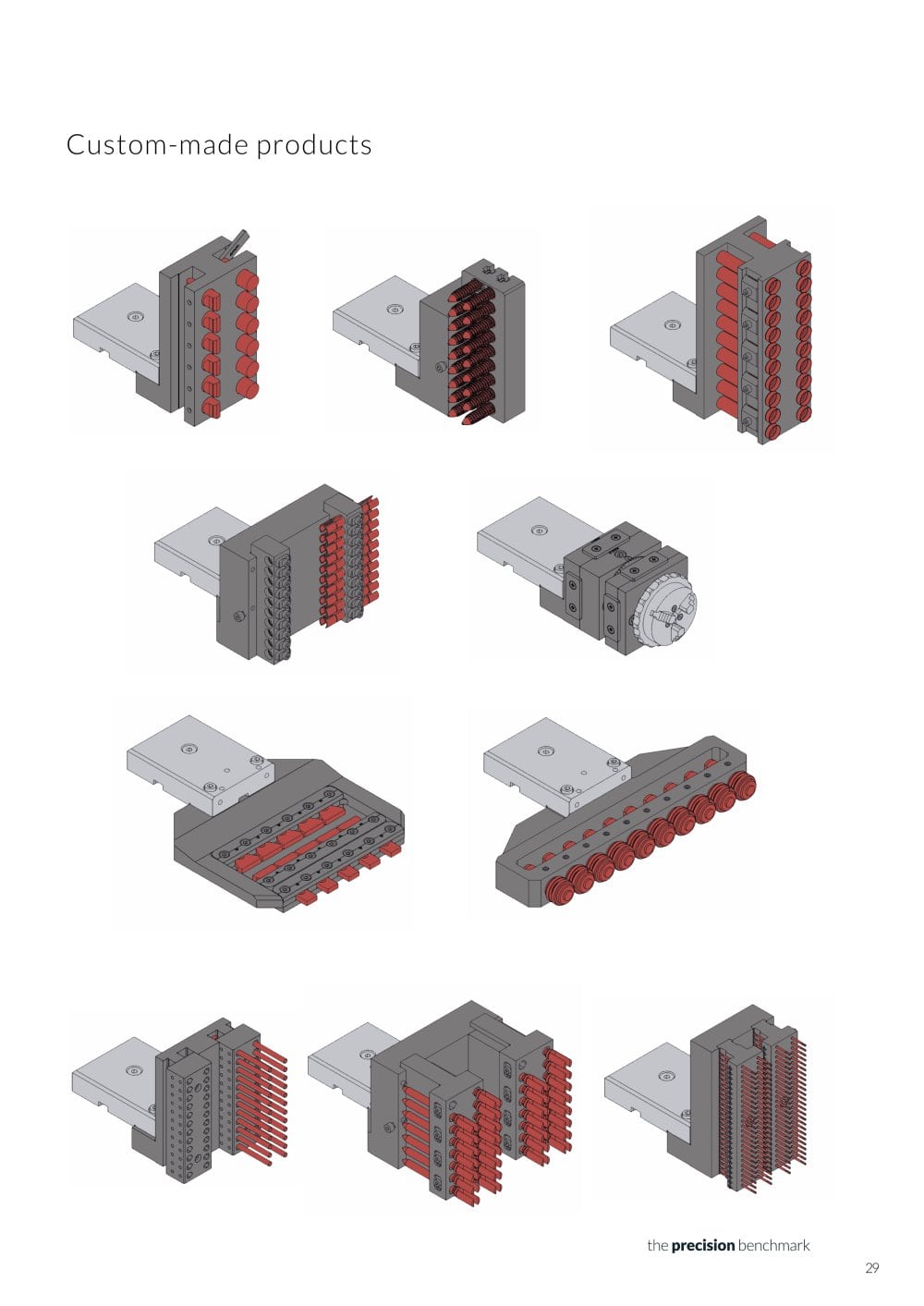

H 4203 Reference Pallet

For determining the central position of the Pallet ClamperH 4202 and of A-Axis H 80R.NC.

H 4206 Shaft Clamping Chuck

For mounting and precise indexing and clamping of the electrode shafts of Fixturing System 5000.The chuck fits, like all other pallets and electrode hol-ders of System 5000, to Pallet Clamper H 4202. Weight 2 kg (4.4 lbs)

H 5.50 R Pallet

Rust-proof pallet 50 x 50 mm (1.97 x1.97 ) for clampingelectrodes and workpieces.Without clamping journal, please order separately.

H 8.88R

Rust-proof pallet 88 x 88 mm (3.46x3.46 ), withoutclamping journal.

H 5.611 R Clamping Journal with H 5.611.1 R Centering Bush H 6.611 R Stainless Clamping Journal forH 8.88.4000 Adapter for System 5000 6000 Clampers

For mounting pallets of Fixturing System 4000 to Clam-pers H 8.811, H 8.812 etc. of Fixturing System 5000.

H 4246 MINIFIX Holder

For direct mounting of MINIFIX- and MINIFIXplus elec- trodes of System 5000 on a Wire EDM. The holder fits on Pallets H 4005, H 4100 and H 4110,but can also be attached to the Vertical Unit H 4410 and the Swivelling Unit H 4415. Weight 1 kg, (2.2 lbs)
at Pallet H 4005 or H 4105Example for use atVertical Unit H 4410 29
